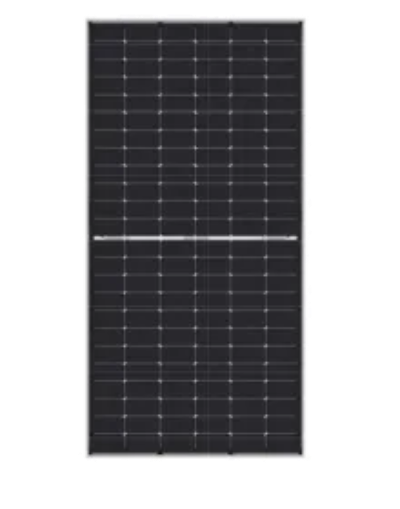

Axitec 580W AXIbiperfect GXXL TS N-Type TOPCon Bifacial Solar Panel AC-580TGB/144TS
MPN No: AC-580TGB/144TS
Contact us for Delivery Date
Out Of Stock
$240.99
Axitec 580W AXIbiperfect GXXL TS N-Type TOPCon Bifacial Solar Panel AC-580TGB/144TS
Axitec 580W AXIbiperfect GXXL TS N-Type TOPCon Bifacial Solar Panel AC-580TGB/144TS
Regular price
$240.99
$0.41/watt
SOLD OUT
Axitec 580W AXIbiperfect GXXL TS N-Type TOPCon Bifacial Solar Panel AC-580TGB/144TS
Axitec 580W AXIbiperfect GXXL TS N-Type TOPCon Bifacial Solar Panel AC-580TGB/144TS
Out Of Stock
MPN No: AC-580TGB/144TS
Regular price
$240.99
$0.41/watt
Ships from U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$240.99
Axitec 580W AXIbiperfect GXXL TS N-Type TOPCon Bifacial Solar Panel AC-580TGB/144TS
Engineered in Germany
The AXITEC AC-580TGB/144TS is a high-performance N-type TOPCon bifacial solar module from the AXIbiperfect GXXL TS series. Engineered for commercial and utility-scale solar installations, this module combines advanced 144 half-cell technology with durable glass-glass construction to deliver exceptional efficiency, reliability, and long-term performance.
The bifacial design allows the module to capture sunlight from both the front and rear surfaces, increasing total energy production depending on installation conditions. With advanced N-type cell technology and reduced degradation rates, the AC-580TGB/144TS provides reliable long-term energy output and strong system performance.
Key Technology
-
N-Type TOPCon Cell Technology
Improves module efficiency, reduces degradation, and increases lifetime energy production compared with conventional P-type modules. -
Bifacial Glass-Glass Construction
Captures reflected light from the rear side of the module to increase total system energy output. -
144 Half-Cell Architecture
Half-cut cell design reduces internal resistance and improves performance under partial shading. -
PID Resistance
Glass-glass module design significantly reduces potential-induced degradation. -
Improved Fire Safety
Enhanced module design improves fire protection and installation safety. -
Positive Power Tolerance
Modules are individually measured to ensure a 0 to +5 W positive power tolerance.
Best Uses
-
Utility-Scale Solar Farms
High module wattage reduces BOS costs and improves energy density. -
Commercial & Industrial Solar Systems
Ideal for large rooftop or ground-mounted solar installations. -
Bifacial Ground-Mount Installations
Rear-side energy generation increases total system production when installed above reflective surfaces. -
High-Durability Solar Projects
Double-glass design improves performance and longevity in harsh environments.
Warranty
- Product Warranty: 30 Years
- Performance Warranty: 30-Year Linear Power Warranty
- First-Year Degradation: ≤1%
- Annual Degradation: ≤0.4% thereafter
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | AXITEC |
| Model | AC-580TGB/144TS |
| Series | AXIbiperfect GXXL TS |
| Cell Technology | N-Type TOPCon Bifacial |
| Cell Configuration | 144 Half Cells |
| Maximum Power (Pmax) | 580 W |
| Module Efficiency | 22.45% |
| Maximum Power Voltage (Vmp) | 43.20 V |
| Maximum Power Current (Imp) | 13.43 A |
| Open Circuit Voltage (Voc) | 51.40 V |
| Short Circuit Current (Isc) | 14.18 A |
| Temperature Coefficient (Pmax) | -0.31 % / K |
| Maximum System Voltage | 1500 V DC |
| Nominal Operating Cell Temperature (NOCT) | 45°C ± 2°C |
| Operating Temperature | -40°C to +85°C |
| Dimensions | 89.7 × 44.6 × 1.18 in |
| Weight | 68.8 lb |
| Front Glass | 2.0 mm hardened low-reflection glass |
| Rear Glass | 2.0 mm hardened glass |
| Frame | 30 mm silver anodized aluminum |
| Junction Box | IP68 rated with 3 bypass diodes |
| Connector | IP68 compatible connector (JM608) |
| Cable | Approx. 1.3 m, 4 mm² cable |
| Design Load | 3600 Pa (front) / 1600 Pa (rear) |
| Test Load | 5400 Pa (front) / 2400 Pa (rear) |
| Packaging | 36 modules per pallet / 720 modules per container |
About AXITEC:
AXITEC is a German solar manufacturer known for producing high-quality photovoltaic modules with strong engineering standards and long-term reliability. Their solar panels are widely deployed in residential, commercial, and utility-scale installations worldwide.
High-Power Bifacial Module for Large Solar Projects
The AXITEC AC-580TGB/144TS combines advanced N-type TOPCon technology, durable glass-glass construction, and bifacial energy generation to deliver reliable, high-efficiency solar performance for commercial and utility-scale photovoltaic systems.
