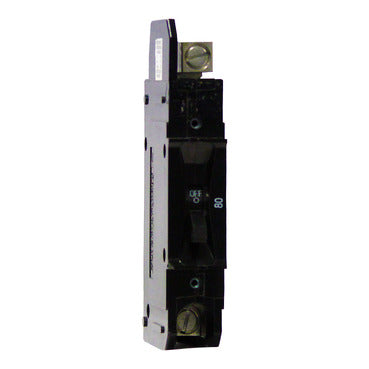

Schneider 80A 125VDC Panel 1-Pole 865DCBRK80 Mount Breaker

The Schneider Electric 865DCBRK80 is an 80A panel-mount DC breaker built for use with Schneider Conext™ SW, XW Pro inverters, and MPPT solar charge controllers. Designed to deliver dependable DC overcurrent protection up to 160 VDC, this UL-listed breaker integrates seamlessly into Schneider and MidNite DC distribution panels. Ideal for off-grid, battery-based, and hybrid solar applications, the 865DCBRK80 helps ensure safe and code-compliant system operation.

Key Benefits

80A DC Protection: Suitable for battery banks, charge controllers, and solar PV DC loads.

Conext System Ready: Fully compatible with Schneider XW, SW, and MPPT 60-150/80-600 controllers.

Panel-Mount Design: Easy to install in MidNite or Schneider DC distribution panels.

Compact & Efficient: Saves space while providing essential circuit protection for renewable energy systems.

UL Listed: Tested and certified for safety in solar and energy storage installations.

Special Technology

Thermal Magnetic Trip Mechanism: Combines overload and short circuit protection for reliable safety.

Manual Reset Lever: Easily reset the breaker after a trip condition with a durable toggle handle.

DC Arc Interruption: Built to interrupt high DC current without welding or contact damage.

Long-Lasting Housing: Thermoplastic construction for corrosion resistance and long service life.

Direct Replacement: Drop-in replacement for existing 80A DC breakers in Schneider systems.

Warranty

The Schneider 865DCBRK80 includes a 1-year limited warranty, covering material and manufacturing defects to ensure long-term reliability in solar energy systems.

Best Use

Battery Bank Protection: Designed to safely interrupt battery current in off-grid or hybrid systems.

MPPT Charge Controller Circuits: Ideal for use with MPPT 60-150 and MPPT 80-600 models.

Solar Power Distribution Panels: Integrates into Schneider or MidNite solar DC breaker boxes.

Specifications Table
