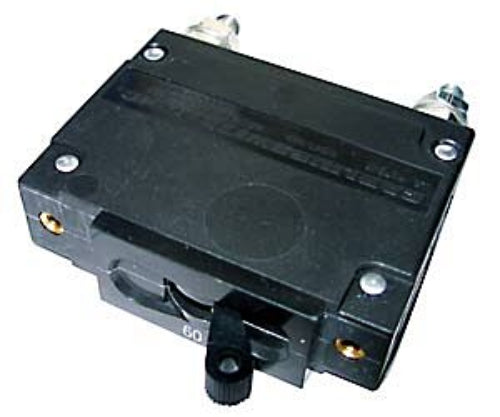

MidNite Solar 70A 150VDC/120VAC MNEDC70 Panel Mount Breaker

Looking for a robust and reliable circuit breaker that can handle higher amperage and voltage in a compact design? The C-Series hydraulic/magnetic circuit breaker is the ideal solution for demanding applications. Available in 1 to 6 poles and ranging from 0.02 to 100 amps, this breaker is UL Recognized up to 480VAC or 150VDC and UL489 Listed up to 240VAC or 125VDC.

Key Benefits:

  • High Amperage and Voltage Handling: Ideal for applications requiring robust power management.
  • Compact Design: Delivers high performance in a smaller footprint.
  • High Interrupting Capacity: UL489 C-Series features a unique arc chute design achieving up to 10,000 amps interrupting capacity.
  • Increased Durability: Thermoset glass filled polyester half shell construction provides superior mechanical and electrical strength.
  • Reliable Contact Performance: Wiping contacts and a mechanical linkage with two-step actuation ensure clean contacts and long contact life.
  • Versatile Configuration: Available in 1-6 poles, with a wide range of current ratings, time delays, and terminal options.
  • Visual Trip Indication: Optional mid-trip handle style offers clear indication of electrical overloads.
  • Enhanced Safety: Optional Rockerguard and Push-To-Reset bezel prevent accidental actuation.
  • Multiple Actuator Options: Choose from solid color rockers or unique two-color Visi-rocker® actuators for ON or TRIPPED/OFF status indication.

Special Technology:

  • Hydraulic/Magnetic Trip Mechanism: Provides accurate and reliable overload protection independent of ambient temperature.
  • Unique Arc Chute Design: Enhances interrupting capacity up to 10,000 amps in UL489 models.
  • Thermoset Glass Filled Polyester Construction: Offers increased mechanical and electrical strength.
  • Two-Step Actuation Mechanical Linkage: Ensures positive contact pressure and extended contact life.
  • Visi-rocker® Actuator Option: Two-color actuator provides clear visual indication of circuit status.

Warranty:

The MNEDC70 Panel Mount Breaker comes with a 5-year limited warranty, covering manufacturer defects in materials and workmanship. Warranty support is valid in the U.S. and Canada.

Best Use:

Ideal for a wide range of applications requiring reliable overcurrent protection, including:

  • Industrial Equipment
  • Power Supplies
  • Marine Applications (UL Standard 1500 Listed options available)
  • HVAC Systems
  • Telecommunications Equipment
  • Transportation
  • Any application requiring high amperage and voltage handling in a compact circuit breaker.

Specifications Table

Specification Data
Model Number MNEDC70
Current Rating 70 Amps
Voltage Rating 125VDC (UL489)
Breaker Type Panel Mount, Single Pole
Trip Technology Hydraulic-Magnetic
Actuator Type Metal Toggle
Trip Curve Medium (Time Delay)
Interrupt Capacity 5,000A @ 125VDC
Mounting Type Front-panel screw-in
Terminal Type Stud or screw (varies per configuration)
Dimensions (approx.) 3.0 × 1.0 × 2.5 in
Weight ~0.25 lbs
Compliance UL489, CSA, TUV, VDE Certified
Warranty 5 Years

About MidNite Solar

MidNite Solar, based in Arlington, Washington, is a leading U.S. manufacturer of renewable energy system components. Renowned for innovation, safety, and installer-friendly design, their product range includes combiner boxes, charge controllers, lithium batteries, E-Panels, and breakers. All products are UL-listed and NEC-compliant, trusted across off-grid, residential, and commercial solar installations worldwide.
