7.2kW Solar Kit - Sinclair Sky Rack 2.0 Ground Mount + (16) HT-SAAE 450W Panels (Seasonal Adjust)

A clean, ground-mounted 7.2kW solar array built for performance, adjustability, and long-term durability. This system pairs high-efficiency 450W HT-SAAE modules with the Sinclair Sky-Rack 2.0—giving you the ability to fine-tune your production throughout the year with seasonal tilt adjustments.

Sinclair Design & Engineering solar racking systems are proudly engineered, manufactured, and assembled in the USA, delivering durable mounting solutions built for American installers and conditions.

PLAN NOTE:  Purchase of the Sinclair Sky Rack 2.0 includes a site specific plan without a stamp. State permit authorities may require additional engineering documents, which can be accommodated at an additional fee.

Contact design@ussolarsupplier.com after purchase for assistance.

STRUCTURAL NOTE: Rated for 125 mph Wind Load & 60 PSF Snow Load. Additional design features available for requirements over 125 mph & 60 PSF.

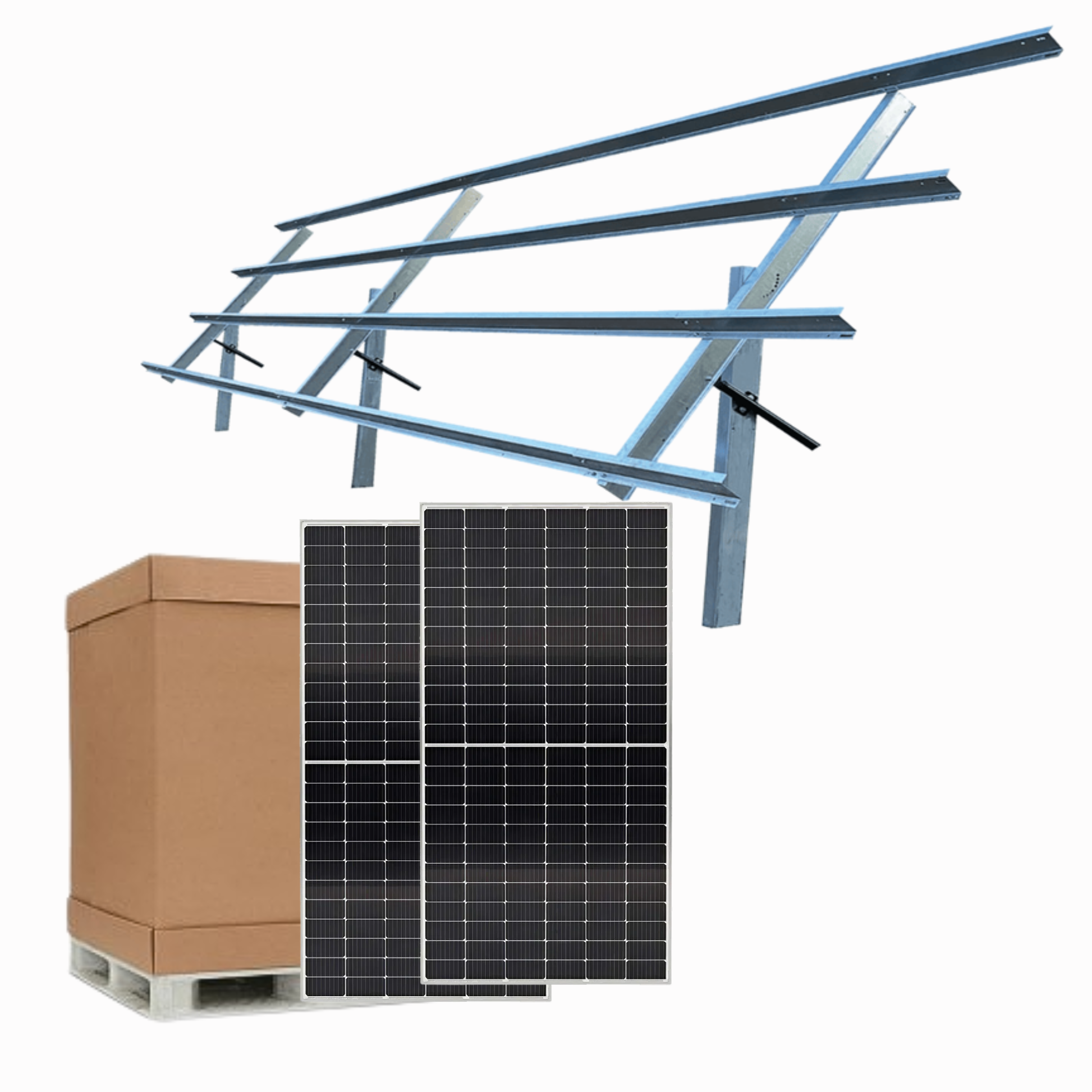

This Kit Includes

• (16) HT-SAAE 450W Solar Panels
• (3) C-Channel Posts – 144" (Concrete Footer)
• (3) Truss Beams – 150"
• (3) Adjustable Strut Jacks (Seasonal)
• (8) Z-Channel Purlins – 186" (8-Panel 2x4 configuration)
• (3) Hardware Assembly Kits (Post/Truss)
• (8) End Clamp Kits – 35mm (Conductive)
• (28) Mid Clamp Kits (Conductive)

Why This Kit Works

7.2kW DC System Size
Built with sixteen 450W modules for strong production in a compact footprint.

Ground Mount = Better Production
Install at the ideal angle and orientation for your site—no roof limitations.

Seasonal Adjustable Tilt
Maximize output year-round with adjustable angles from winter to summer.

Simplified Structural Design
The Sky-Rack system uses a streamlined component approach for efficient installs.

Seasonal Tilt Adjustment

The Sinclair Sky-Rack 2.0 gives you the flexibility to dial in production across the seasons:

• Fixed Tilt Option: 5° to 35° for standard installs
• Seasonal Adjust Range: 15° to 60° for optimized year-round output

Real Benefit:

• Steeper tilt in winter (up to 60°) improves low-angle sun capture and helps shed snow
• Lower tilt in summer increases total daily production
• Adjustments can be made incrementally to maintain system performance

This flexibility translates directly into higher annual energy yield compared to fixed systems.

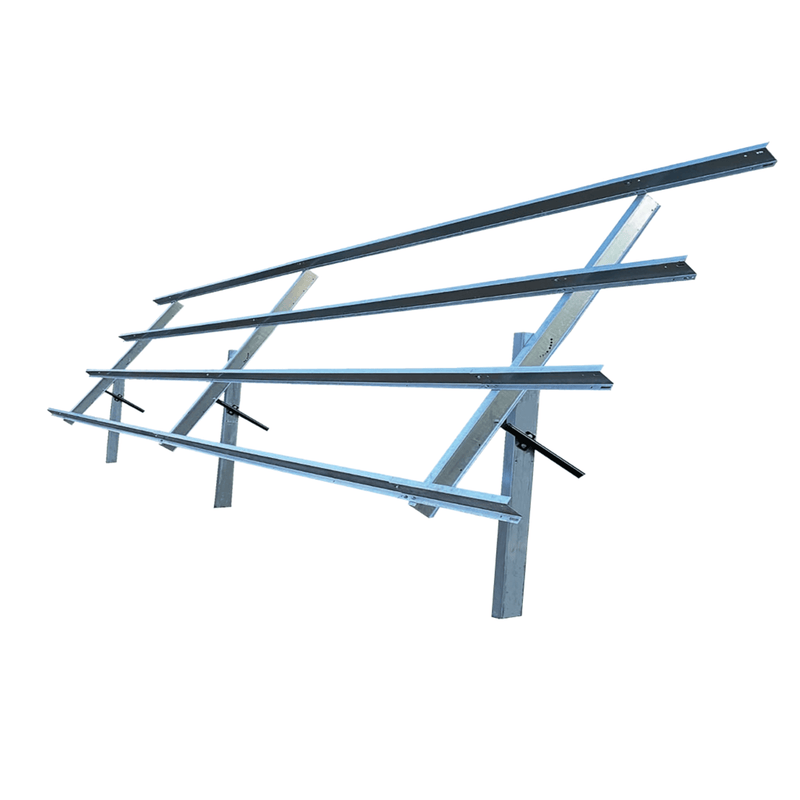

Sky-Rack 2.0 Ground Mount System

The Sky-Rack 2.0 is engineered for performance and install efficiency:

• Composed of four main structural components: C-channel posts, trusses, support struts, and Z-purlins
• Designed for fast installation and reduced complexity
• UL 2703 certified for bonding, grounding, and safety
• Built with galvanized steel components for durability
• Backed by a 25-year warranty

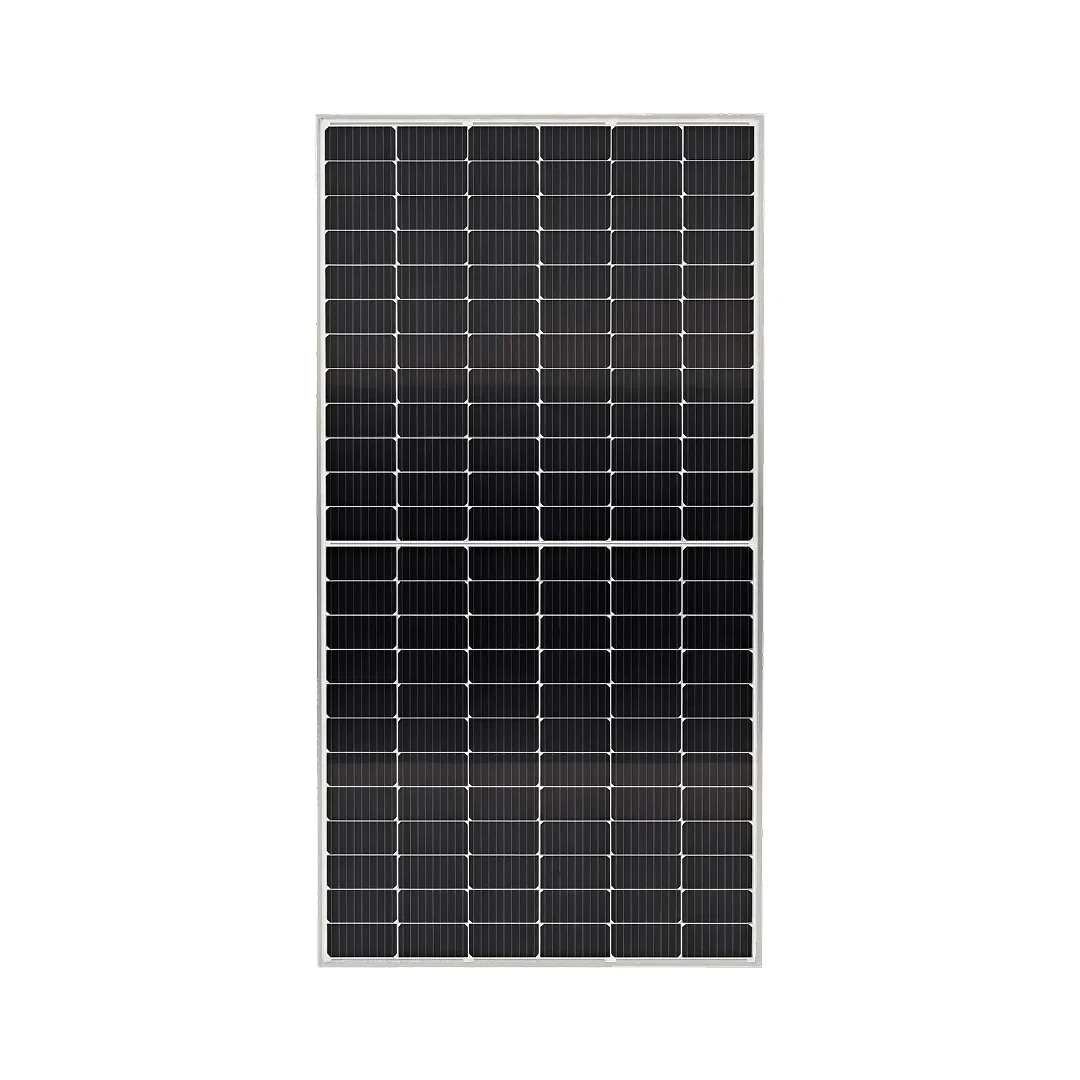

HT-SAAE 450W Solar Panels

High-efficiency bifacial-ready modules designed for long-term output and reliability.

Key Features:

• 450W output with 21.4% module efficiency
• Half-cut cell technology reduces internal losses and improves performance
• PID resistant and microcrack-resistant construction
• Rated for 5400 Pa snow load / 2400 Pa wind load
• Designed for 1500V DC systems for longer string configurations

Product Specifications

System Overview

HT-SAAE 450W Panel Specs

Mounting System Specs (Sky-Rack 2.0)

Best Applications

• Ground-mounted residential systems
• Properties with open land and optimal sun exposure
• Installations in snow-prone regions (benefits from steep winter tilt)
• DIY or installer-led builds needing structural simplicity
