Tigo PV Rapid Shutdown/Module Single 15 Amp w/Regular Cable TS4-A-F

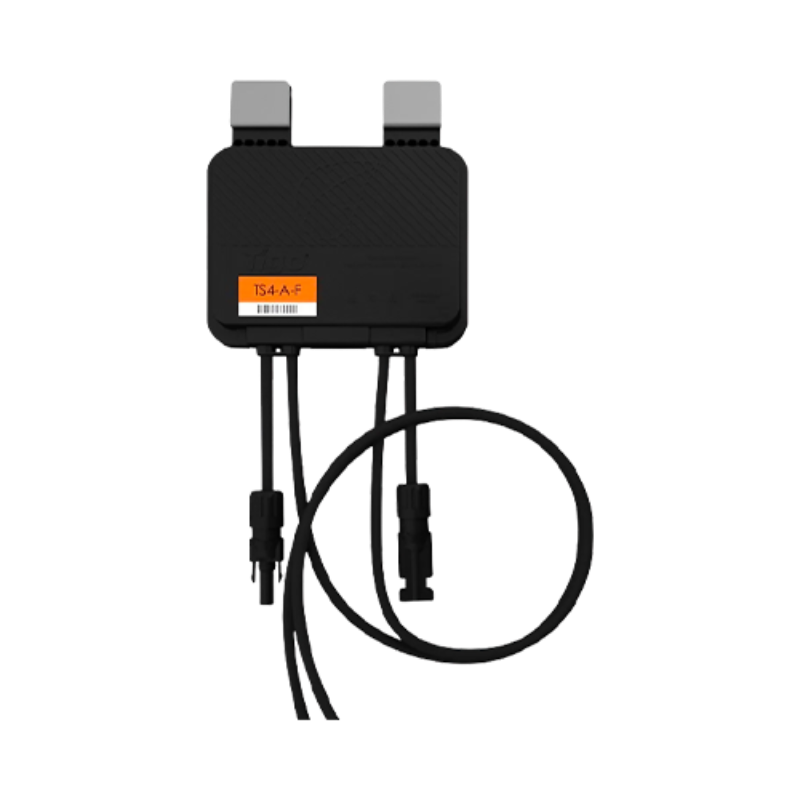

TS4-A-F
Tigo PV Rapid Shutdown/Module Single 15 Amp w/Regular Cable TS4-A-F
Features
The Tigo TS4-A-F is an advanced rapid shutdown solution designed for modern photovoltaic (PV) systems:
- High Input Current Support: Rated for up to 20A Imp and 25A Isc to accommodate high-current and bifacial modules.
- Rapid Shutdown Compliance: Meets NEC 2017 and 2020 690.12 requirements with automatic PV array shutdown upon AC grid loss.
- Durable Construction: Features IP68 and NEMA 3R ratings for indoor and outdoor installations.
- Efficient Performance: High efficiency of up to 99.9%.
- Ease of Installation: Snap-in mounting for standard PV module frames or rack-mounted configurations.
Technology Overview
The TS4-A-F utilizes power line communication (PLC) for rapid shutdown signaling over PV conductors. It integrates seamlessly with the Tigo RSS Transmitter or inverters with Tigo-certified transmitters to ensure compliance with rapid shutdown requirements. This module is ideal for upgrading safety features in existing installations or integrating them into new systems.
Installation
- Dimensions: 5.9 × 5.5 × 0.9 inches (138.4 × 139.7 × 22.9 mm).
- Weight: 1.1 lbs (490 g).
- Compatible with PV modules with a frame thickness of 30 mm and a glass thickness of 1.2–3 mm.
- Easy mounting on PV module frames with included clips, or rack-mount configurations for flexibility.
Applications
- Designed for residential, commercial, and utility-scale PV systems requiring compliance with rapid shutdown regulations.
- Suitable for systems with high-current modules, including bifacial PV panels.
Specifications
| Category | Specification |
|---|---|
| Electrical Data | |
| Max Input Voltage | 90V (15A version) / 80V (25A version) |
| Operating Voltage Range | 16–90V (15A) / 16–80V (25A) |
| Max Input Current (Isc) | 25A |
| Max Input Current (Imp) | 20A (25A version) / 15A (standard version) |
| Max Wattage | 700W |
| General Data | |
| Dimensions (L×W×D) | 5.9 × 5.5 × 0.9 inches |
| Weight | 1.1 lbs (490 g) |
| Outdoor Rating | IP68, NEMA 3R |
| Operating Temp | -40°F to 176°F (-40°C to 80°C) |
| Efficiency | 99.6% (15A) / 99.9% (25A) |
| Recommended Fuse Rating | 20A (15A version) / 30A (25A version) |
| Communication | |
| Communication Type | Power Line Communication (PLC) |
| Rapid Shutdown Time | 30 seconds or less |
| Certifications | |
| Standards | UL1741, CSA22.2, IEC 62109 |
Why Tigo?
Tigo is a pioneer in smart module technology, offering solutions that optimize, monitor, and manage photovoltaic (PV) systems. Established in 2007, Tigo's headquarters are located in Silicon Valley, California. The company has cultivated a reputation for innovation in the solar industry, particularly with its Flex MLPE (Module Level Power Electronics) platform.
Tigo's key technology, the TS4 platform, allows for customizable performance enhancements, enabling solar installations to meet specific project needs such as optimization, monitoring, and rapid shutdown requirements.
Tigo's products are designed to integrate seamlessly with a variety of inverters and modules, ensuring flexibility and scalability. With a commitment to quality and longevity, Tigo offers industry-leading warranties, typically providing up to 25 years of coverage for its products.
