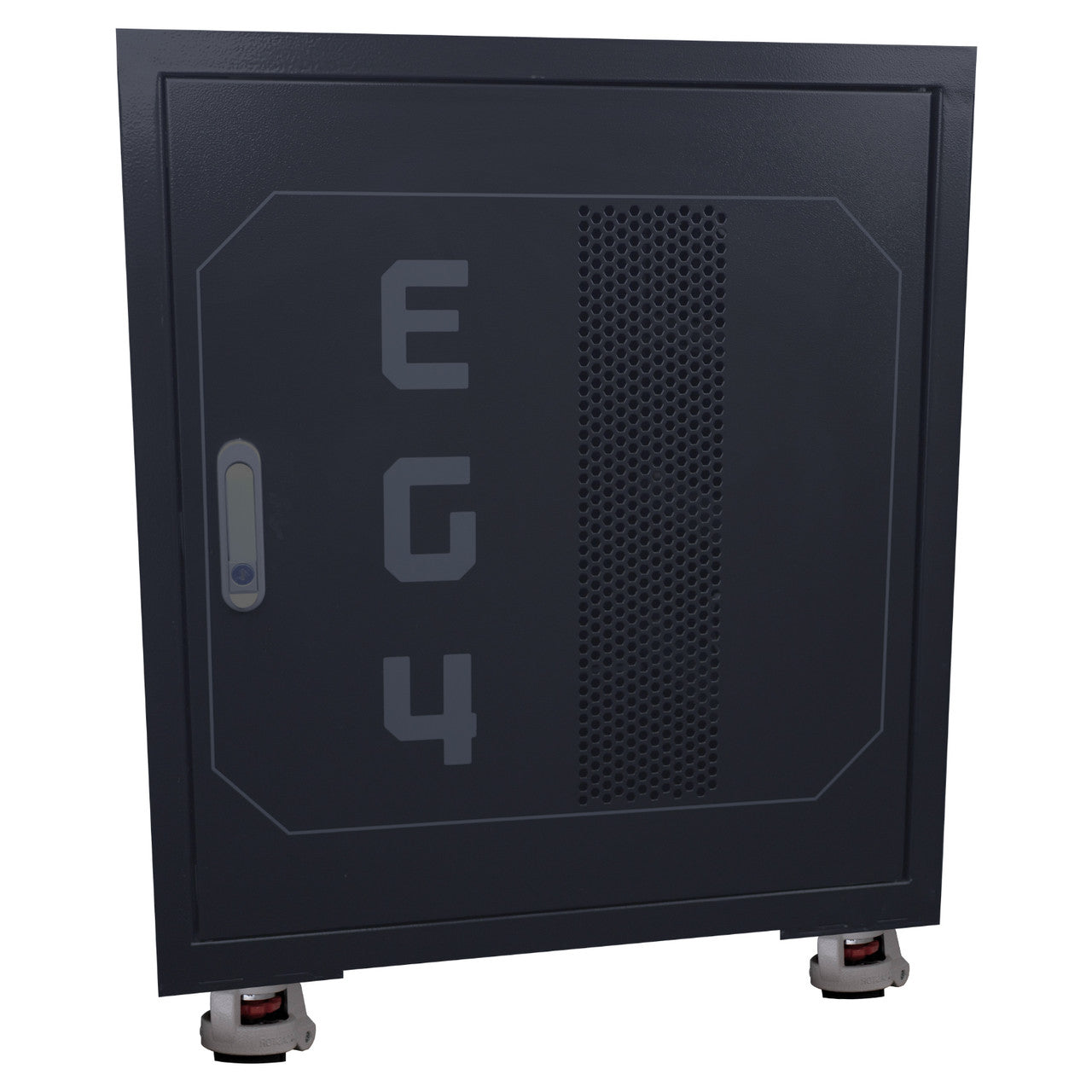

EG4 3 Space Lithium Battery Cabinet (Assembled) EG4CABINET3
EG4CABINET3
Specifications
EG4 3 Space Lithium Battery Cabinet (Assembled) EG4CABINET3
Key Features
- Secure Battery Storage: Accommodates up to three EG4 server rack batteries.
- Heavy-Duty Construction: Steel frame with a powder-coated black finish for maximum durability.
- Integrated Busbars: 300A-rated positive and negative busbars for efficient energy transfer.
- Multiple Cable Entry Points: Top, side, and bottom knockouts for flexible wiring options.
- Locking Mechanism: Keyed lock handle for added security and preventing unauthorized access.
- Heavy-Duty Casters: Swivel casters with adjustable feet for easy mobility and leveling.
- Compact & Space-Saving: Designed for optimal organization in energy storage setups.
- 3-Year Warranty: Ensures reliability and long-term protection.
Best Applications
- Residential Solar Energy Storage – Ideal for home battery backup solutions.
- Off-Grid & Grid-Tied Systems – Provides organized and secure energy storage.
- Commercial & Industrial Solar – Efficiently houses batteries in high-capacity systems.
- EV Charging Stations – Safely stores battery reserves for energy distribution.
Special Technology
The EG4 3-Slot Welded Battery Cabinet features an integrated high-current busbar system rated for 300A, allowing for direct battery-to-busbar connections without the need for additional hardware. Built-in heat shrink protection enhances safety by reducing electrical arcing risks, ensuring safe and efficient energy storage management.
About EG4 Electronics
EG4 Electronics is a trusted leader in energy storage solutions, providing high-performance batteries, inverters, and enclosures for residential and commercial renewable energy applications. Designed for efficiency, scalability, and long-term durability, EG4 products ensure reliable power solutions worldwide.
Specifications
| Parameter | Value |
|---|---|
| Model Number | BC-3-WD-IN-00 |
| Cabinet Dimensions (W × D × H) | 23.6 × 26.8 × 26.5 in (600 × 680 × 673.1 mm) |
| Dimensions with Casters (W × D × H) | 23.6 × 26.8 × 29.6 in (600 × 680 × 751.8 mm) |
| Weight (Without Batteries) | 100 lbs (45.4 kg) |
| Weight (With Batteries & Casters) | 168.9 lbs (76.6 kg) |
| Max Number of Batteries | 3 (EG4 Server Rack Style) |
| Material | Heavy-duty steel |
| Finish | Black powder-coated |
| Max. Busbar Current | 300A |
| Energy Storage Capacity | 5.12 – 15.36kWh |
| Cable Entry Knockouts | Top: 1.6 in (40.6 mm), Side: 2.5 in (63.5 mm) |
| Cable Gland Size | 3/4 in |
| Battery Connection Bolts | M6-1.0x15 (10mm hex head) |
| System Connection Bolts | M8-1.25x15 (13mm hex head) |
| Busbar Torque Value | 84 in-lbs (9.5 Nm) |
| Safety Features | Busbar heat shrink protection, lockable door |
| Enclosure Rating | Indoor Use Only |
| Warranty | 3 Years |
