21.6kW Ground Mount Solar Kit w/ Sol-Ark 18K & Discover HELIOS Batteries

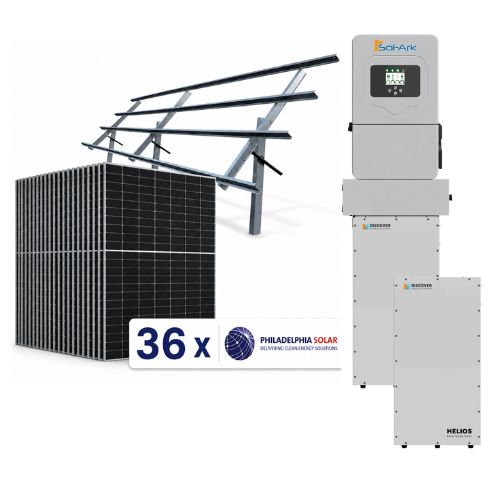

This Kit Includes:

  • (36) Philadelphia Solar 600W N-Type Bifacial Solar Panels – 21.6kW total DC array capacity.
  • (1) Sinclair Sky-Rack 2.0 Ground Mount Racking System – Seasonal adjustable configuration, sized for the included solar array.
  • (1) Sol-Ark 18K Hybrid Solar Inverter – 18K-2P-N.
  • (2) Discover Energy HELIOS 16.1kWh Outdoor LiFePO4 Batteries – 52-48-16000.
  • (1) Discover Energy HELIOS Conduit Box – Model to be confirmed for the final inverter and battery layout.
  • (2) Discover Energy 2/0 Parallel Battery Cable Sets – 950-0068.

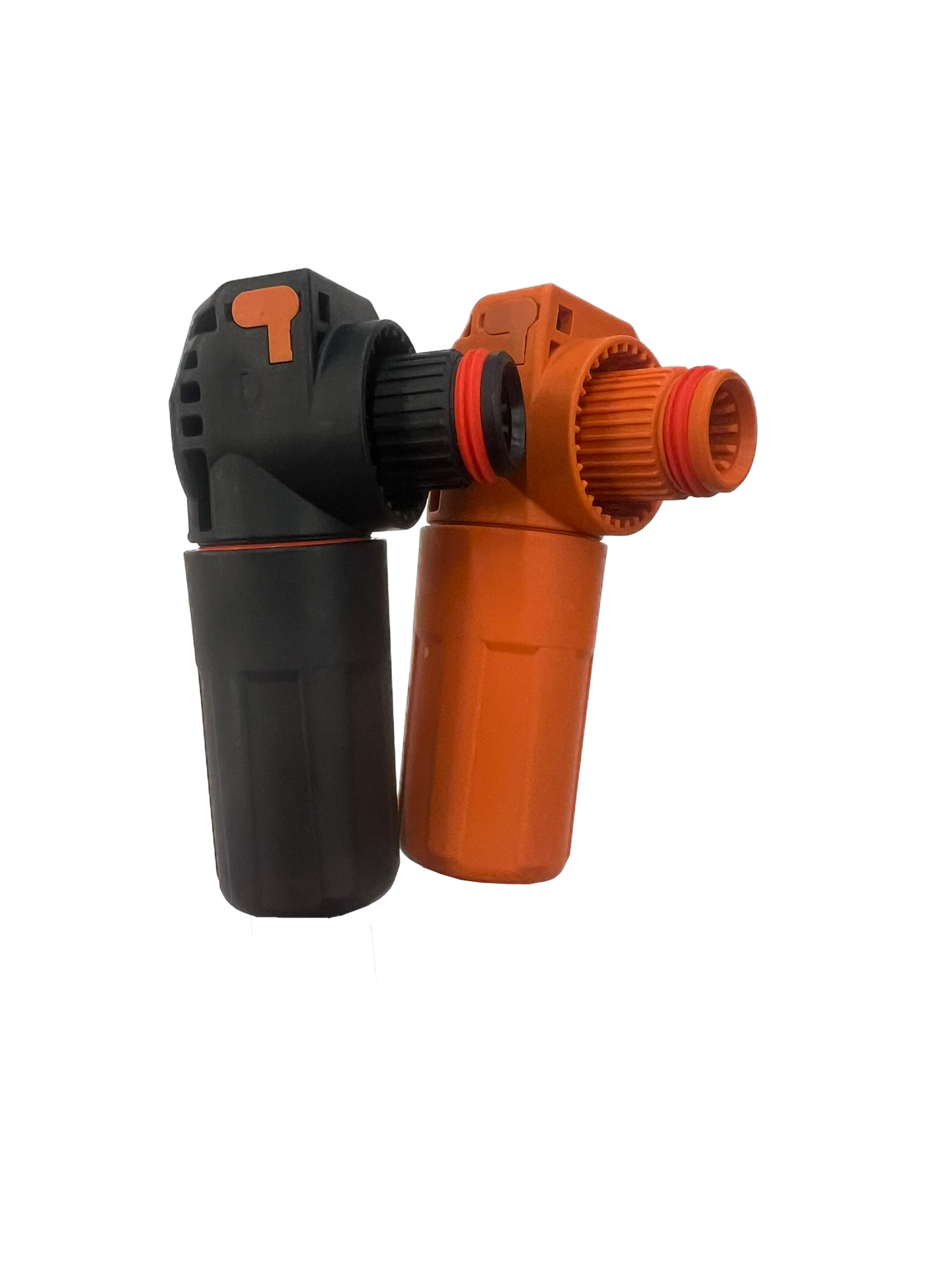

  • (1) Discover Energy Battery Connector Set – 950-0072.
  • (1) Project-Specific Sinclair Ground Mount Racking Plan.
  • All Required Sinclair Sky-Rack 2.0 Racking Hardware for the approved mounting configuration.

21.6kW Solar Array | 32.2kWh Battery Storage | Sol-Ark 18K Hybrid Inverter

The 21.6kW Complete Ground Mount Solar Kit combines high-output solar generation, expandable lithium battery storage, and a durable ground mounting system for larger residential properties, farms, workshops, and homes with substantial electricity needs.

Built around Philadelphia Solar N-Type bifacial panels, the American-made Sinclair Sky-Rack 2.0 ground mount system, the Sol-Ark 18K hybrid inverter, and Discover Energy HELIOS batteries, this package supports solar self-consumption, energy management, and backup power applications.

With ground-mounted solar panels and a hybrid inverter capable of managing solar, batteries, utility power, and compatible generators, the system offers a flexible foundation for residential solar-plus-storage installations.

Sinclair Sky-Rack ground mount solar installation illustration

Product Highlights

  • High-output ground mount solar kit for larger residential and small commercial energy needs.
  • Philadelphia Solar N-Type bifacial panels for efficient solar energy production.
  • Sinclair Sky-Rack 2.0 ground mount system with seasonal adjustable tilt.
  • Sol-Ark 18K hybrid inverter for solar generation, battery charging, and backup power management.
  • Discover HELIOS outdoor LiFePO4 battery storage with integrated battery management.
  • Grid-connected solar, battery backup, and compatible off grid operating configurations.
  • Expandable battery storage for changing energy requirements.
  • Ground mounting allows flexible placement away from rooftops.
  • Project-specific Sinclair racking plan and mounting hardware included.
  • Designed for professionally planned and installed solar-plus-storage systems.

Philadelphia Solar N-Type Bifacial Panels

The Philadelphia Solar modules use N-Type monocrystalline technology and bifacial construction to produce electricity from sunlight reaching the front surface while also capturing reflected light on the rear.

Ground mounting can be especially beneficial for bifacial solar panels because mounting height, ground reflectivity, and row spacing can be optimized to improve rear-side exposure. Actual additional production depends on site conditions and the final array layout.

Sinclair Sky-Rack 2.0 Ground Mount System

The American-made Sinclair Sky-Rack 2.0 provides a durable mounting foundation for the solar array. Its galvanized steel construction uses posts, trusses, support struts, and purlins to support ground-mounted photovoltaic modules.

The seasonal adjustable configuration allows the array tilt to be changed throughout the year to better match seasonal sun angles. The system is UL 2703 certified and backed by a manufacturer structural warranty.

A project-specific Sinclair racking plan and the required racking hardware for the approved configuration are included.

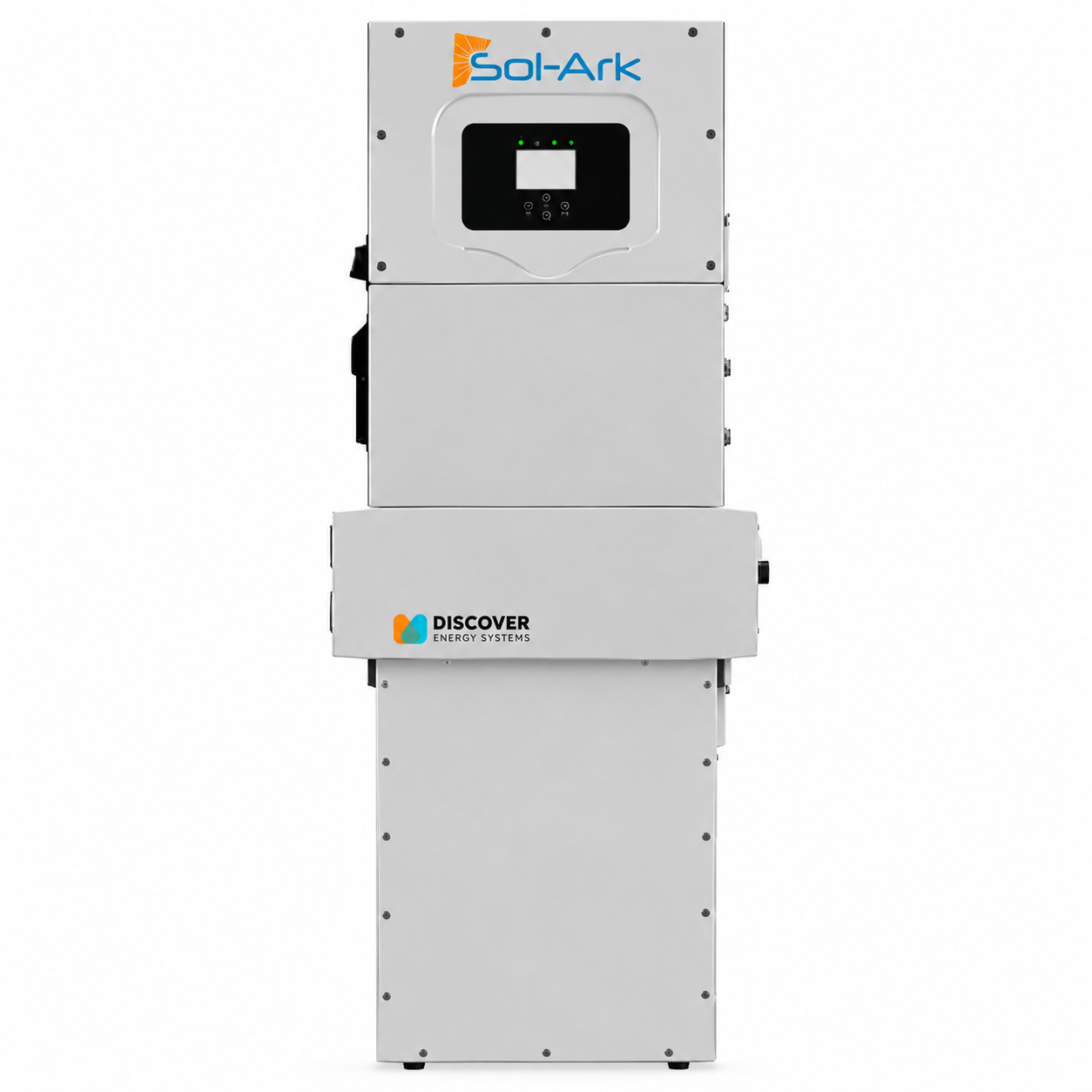

Sol-Ark 18K Hybrid Inverter

The Sol-Ark 18K is a split-phase hybrid solar inverter designed for larger residential solar and battery storage systems. It manages electricity from solar panels, compatible batteries, the utility grid, and supported generator connections.

Its hybrid architecture supports solar self-consumption, battery charging, backup power, and energy management. Remote monitoring and configurable operating modes help homeowners manage how and when stored energy is used.

The inverter's multiple MPPT inputs provide flexibility for designing solar arrays with appropriately configured strings. Final panel string sizing must account for voltage, current, and site temperature conditions.

Discover Energy HELIOS Outdoor Lithium Batteries

The included Discover Energy HELIOS batteries provide rechargeable lithium iron phosphate energy storage for daily solar use and backup power applications.

Each battery features an integrated battery management system and an outdoor-rated enclosure. The HELIOS platform supports compatible parallel battery configurations, allowing additional storage to be added as energy requirements increase.

Discover Energy provides integration guidance for HELIOS batteries used with compatible Sol-Ark hybrid inverters, including communication, battery cable selection, and system configuration.

Solar Energy Storage and Whole-Home Backup

This kit combines solar generation with battery storage so electricity produced during the day can be stored for use during evenings, periods of reduced sunlight, or utility outages.

The Sol-Ark inverter can supply supported household loads from available solar and battery power when the system is correctly configured for backup operation. Actual whole-home backup capability depends on electrical loads, surge requirements, battery charge, and system design.

Ground Mount Flexibility and Seasonal Adjustment

Ground-mounted solar offers an alternative for properties with limited roof space, unfavorable roof orientation, or a preference for keeping solar equipment off the home.

The Sinclair seasonal adjustable system allows the array to be positioned for changing seasonal sunlight conditions. Proper site selection should consider shading, soil conditions, setbacks, wind and snow loads, and maintenance access.


Applications

  • Large residential solar energy systems.
  • Whole-home and essential-load backup power.
  • Farms, ranches, and rural properties.
  • Workshops and detached outbuildings.
  • Off Grid Solar Systems with appropriate configuration.
  • Hybrid grid-connected solar installations.
  • Properties with limited or unsuitable rooftop space.
  • Solar self-consumption and time-of-use energy management.

The system is intended for professional design and installation. Ground mount foundations, electrical interconnection, inverter configuration, and battery integration must be finalized for the specific property.


Additional Installation Requirements

This kit includes the listed solar equipment, battery components, Sinclair racking system, and project-specific racking plan. Additional electrical balance-of-system materials are required to complete the installation.

  • PV wire, conduit, fittings, and required electrical raceways.
  • DC and AC disconnects where required.
  • Overcurrent protection and electrical distribution equipment.
  • Grounding and bonding materials beyond included racking components.
  • Battery-to-inverter cables and communication accessories as required by the final layout.
  • Ground mount foundations or driven piles appropriate for site conditions.
  • Permits, utility interconnection approval, and any required engineering documentation.

Final electrical materials and battery connection hardware should be selected using the approved system design and manufacturer installation requirements.


Specifications

Specification Details
Solar Array Capacity 21.6kW DC
Solar Panels 36 × Philadelphia Solar 600W N-Type Bifacial
Inverter Sol-Ark 18K Hybrid – 18K-2P-N
Inverter Continuous AC Output 18,000W, 120/240V split-phase
Battery Model 2 × Discover HELIOS – 52-48-16000
Total Battery Capacity 32.2kWh
Battery Chemistry Lithium Iron Phosphate (LiFePO4)
Battery Nominal Voltage 51.2V DC
Ground Mount System Sinclair Sky-Rack 2.0, seasonal adjustable
System Configuration Hybrid solar with battery storage; grid-connected and compatible off grid applications

Frequently Asked Questions

How much solar power does this ground mount kit provide?

The kit includes 36 Philadelphia Solar panels rated at 600W each, providing 21.6kW of total rated DC solar array capacity. Actual energy production depends on sunlight, location, panel orientation, shading, and system conditions.

How much battery storage is included?

The kit includes two Discover HELIOS batteries rated at 16.1kWh each, providing 32.2kWh of combined battery storage capacity.

Can this system provide whole-home backup power?

Yes, the Sol-Ark hybrid inverter and Discover HELIOS batteries can support whole-home backup applications when properly sized and configured. The ability to power all household loads depends on simultaneous power demand, motor starting requirements, available solar production, and stored battery energy.

Can this solar kit operate without the utility grid?

The Sol-Ark 18K supports compatible off grid configurations. A complete off grid design must account for expected energy consumption, battery autonomy, generator requirements, and seasonal solar production.

Is the Sinclair ground mount system adjustable?

Yes. This kit specifies the seasonal adjustable Sinclair Sky-Rack 2.0 configuration, allowing the panel tilt to be changed for seasonal sunlight conditions.

Can additional Discover HELIOS batteries be added?

Yes. The HELIOS platform supports expandable battery configurations. Additional batteries and connection accessories must follow Discover Energy's approved installation and communication requirements.

Does the kit include all the hardware needed to mount the panels?

The package includes the Sinclair Sky-Rack 2.0 racking hardware and project-specific racking plan for the approved configuration. Site-specific foundations, electrical materials, and other installation items may be required separately.

Are the Sol-Ark inverter and Discover HELIOS batteries compatible?

Discover Energy publishes integration guidance for HELIOS batteries with Sol-Ark hybrid inverters. Final compatibility, communication configuration, and cable selection should be verified for the Sol-Ark 18K and the specific battery arrangement.

Does this kit include electrical wiring and disconnects?

No. Electrical balance-of-system components such as PV wiring, conduit, disconnects, and overcurrent protection are not included unless specifically identified in the kit contents.

Is professional installation recommended?

Yes. This ground mount solar and battery system requires site-specific structural and electrical design, utility coordination where applicable, and professional installation and commissioning.
