APsystems Current Transformer 200A/66.6mA 18083020012
18083020012
APsystems Current Transformer 200A/66.6mA 18083020012

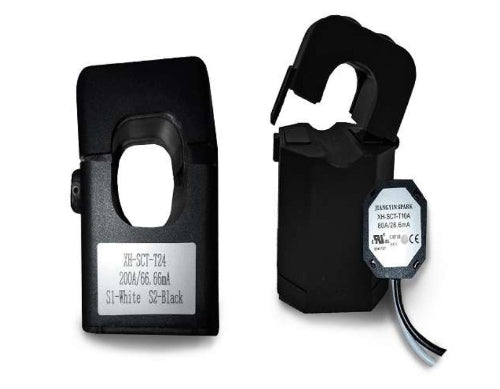

The APsystems 18083020012 is a precision current transformer (CT) designed to provide accurate current sensing for APsystems energy monitoring devices. With a 200A input and 66.6mA output ratio, it is ideal for residential and commercial PV systems requiring reliable power metering and load management.
Key Benefits
High Accuracy: Ensures precise monitoring of current flow for real-time energy management.
Standard Output: 66.6mA output for compatibility with most CT-compatible meters and gateways.
Durable Construction: Features UL1015 24AWG insulated 1-meter lead wires for flexible installation.
Plug-and-Play: Designed for easy integration with APsystems ECU-R and ECU-C energy communication units.
Special Technology
XH-SCT-T24/200 Type: Optimized for low phase shift and linearity across full current range.
Compact Design: Small form factor enables installation in tight electrical panels or enclosures.
Warranty
Covered under APsystems' accessory warranty when installed as part of a certified APsystems monitoring solution.
Best Uses
Residential Solar Installations: Enables accurate system performance tracking and compliance with utility reporting.
Commercial PV Monitoring: Used in systems requiring high-current load sensing with CT-based metering.
Energy Management Systems: Integrates into building automation or demand response systems requiring CT feedback.
Specifications Table
| Specification | Data |
|---|---|
| Model | 18083020012 |
| Type | XH-SCT-T24/200 |
| Current Rating | 200A (input) |
| Output Signal | 66.6mA |
| Lead Wire Type | UL1015 24AWG |
| Lead Length | 1 meter (39.37 in) |
| Output Connector | 2-wire (black and white leads) |
| Application | Current sensing for APsystems ECU gateways and metering |
| Weight | ~0.25 lb |
| Dimensions | Approx. 2.5 × 2.5 × 1.25 in |
| Certifications | Compliant with UL wire standards (UL1015) |
| Warranty | APsystems accessory warranty |
About APsystems:
APsystems, founded around 2010 in Silicon Valley, is a global leader in module-level power electronics (MLPE) for solar PV systems. They specialize in dual‑module microinverters such as the DS3 and QT2, along with energy meters and rapid shutdown units. Their solutions optimize energy harvest, reduce installation time, and provide module-level monitoring. Deployed in over 100 countries with more than 4 TWh of energy produced, APsystems offers up to 25-year warranties.
