16kW Off-Grid Solar Kit with 19.2kWh Fortress Power Battery
36 Trina Solar 445W panels + Fortress Power Envy Duo 21 inverter + eForce 19.2kWh LFP battery + Guardian monitoring
Off-Grid Use Only
This package is offered exclusively for off-grid installations and is not intended for utility-interconnected systems. System design, permitting and installation must be completed by a qualified solar or electrical professional.
Save $4,804 on the Complete Kit
Get the complete Trina Solar and Fortress Power package for $18,195.50, compared with the regular price of $22,999.50. The Fortress Power Guardian monitoring hub is included free.
Build a high-capacity off-grid energy system with 16.02kW of Trina Solar generation, 19.2kWh of Fortress Power LFP battery storage and 12kW of continuous AC output. This package combines the major power-producing and energy-storage components needed for large homes, cabins, farms, workshops and remote properties.
The 36-panel Trina array provides strong daytime production, while the Fortress Power Envy Duo 21 manages solar and battery operation. The eForce battery stores 19.2kWh of nominal energy, and the included Guardian hub provides battery-level monitoring through the Fortress Power platform.

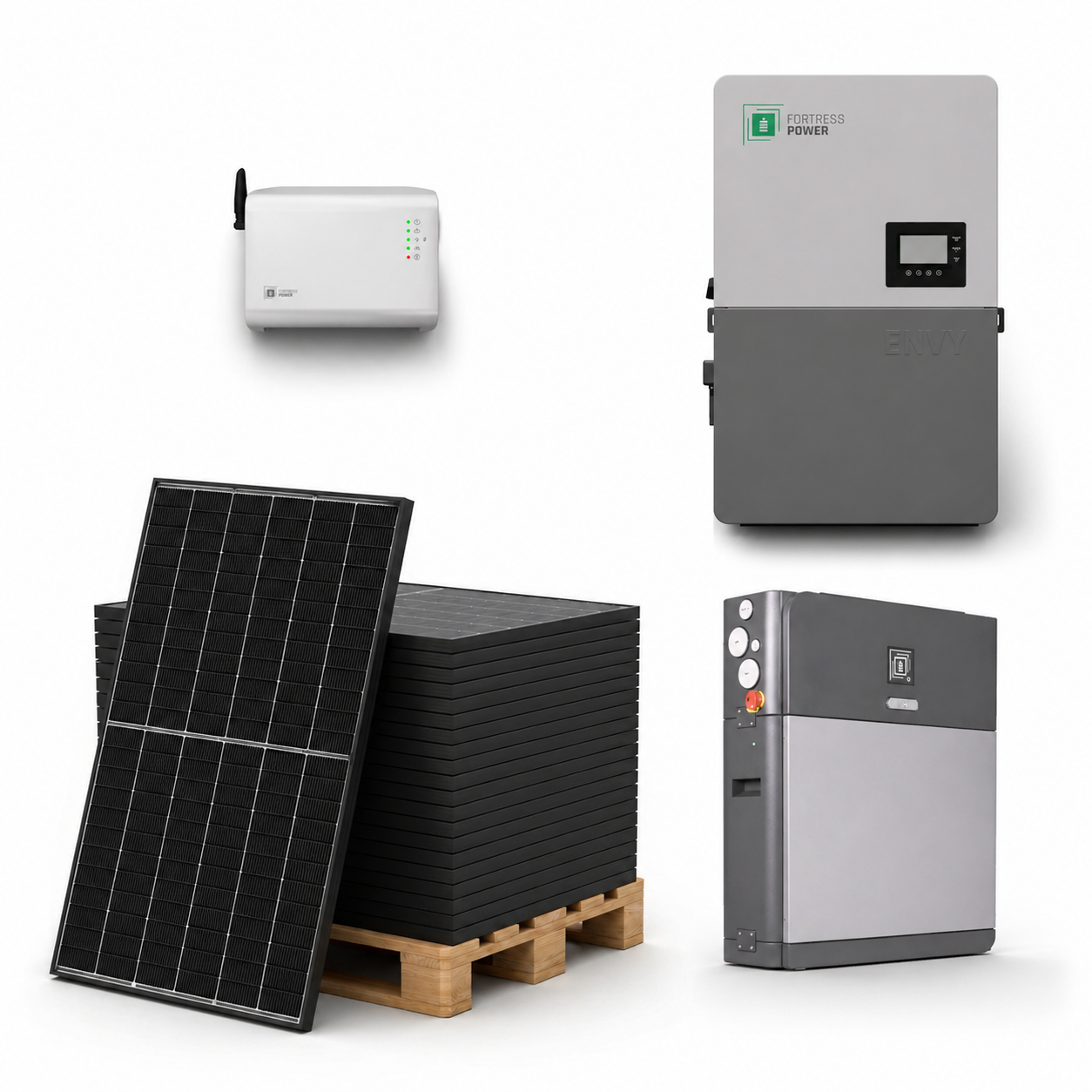

What Is Included

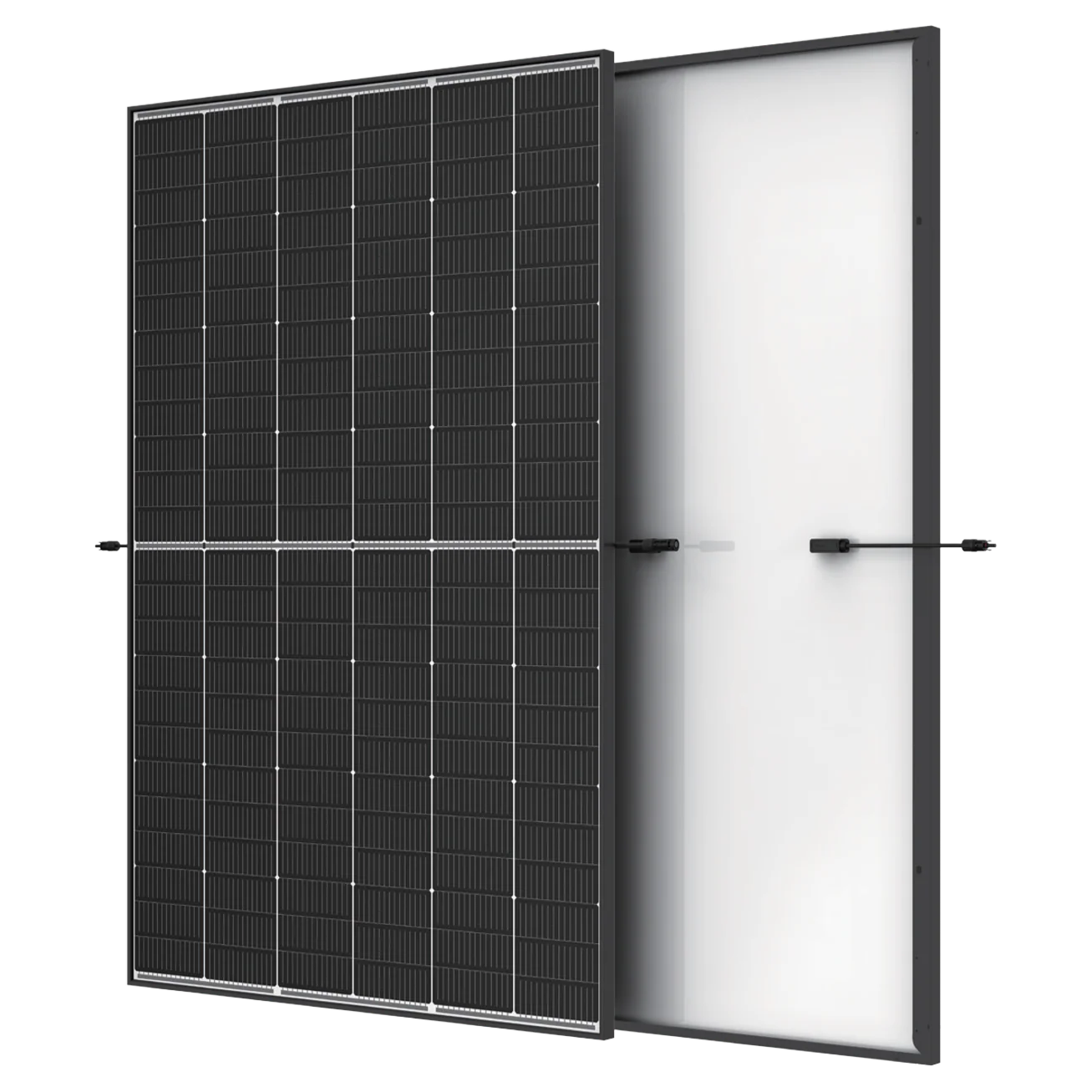

- (36) Trina Solar 445W Vertex S+ N-Type Dual-Glass Solar Panels (TSM-NEG9R.28-445)
- (1) Fortress Power Envy Duo 21 Hybrid Inverter

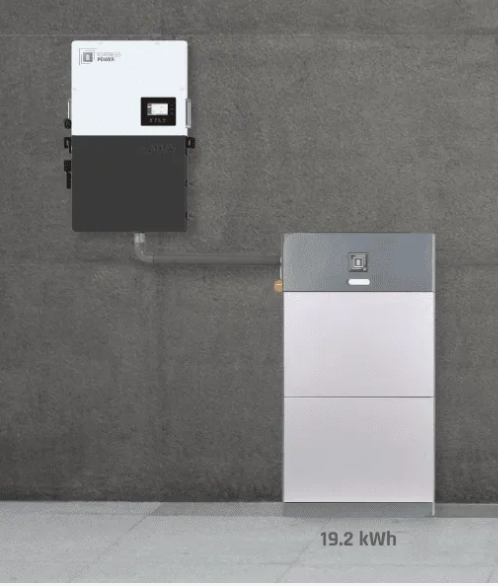

- (1) Fortress Power eForce 19.2kWh LFP Battery System
- (1) Fortress Power Guardian Monitoring Hub
Solar racking, wiring, disconnects, overcurrent protection and other balance-of-system components are not included unless specifically stated elsewhere on the product page.
System at a Glance
| Solar array | 16.02kW DC |
| Panel quantity | 36 panels at 445W each |
| Battery storage | 19.2kWh nominal |
| Continuous AC output | 12kW |
| Peak inverter output | Up to 16kW |
| Battery chemistry | Lithium iron phosphate (LFP) |
| Monitoring | Fortress Power Guardian included |
Why Choose This Off-Grid Kit?
- Substantial solar production: Thirty-six 445W panels provide a 16.02kW DC array for large residential and light-commercial energy needs.
- High-output power conversion: The Envy Duo 21 provides 12kW of continuous AC output and up to 16kW peak output.
- 19.2kWh of LFP storage: The modular eForce system stores solar energy for nighttime use and periods of limited production.
- Built for expansion: Envy Duo 21 inverters can be paralleled up to 120kW, and the eForce platform can expand up to 153kWh of storage.
- Free monitoring included: The Guardian hub provides system tracking, including state of charge, voltage, current and system performance.
- Outdoor-ready battery: The eForce battery has an IP65 rating and built-in heating for greater installation flexibility.
Designed For
- Large off-grid homes and cabins
- Remote properties and workshops
- Farms and other high-demand off-grid systems
- Properties that need expandable solar and battery capacity
Product Specifications
| Specification | Details |
|---|---|
| Trina Solar TSM-NEG9R.28-445 Panels | |
| Module Power | 445W |
| Module Efficiency | Up to 22.8% |
| Cell Technology | N-Type i-TOPCon monocrystalline |
| Construction | Dual glass |
| Dimensions | 69.37 x 44.65 x 1.18 in |
| Weight | 48.06 lb per panel |
| Quantity | 36 |
| Total Array Size | 16.02kW DC |
| Maximum System Voltage | 1,500V DC |
| Fortress Power Envy Duo 21 | |
| Continuous Output | 12,000W |
| Peak Output | Up to 16,000W |
| Maximum PV Input | 25,000W |
| MPPTs | 3 |
| Voltage | 120/240V or 120/208V |
| Battery Voltage | 48V |
| Maximum Efficiency | 97.5% PV to grid |
| Dimensions | 22.3 x 35.2 x 11.2 in |
| Weight | 125.71 lb |
| Fortress Power eForce 19.2kWh Battery | |
| Nominal Energy | 19.2kWh |
| Battery Type | Lithium iron phosphate (LFP) |
| Nominal Voltage | 48V |
| Operating Voltage Range | 39-54V |
| Cycle Life | Up to 8,000 cycles |
| Dimensions | 24.4 x 9.4 x 53.1 in |
| Weight | 487 lb |
| Ingress Rating | IP65 |
| Warranty | 10 years, subject to manufacturer terms |
| Fortress Power Guardian | |
| Function | Battery monitoring and cloud data |
| Monitoring Data | State of charge, voltage, current and system performance |
| Connectivity | Wi-Fi and Ethernet |
| Power Consumption | 5W |
| Dimensions | 7.25 x 6 x 1.25 in |
| Weight | 0.8 lb |
Warranty
- Trina Solar panels: 15-year product warranty and 30-year performance warranty, subject to the applicable manufacturer terms
- Fortress Power Envy Duo 21: 10-year manufacturer warranty
- Fortress Power eForce: 10-year manufacturer warranty
Professional System Design Required
This is not a plug-and-play package. A qualified professional must confirm panel string sizing, racking, conductor sizing, overcurrent protection, grounding, disconnects, battery settings, equipment clearances and all applicable electrical and building-code requirements. Actual solar production, usable battery energy and supported loads depend on location, weather, system settings and operating conditions.
Frequently Asked Questions
Is this kit for off-grid or grid-connected use? +
This package is offered exclusively for off-grid installations and is not intended for utility-interconnected systems.
Is the system output 16kW? +
The solar array is 16.02kW DC. The Envy Duo 21 provides 12kW of continuous AC output and up to 16kW peak output. Solar-array size, continuous inverter output and peak inverter output are different ratings.
How much energy does the battery store? +
The Fortress Power eForce battery system provides 19.2kWh of nominal energy storage.
How long will the 19.2kWh battery run my property? +
Runtime depends on the average electrical load, battery reserve settings and system losses. For example, a 2kW average load will run much longer than central air conditioning, electric heat or other high-demand equipment. A professional load analysis is recommended before purchase.
Can the system be expanded? +
Yes. Envy Duo 21 inverters can be paralleled up to 120kW, and the eForce platform can be expanded up to 153kWh of total storage. Expansion must follow the applicable Fortress Power design and installation requirements.
Is Guardian monitoring included? +
Yes. One Fortress Power Guardian monitoring hub is included free with this kit. It provides system tracking through Wi-Fi or Ethernet connectivity.
Does this kit include everything required for installation? +
No. The package includes the panels, inverter, battery system and Guardian hub listed above. The final installation may require racking, wiring, disconnects, overcurrent protection, grounding equipment and other balance-of-system materials selected for the property.
What warranties are included? +
The Trina Solar panels include a 15-year product warranty and 30-year performance warranty. The Fortress Power Envy Duo 21 inverter and eForce battery each include a 10-year manufacturer warranty, subject to the applicable warranty terms.
