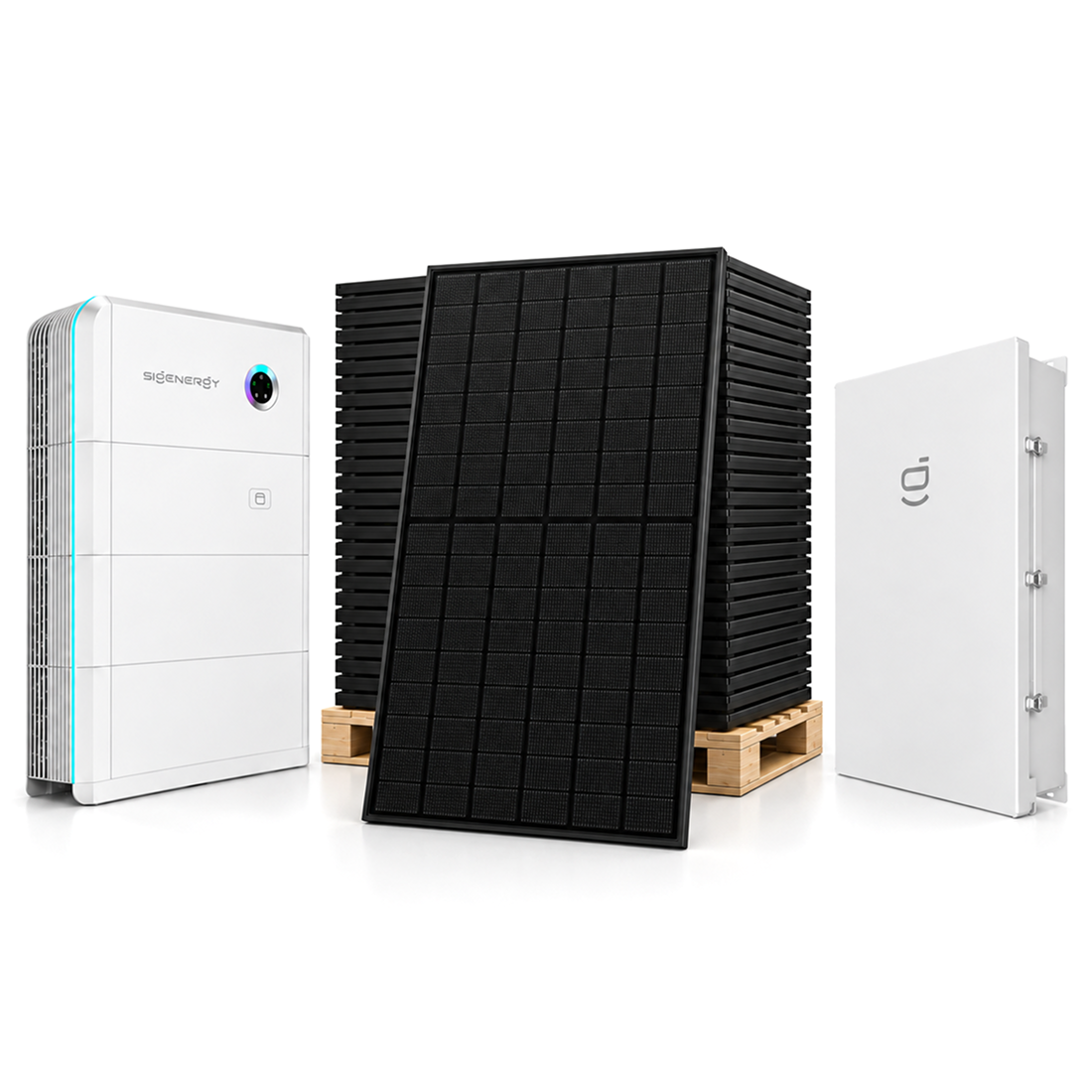

Sigenergy SigenStor 27kWh Battery + 16.5kW Solar Kit

37 Hanersun 445W all-black solar panels + three SigenStor BAT 9.0 US batteries + Sigen Energy Controller Split Phase US + Sigen LoadHub US

Produce your own electricity, store energy for later and prepare for utility outages with a Sigenergy solar and battery bundle. This package combines 16.465kW of Hanersun solar capacity with 27.12kWh of nominal SigenStor battery storage and a split-phase Energy Controller configured for 11.5kW AC output.

The Hanersun array supplies daytime power, while the SigenStor batteries store energy for use after sunset or during an outage. The included Sigen LoadHub connects the system to home loads and enables properly configured backup operation.

What Is Included

• (37) Hanersun 445W HiTouch5N Full-Black N-Type TOPCon Bifacial Solar Panels — HN18N-54HT445W
• (3) SigenStor BAT 9.0 US Battery Modules: 9.04kWh nominal and 8.76kWh published usable energy per module
• (1) Sigen Energy Controller Split Phase US: integrated solar inverter, battery power conversion and energy management, configured for 11.5kW output
• (1) Compatible Sigen LoadHub US: 120/240V split-phase hub for system integration and backup operation

The solar inverter is integrated into the Energy Controller. A separate solar inverter is not required for this configuration.

Installation, solar racking, EV charging equipment, site wiring and other installation materials are not included unless specifically listed. Required battery mounting and connection accessories must be confirmed with the supplied package.

System at a Glance

Why Choose This Solar + Battery Kit?

• Substantial solar generation: A 37-panel array provides 16.465kW of rated DC capacity for household energy use and battery charging.
• More energy for later: Three battery modules provide 27.12kWh of nominal storage for nighttime use and outages.
• Clean all-black appearance: Hanersun's full-black panels offer a consistent look for residential rooftops.
• High-efficiency panel technology: N-Type TOPCon cells deliver 22.8% rated module efficiency.
• Backup power capability: The Energy Controller, batteries and LoadHub support backup operation when properly designed and installed.
• Expandable storage: The modular SigenStor platform provides a path to additional battery capacity within manufacturer limits.

Hanersun 445W All-Black Solar Panels

The Hanersun HN18N-54HT445W combines N-Type TOPCon cells, bifacial generation and dual-glass construction. Each panel provides 445W of rated front-side output with 22.8% efficiency.

• Full-black module design
• Bifacial generation from reflected rear-side light
• 2.0mm front glass and 2.0mm rear glass
• 25-year product warranty
• 30-year linear power output warranty

Additional rear-side generation depends on mounting height, reflected light and installation conditions. Warranty coverage is subject to manufacturer terms.

Sigen Energy Controller Split Phase US

The Energy Controller integrates solar power conversion, battery power conversion and energy management. Configured to 11.5kW, it supports this solar array through four independent MPPT trackers.

• 11.5kW nominal AC output at 240V
• 120/240V split-phase operation
• Four MPPT trackers with one solar string per tracker
• Up to 23kW maximum PV input power at the 11.5kW configuration
• Compatible with SigenStor BAT 6.0 US and BAT 9.0 US modules

SigenStor 27.12kWh Battery Storage

Three BAT 9.0 US modules provide 27.12kWh of nominal energy and 26.28kWh of published usable energy under manufacturer test conditions. Store solar energy for evening use and support designated loads when utility power is unavailable.

Each battery module is rated for up to 4.6kW of charge/discharge power. Actual system output depends on the Energy Controller, battery state of charge, temperature and operating settings.

Sigen LoadHub US

The compatible Sigen LoadHub US integrates the SigenStor system with the property's electrical system and enables backup switching. Your installer will determine the appropriate backup loads, service configuration and any required load management.

Product Specifications

Delivery & Receiving

This package ships by freight. Components may arrive in separate shipments. Please arrange a suitable receiving area and assistance or equipment to safely move the solar panels and battery modules.

If you are unable to receive freight at your property, we can help coordinate delivery options.

Warranty

Hanersun panels include a 25-year product warranty and a 30-year linear power output warranty, subject to manufacturer terms. Sigenergy components carry their applicable manufacturer warranties, including any registration, commissioning and installation requirements.

Professional System Design Required

A qualified solar or electrical professional must verify panel string sizing, inverter input limits, battery configuration, mounting accessories, wiring, protection equipment and supported loads. Grid-connected installations require applicable permitting and utility approval.

Actual solar production, usable battery energy and backup runtime vary with location, weather, electrical demand and system settings.
