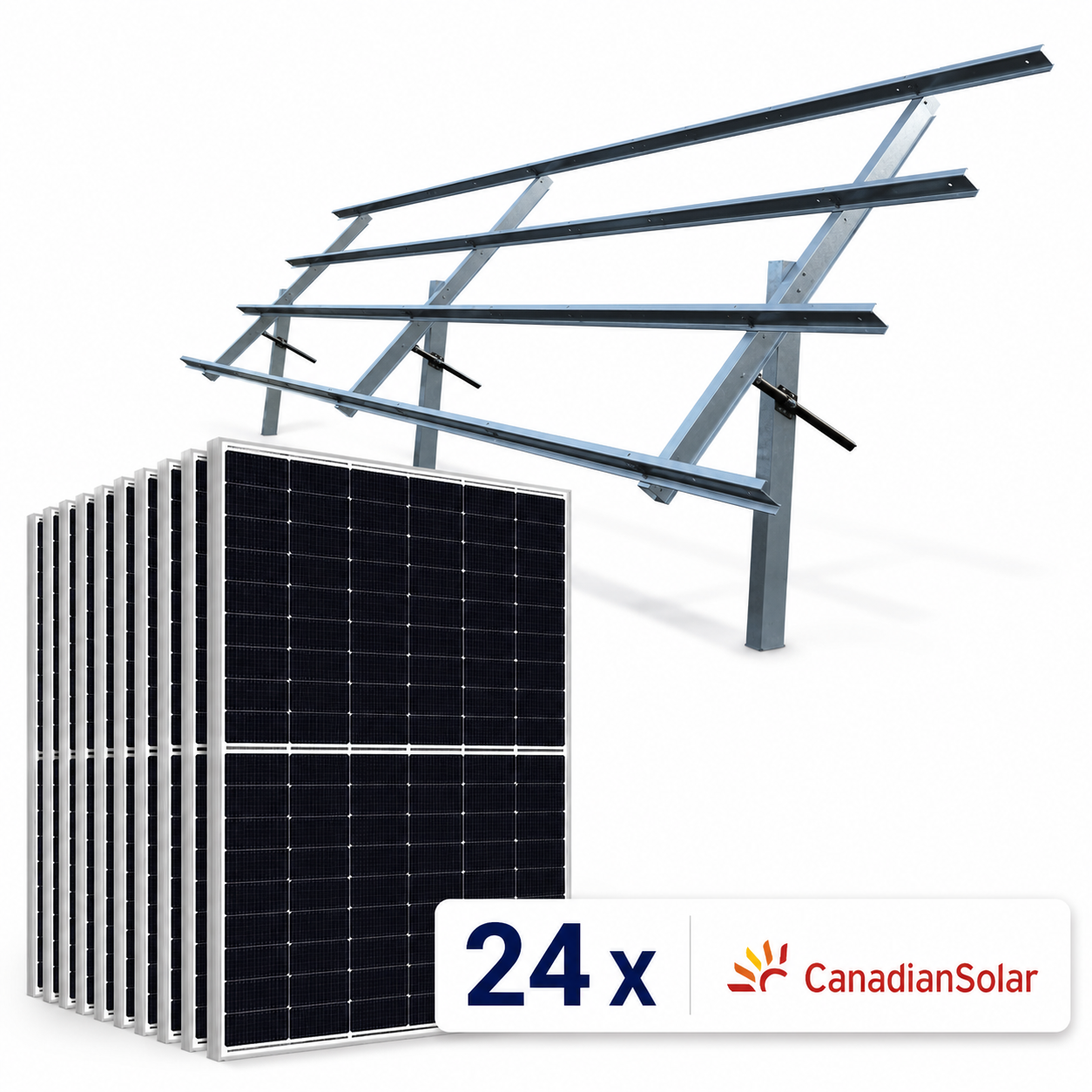

14.8kW Ground Mount Solar Kit

(24) Canadian Solar 620W Bifacial Panels, Sinclair Sky-Rack 2.0 & Permit Plans

Build a powerful residential or small commercial solar array with this complete 14.88kW ground-mounted solar kit featuring 24 Canadian Solar 620W bifacial modules paired with the USA-made Sinclair Sky-Rack 2.0 seasonal-adjust ground-mounting system.

Designed for maximum energy production and long-term durability, this package includes permit-ready plans to help streamline the installation and permitting process. (Stamps for permits are available at an additional cost)

By combining high-output bifacial modules with the adjustable Sinclair Sky-Rack 2.0, this system allows homeowners, farms, and businesses to maximize solar generation year-round. Seasonal tilt adjustment from 15° to 60° helps optimize production as the sun's angle changes throughout the year.

What's Included

Solar Modules

• (24) Canadian Solar 620W Bifacial Solar Panels
• Model: CS6.2-66TB-620
• Total System Size: 14.88kW DC
• N-Type TOPCon Cell Technology
• Bifacial Glass-Glass Construction
• High-efficiency utility-grade performance
• Excellent low-light and temperature performance

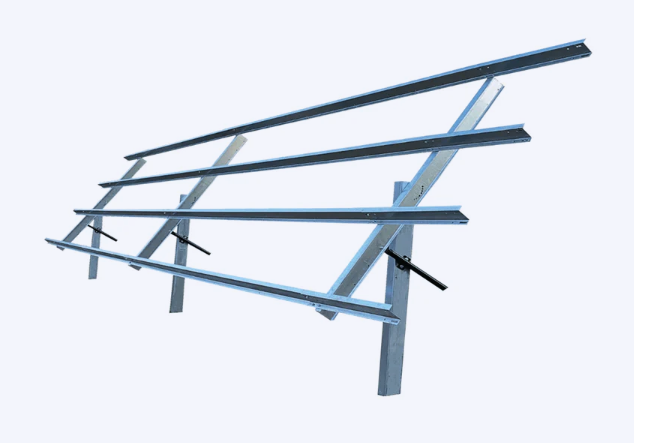

Ground Mount Racking

• (1) Sinclair Sky-Rack 2.0 Ground Mount System
• Sized for twenty-four modules
• Seasonal tilt adjustment from 15° to 60°
• Heavy-duty steel construction
• Engineered and manufactured in the USA
• UL 2703 Listed

Design & Plans

• Permit-ready plan set included
• Site layout documentation
• Structural and installation drawings
• Simplifies homeowner and contractor permitting requirements

Why Choose the Sinclair Sky-Rack 2.0?

Unlike fixed-angle ground mounts, the Sinclair Sky-Rack 2.0 allows seasonal adjustment to better align your solar array with the sun throughout the year.

Benefits Include:

• Increased annual energy production
• Improved winter solar generation
• Easier cleaning and maintenance access
• Enhanced snow shedding capability
• Strong wind and weather resistance
• Made in the USA

For northern climates especially, the ability to adjust tilt can significantly improve shoulder-season and winter energy production.

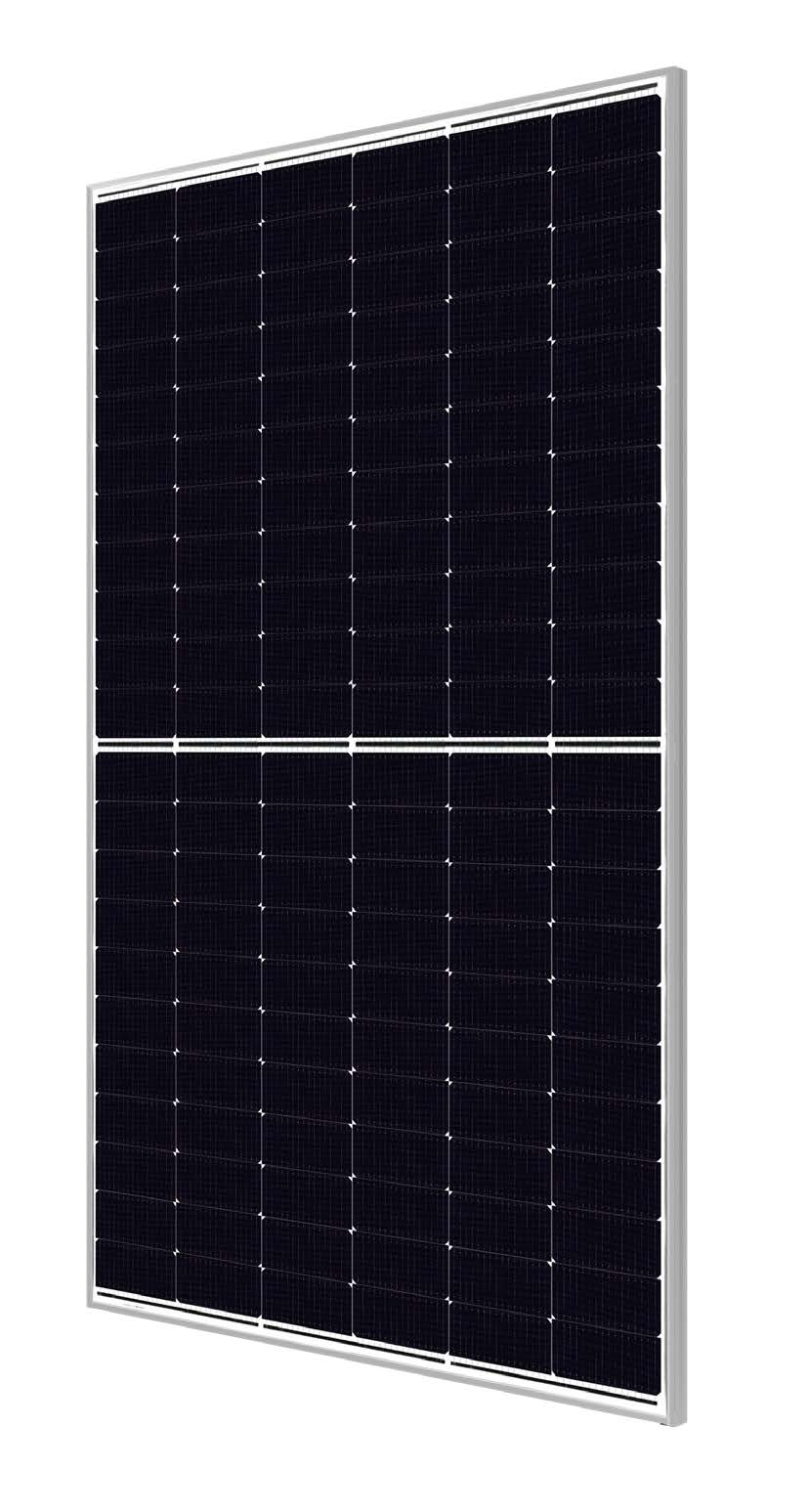

Premium Canadian Solar 620W Bifacial Modules

The Canadian Solar CS6.2-66TB-620 is a high-output bifacial module built using advanced N-Type TOPCon technology for exceptional energy yield and long-term reliability.

Key Features

• 620W rated output per panel
• N-Type TOPCon cell architecture
• Bifacial energy production from both sides of the module
• Glass-glass construction for superior durability
• Lower degradation than conventional P-Type modules
• Strong low-light performance
• Designed for high-energy residential and commercial applications

With twenty-four modules, this system delivers:

Total DC Capacity: 14,880 Watts (14.88kW)

Ideal Applications

This system is an excellent choice for:

• Large residential properties
• Rural homes and homesteads
• Farms and agricultural operations
• Workshops and outbuildings
• Small commercial facilities
• Energy independence projects
• Grid-tied or battery-ready solar systems

Ground-mounted arrays provide flexibility in placement, simplify maintenance, and often achieve better solar exposure than rooftop installations.

System Specifications

Designed for Maximum Energy Production

This 14.88kW solar kit combines some of the industry's highest-output residential modules with one of the most versatile seasonal-adjust ground mounting systems available. The Canadian Solar bifacial modules help increase energy harvest through rear-side production, while the Sinclair Sky-Rack 2.0 allows you to optimize tilt angles throughout the year for maximum performance.

Whether you're looking to offset a large electric bill, power a farm or workshop, or build toward energy independence, this professionally designed ground mount solar package delivers exceptional production, durability, and long-term value.

Kit Highlights

✓ 14.88kW DC Solar Array
✓ (24) Canadian Solar 620W Bifacial Modules
✓ Sinclair Sky-Rack 2.0 Seasonal-Adjust Ground Mount
✓ Permit Plans Included
✓ N-Type TOPCon Technology
✓ Bifacial Glass-Glass Construction
✓ USA-Made Racking System
✓ Adjustable Tilt from 15°–60°
✓ UL 2703 Listed Ground Mount System
✓ Built for Decades of Reliable Solar Production
