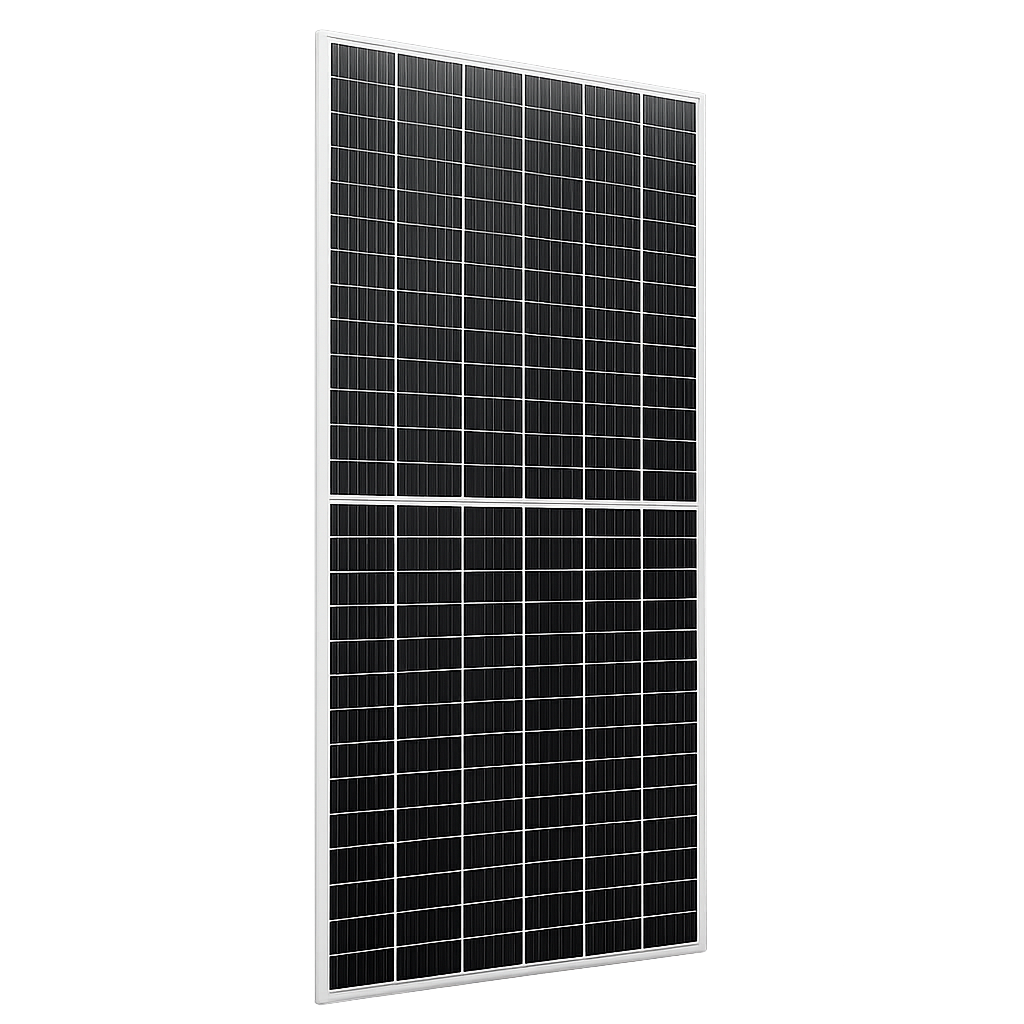

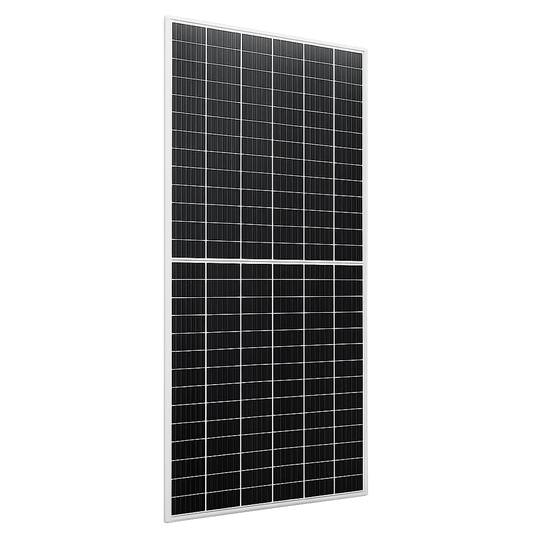

Waaree 575W Elite Series N-Type Dual Glass Bifacial Solar Panel – BiN-08-575
The Waaree Elite Series BiN-08-575 is a high-performance 575W N-Type TOPCon bifacial solar panel engineered for commercial, utility-scale, agricultural, and large residential solar installations.
Featuring 144 half-cut M10/M10R N-Type TOPCon cells, dual-glass construction, and an impressive 22.26% module efficiency, this module delivers outstanding energy production, excellent reliability, and lower levelized cost of electricity (LCOE).
What to Pair It With
The Waaree BiN-08-575 pairs well with:
- Commercial string inverters from Solis, Fronius, and SMA
- Hybrid inverters including Sol-Ark for battery-ready commercial systems
- Ground mount systems such as the Sinclair Sky-Rack 2.0
- Commercial rooftop racking from IronRidge, Unirac, and K2 Systems
- 1500V commercial solar installations
Why Choose the Waaree Elite Series?
Waaree's Elite Series is designed to deliver higher energy production while reducing operating costs throughout the life of your solar system.
Key benefits include:
- 575W high-output module
- Advanced N-Type TOPCon cell technology
- Dual-glass bifacial construction
- 22.26% module efficiency
- Excellent weak-light performance
- Superior PID resistance
- Lower temperature coefficient for improved hot-weather production
- Multi-busbar (MBB) design for enhanced crack tolerance and reliability
- Lower LCOE through increased lifetime energy production
- Rated for 1500V commercial systems
Capture More Energy with Bifacial Technology
The BiN-08-575 features a bifacial design that allows the rear side of the module to convert reflected sunlight into additional power.
Installed over reflective surfaces such as:
- White membrane roofs
- Gravel
- Concrete
- Snow
- Light-colored ground cover
the module can significantly increase overall energy production. With an 80% ±10% bifaciality factor, backside power gains can increase output substantially depending on installation conditions. Under ideal conditions, a 20% rear-side gain can increase output to approximately 690W.
Built for Long-Term Reliability
The Elite Series is engineered for decades of dependable operation with premium materials throughout the module.
Highlights include:
- 2 mm tempered low-iron front glass
- 2 mm tempered printed rear glass
- UV-resistant, PID-free encapsulant
- Weatherproof IP68 junction box
- MC4-compatible connectors
- Heavy-duty anodized aluminum frame
- Excellent resistance to microcracks and environmental stress
Engineered for Harsh Weather
Designed for demanding climates, the BiN-08-575 withstands significant environmental loading.
Rated for:
- 5,400 Pa front snow load
- 2,400 Pa rear wind load
- Operating temperatures from -40°C to 85°C
These ratings make it an excellent choice for commercial rooftops, ground mounts, agricultural installations, and utility-scale projects.
Ideal Applications
The Waaree 575W Elite Series is ideal for:
- Commercial rooftop solar
- Utility-scale solar farms
- Ground mount arrays
- Agricultural facilities
- Industrial buildings
- Large residential systems
- EPC and installer projects
Specifications
| Specification | Value |
|---|---|
| Manufacturer | Waaree |
| Series | Elite Series |
| Model | BiN-08-575 |
| Rated Power (Pmax) | 575 W |
| Module Efficiency | 22.26% |
| Cell Technology | N-Type TOPCon Monocrystalline |
| Cell Configuration | 144 Half Cells (12 × 6 || 12 × 6) |
| Module Type | Bifacial Dual Glass |
| Maximum Power Voltage (Vmp) | 43.86 V |
| Maximum Power Current (Imp) | 13.11 A |
| Open Circuit Voltage (Voc) | 52.30 V |
| Short Circuit Current (Isc) | 13.87 A |
| Temperature Coefficient (Pmax) | -0.30%/°C |
| Temperature Coefficient (Voc) | -0.26%/°C |
| Temperature Coefficient (Isc) | +0.046%/°C |
| Nominal Operating Cell Temperature (NOCT) | 43 ± 2°C |
| Maximum System Voltage | 1500 V DC |
| Maximum Series Fuse Rating | 30 A |
| Bifaciality Factor | 80% ±10% |
| Front Glass | 2 mm Low-Iron HTAR Semi-Tempered Glass |
| Rear Glass | 2 mm Low-Iron Printed Semi-Tempered Glass |
| Junction Box | IP68, 3 Diodes |
| Connectors | MC4 Compatible |
| Cable Length | 500 mm |
| Frame | Silver Frame |
| Dimensions | 2278 × 1134 × 35 mm (89.7 × 44.6 × 1.38 in) |
| Weight | 32 kg (70.5 lbs) |
| Front Static Load | 5,400 Pa |
| Rear Static Load | 2,400 Pa |
| Product Warranty | 15 Years |
| Performance Warranty | 30-Year Linear Power Warranty |
