Waaree 400W (Pallet of 31) Arka Series Monocrystalline PERC Half-Cut Solar Panel WSMDIB-400
WSMDIB-400

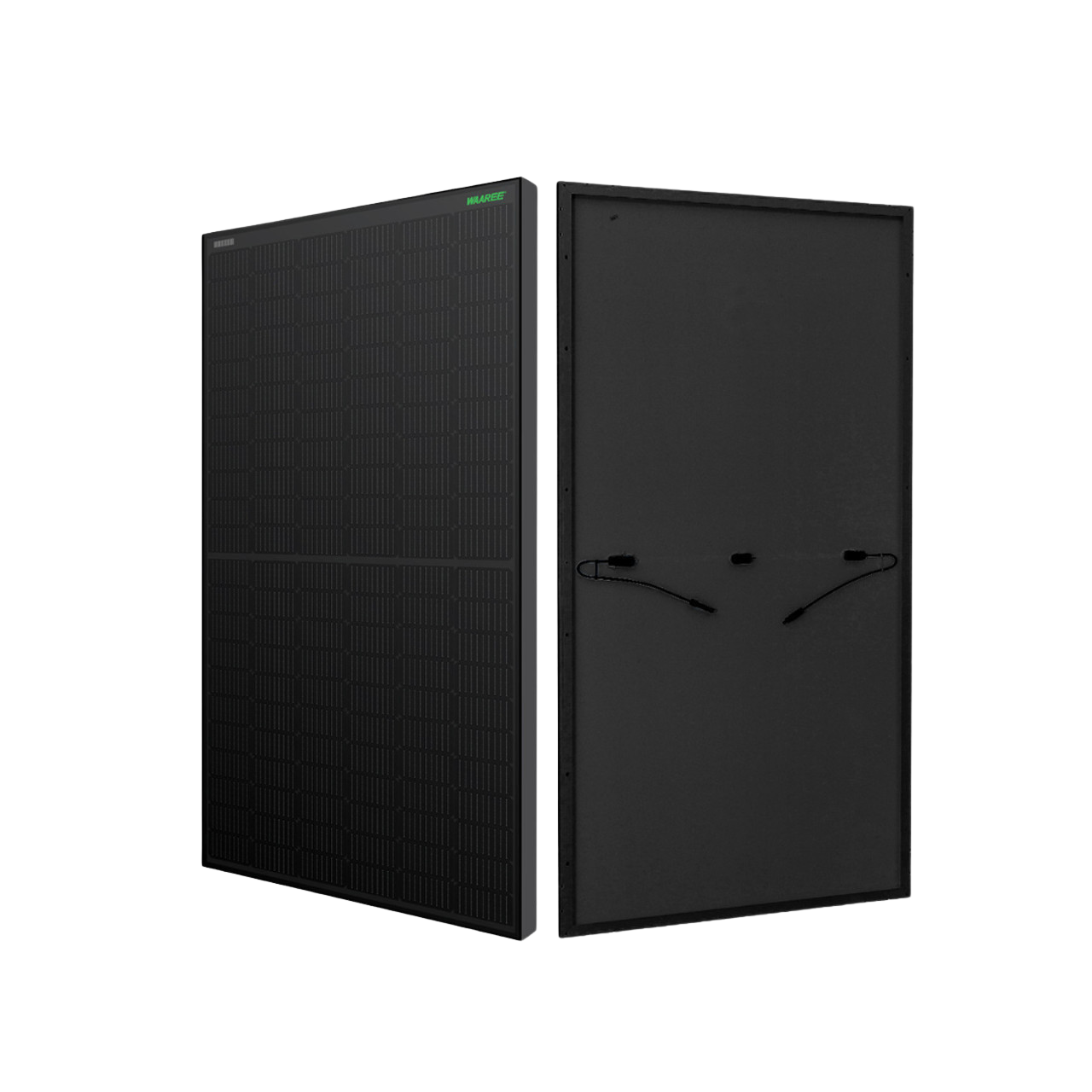

Waaree 400W Arka Series Monocrystalline PERC Half-Cut Solar Panel WSMDIB-400
Pallet Only: 31 panels/pallet
Key Benefits
High Efficiency: 20.03% module efficiency using advanced M6 mono PERC half-cut cells.
Reliable in Harsh Conditions: Certified to withstand 5400 Pa snow load and 2400 Pa wind load.
Enhanced Durability: PID-resistant design with UV-resistant encapsulation ensures long service life.
Reduced Losses: Split junction box design minimizes power loss up to 1/4 compared to conventional designs.
Special Technology
9BB Crack-Tolerant Cells: Improves reliability and reduces risk of micro-cracks.
ARC-Coated Glass: 3.2 mm low-iron tempered glass with anti-reflective coating for higher light absorption.
Half-Cut Cell Layout: Lowers resistive losses and improves shade tolerance.
Warranty
12-Year Product Warranty and 27-Year Linear Power Output Warranty (83.7% at year 27).
Best Uses
Residential Rooftops: Compact size with high efficiency for maximum energy yield in limited space.
Commercial Installations: Low degradation rate ensures consistent performance over decades.
Harsh Environments: Certified for heavy snow, high winds, and extreme temperatures.
Specifications Table
| Specification | Data |
|---|---|
| Model | WSMD-400 |
| Cell Type | Monocrystalline PERC, 9BB |
| Number of Cells | 132 (11×6 || 11×6) Half-Cut |
| Max Power (Pmax) | 400 W (STC) / 300.6 W (NOCT) |
| Open Circuit Voltage (Voc) | 45.22 V (STC) / 38.00 V (NOCT) |
| Short Circuit Current (Isc) | 11.32 A (STC) / 9.14 A (NOCT) |
| Voltage at Max Power (Vmp) | 42.30 V (STC) / 35.40 V (NOCT) |
| Current at Max Power (Imp) | 9.46 A (STC) / 8.47 A (NOCT) |
| Module Efficiency | 20.03% |
| Power Tolerance | 0 ~ +5 W |
| Temperature Coefficient (Pmax) | -0.365%/°C |
| Temperature Coefficient (Voc) | -0.285%/°C |
| Temperature Coefficient (Isc) | +0.055%/°C |
| Operating Temperature | -40°C to +85°C |
| Nominal Operating Cell Temp (NOCT) | 43 ± 2°C |
| Max System Voltage | 1500 V DC |
| Max Series Fuse Rating | 25 A |
| Front Glass | 3.2 mm low-iron tempered with ARC coating |
| Encapsulant | PID-free & UV-resistant |
| Frame | Anodized aluminum alloy (≥15 μm anodization) |
| Junction Box | IP68, Weatherproof PPO |
| Cable / Connector | 4 mm², 1200 mm length, Staubli MC4 |
| Dimensions (L × W × H) | 75.75 × 40.87 × 1.38 in |
| Weight | 48.50 lb |
| Mechanical Load | 5400 Pa (front) / 2400 Pa (rear) |
| Certifications | IEC 61215, IEC 61730, UL 61730, IEC TS 62804-1 |
| Warranty | 12 Years Product, 27 Years Linear Output |
About Waaree:
Waaree Energies Ltd, founded in 1989 and headquartered in Mumbai, is India’s largest solar PV module maker, with ~13.3 GW module capacity and 5.4 GW of cell capacity. It operates five domestic plants plus U.S. facilities, holds a BloombergNEF Tier‑1 rating, and earned an EcoVadis Gold for ESG excellence.
Why Buy From US Solar Supplier?
As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on.
We update our inventory daily with solar components that feature the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.
Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.
Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.
Expert Support: Our team is here to guide you every step of the way.
Manufacturer-Backed Warranties: Enjoy peace of mind with the 12-year product warranty and a 27-year linear power output warranty directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.
Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!
FAQs
Q: What is the power output of the Waaree WSMD-400 panel?
The Waaree WSMD-400 produces 400 watts of power, making it a high-efficiency choice for both residential and commercial installations.
Q: Are Waaree WSMD-400 panels suitable for areas with low sunlight?
Yes, the WSMD-400 is designed to perform efficiently even in low-light conditions such as hazy, cloudy skies and early mornings or late afternoons.
Q: What kind of warranty does Waaree offer for the WSMD-400 panel?
Waaree offers a 12-year product warranty and a 27-year linear power output warranty, ensuring long-term reliability and performance.
Q: Are these panels compatible with different mounting systems?
Yes, the WSMD-400 is compatible with a wide variety of standard mounting systems, making installation straightforward for both roof-mounted and ground-mounted applications.
Q: How durable are Waaree WSMD-400 panels in harsh weather conditions?
The WSMD-400 is built to withstand extreme weather, including heavy snow, strong winds, and high temperatures. It also features anti-reflective glass to enhance durability and efficiency.
Q: Can the WSMD-400 help me save on energy costs?
Absolutely! The high efficiency of the WSMD-400 allows you to generate more electricity per square foot, reducing your energy bills and shortening your solar payback period.
Q: How many panels do I need for my home?
This depends on your energy usage and available space. For example, a home or business using about 10,000 kWh/year would need approximately 25 Waaree WSMD-400 panels. Consult with a certified installer for a precise estimate.
Q: How many panels are in each pallet?
Each pallet contains 31 Waaree WSMD-400 panels, offering convenience and cost savings for larger projects.
