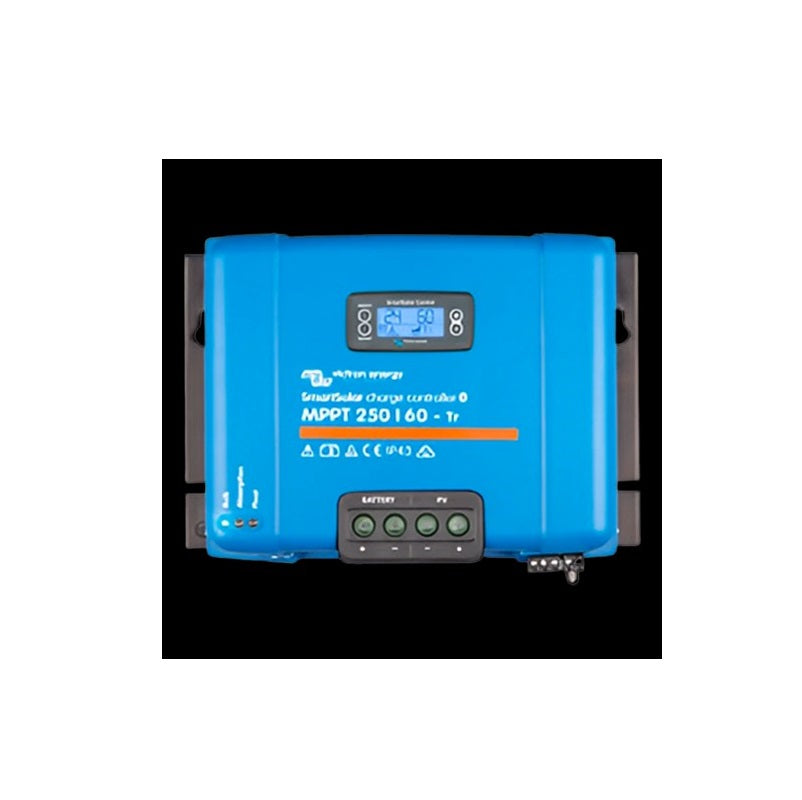

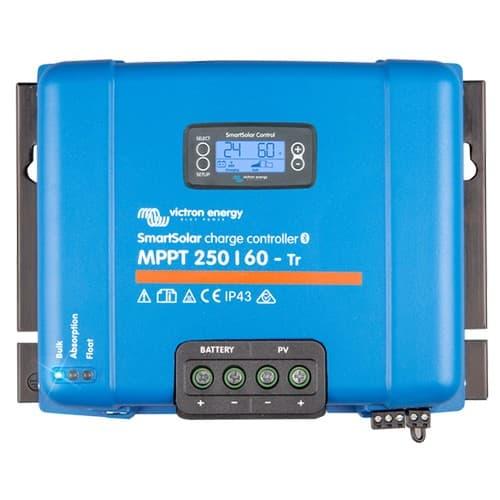

Victron Energy SmartSolar MPPT 250/60-Tr VE.Can 60A Solar Charge Controller – SCC125060221
MPN No: SCC125060221
Expected ship date Nov 07 - 14
In Stock
$435.20
Victron Energy SmartSolar MPPT 250/60-Tr VE.Can 60A Solar Charge Controller – SCC125060221
Victron Energy SmartSolar MPPT 250/60-Tr VE.Can 60A Solar Charge Controller – SCC125060221
Regular price
$435.20
LESS THAN 50
Victron Energy SmartSolar MPPT 250/60-Tr VE.Can 60A Solar Charge Controller – SCC125060221
Victron Energy SmartSolar MPPT 250/60-Tr VE.Can 60A Solar Charge Controller – SCC125060221
Available
MPN No: SCC125060221
Regular price
$435.20
Expected ship date Nov 07 - 14
U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
Regular price
$435.20
Victron Energy SmartSolar MPPT 250/60-Tr VE.Can 60A Solar Charge Controller – SCC125060221
The Victron Energy SmartSolar MPPT 250/60-Tr Solar Charge Controller | SCC125060221 is a high-performance photovoltaic battery charging solution designed for off-grid solar systems, residential battery storage, marine installations, and renewable energy applications. Featuring advanced Maximum Power Point Tracking (MPPT) technology, a 60A rated charging current, and support for 12V, 24V, and 48V battery systems, this controller efficiently converts available solar energy into controlled battery charging power.
Engineered for demanding photovoltaic installations, the SmartSolar MPPT 250/60-Tr supports a 250V maximum PV open-circuit voltage, up to 99% peak conversion efficiency, and nominal photovoltaic charging capacities of 860W at 12V, 1,720W at 24V, and 3,440W at 48V. Its advanced MPPT tracking algorithm continuously adjusts photovoltaic operating conditions to maximize available solar energy production.
The controller features integrated Bluetooth connectivity and a VE.Direct communication port, allowing users to configure charging parameters, monitor solar production, and access diagnostic information through compatible Victron monitoring equipment and the VictronConnect application. Its adaptive multi-stage charging algorithm supports multiple configurable battery charging profiles, making it suitable for compatible lead-acid and lithium battery systems.
Additional features include programmable relay functionality, remote on/off control, intelligent temperature compensation, photovoltaic reverse polarity protection, output short-circuit protection, and overtemperature protection. The terminal connection design supports secure installation in appropriately configured photovoltaic and battery storage systems.
Model identification: SCC125060221 is the SmartSolar MPPT 250/60-Tr model with VE.Direct communication. It is not the VE.Can version. VE.Can connectivity should not be assumed for this SKU.
Key Technology
- Advanced MPPT Technology: Continuously tracks the maximum power point of connected photovoltaic modules to optimize solar energy harvesting.
- 60A Rated Charging Current: Delivers controlled charging power to compatible battery systems.
- 12V, 24V, and 48V Battery Compatibility: Automatically detects supported nominal battery system voltages.
- Configurable 36V Battery Operation: Supports 36V systems when selected through compatible configuration software.
- 250V Maximum PV Input: Accommodates appropriately configured higher-voltage photovoltaic strings.
- Up to 99% Peak Efficiency: Provides highly efficient conversion of solar energy into battery charging power.
- Integrated Bluetooth: Supports wireless configuration and monitoring through the VictronConnect application.
- VE.Direct Communication: Enables connection to compatible Victron monitoring and system integration equipment.
- Adaptive Multi-Stage Charging: Uses intelligent charging algorithms designed to optimize battery charging.
- Eight Preprogrammed Charging Algorithms: Offers multiple selectable battery charging configurations.
- User-Defined Charging Profiles: Supports customization for compatible battery technologies and charging requirements.
- Automatic Temperature Compensation: Adjusts applicable charging voltages according to temperature conditions.
- Programmable Relay: Supports configurable alarm and control functions.
- Remote On/Off: Enables control through compatible external equipment.
- High-Voltage PV String Support: Provides flexibility when designing appropriately sized solar arrays.
- PV Reverse Polarity Protection: Helps protect the controller against specified incorrect photovoltaic connections.
- Output Short-Circuit Protection: Protects against specified electrical fault conditions.
- Overtemperature Protection: Provides thermal protection during excessive operating temperatures.
- Terminal Connections: Features screw-terminal connections for photovoltaic and battery wiring.
- Victron Energy System Integration: Works with compatible batteries, monitoring devices, and other Victron energy management components.
Best Uses
- Off-Grid Solar Power Systems: Provides intelligent battery charging for standalone photovoltaic installations.
- Residential Battery Storage: Supports solar charging in appropriately designed battery-based energy systems.
- 48V Battery Banks: Suitable for compatible higher-voltage battery storage installations.
- 24V Solar Systems: Provides efficient solar charging for compatible battery-powered equipment.
- 12V Solar Installations: Supports suitably sized lower-voltage photovoltaic and battery systems.
- Remote Cabins and Properties: Helps maintain battery charging where grid electricity is unavailable or limited.
- Marine Energy Systems: Supports solar battery charging in appropriately protected onboard installations.
- Mobile Power Systems: Suitable for compatible recreational vehicle and specialty mobile energy applications.
- Remote Equipment and Telecommunications: Provides charging for battery-supported electrical installations.
- Solar System Monitoring: Enables charging configuration and performance monitoring through VictronConnect.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Victron Energy |
| Manufacturer Part Number | SCC125060221 |
| Product Series | SmartSolar |
| Model | MPPT 250/60-Tr |
| Product Type | MPPT Solar Charge Controller |
| Charging Technology | Maximum Power Point Tracking (MPPT) |
| Connection Type | Screw Terminals (Tr) |
| Battery Charging Specifications | |
| Nominal Battery Voltage | 12V / 24V / 48V DC |
| Battery Voltage Selection | Automatic for 12V, 24V and 48V |
| 36V Battery Support | Yes, Manual Selection Through Compatible Software |
| Rated Battery Charging Current | 60A |
| Charging Algorithm | Adaptive Multi-Stage |
| Preprogrammed Charging Algorithms | 8 |
| User-Defined Charging Profile | Yes |
| Default Absorption Voltage at 12V | 14.4V |
| Default Absorption Voltage at 24V | 28.8V |
| Default Absorption Voltage at 36V | 43.2V |
| Default Absorption Voltage at 48V | 57.6V |
| Default Float Voltage at 12V | 13.8V |
| Default Float Voltage at 24V | 27.6V |
| Default Float Voltage at 36V | 41.4V |
| Default Float Voltage at 48V | 55.2V |
| Default Equalization Voltage at 12V | 16.2V |
| Default Equalization Voltage at 24V | 32.4V |
| Default Equalization Voltage at 36V | 48.6V |
| Default Equalization Voltage at 48V | 64.8V |
| Temperature Compensation | Configurable Charging Compensation for Applicable Battery Profiles |
| Photovoltaic Input Specifications | |
| Maximum PV Open-Circuit Voltage | 250V DC Absolute Maximum |
| Maximum PV Startup and Operating Voltage | 245V DC |
| Maximum PV Short-Circuit Current | 35A (Manufacturer Datasheet Rating) |
| Nominal PV Power at 12V | 860W |
| Nominal PV Power at 24V | 1,720W |
| Nominal PV Power at 36V | 2,580W |
| Nominal PV Power at 48V | 3,440W |
| PV Startup Voltage Requirement | Battery Voltage + 5V |
| PV Minimum Operating Voltage | Battery Voltage + 1V |
| Maximum Conversion Efficiency | 99% |
| PV Oversizing Behavior | Charging Power Is Limited Above Nominal Rating; Input Voltage and Current Limits Must Be Observed |
| Electrical Consumption and Protection | |
| Self-Consumption at 12V | Less Than 35mA |
| Self-Consumption at 48V | Less Than 20mA |
| PV Reverse Polarity Protection | Yes |
| Output Short-Circuit Protection | Yes |
| Overtemperature Protection | Yes |
| Integrated DC Load Output | No |
| Communication and Control | |
| Integrated Bluetooth | Yes |
| Mobile Monitoring Application | VictronConnect |
| Communication Port | VE.Direct |
| VE.Can Communication | No – Not the VE.Can Variant |
| Remote On/Off | Yes, Two-Pole Connector |
| Programmable Relay | Yes, DPST |
| Relay AC Rating | 240V AC / 4A |
| Relay DC Rating | 4A up to 35V DC; 1A up to 60V DC |
| Bluetooth Synchronization | Supported with Compatible SmartSolar Controllers |
| Compatible Monitoring Equipment | Victron Devices Supporting VE.Direct Integration |
| Mechanical and Environmental Specifications | |
| Dimensions (H × W × D) | 7.28 × 9.84 × 3.74 in |
| Weight | 6.61 lb |
| Enclosure Color | Blue (RAL 5012) |
| PV Terminal Capacity | 35 mm² / AWG 2 |
| Battery Terminal Capacity | 35 mm² / AWG 2 |
| Protection Rating – Electronics | IP43 |
| Protection Rating – Connection Area | IP22 |
| Operating Temperature Range | -30°C to +60°C (-22°F to +140°F) |
| Full Rated Output Temperature | Up to +40°C (104°F) |
| Maximum Relative Humidity | 95%, Non-Condensing |
| Maximum Operating Altitude | 5,000 m |
| Full Rated Output Altitude | Up to 2,000 m |
| Environmental Classification | Indoor, Unconditioned |
| Pollution Degree | PD3 |
| Standards and Warranty | |
| Safety Standards Listed | EN/IEC 62109-1, UL 1741, CSA C22.2 |
| Manufacturer Warranty | 5 Years, Subject to Applicable Manufacturer Terms |
About Victron Energy
Victron Energy develops power conversion, battery charging, solar energy management, and monitoring technologies for renewable energy and battery-based electrical systems.
The company's product portfolio includes MPPT solar charge controllers, pure sine wave inverters, inverter/chargers, DC-DC converters, battery monitors, and system communication equipment.
Victron Energy products are used in residential, marine, mobile, off-grid, and backup power applications worldwide.
High-Efficiency Solar Charging with Victron SmartSolar Technology
The Victron Energy SmartSolar MPPT 250/60-Tr 60A Solar Charge Controller SCC125060221 combines advanced MPPT energy harvesting, high-voltage photovoltaic input capability, adaptive battery charging, integrated Bluetooth, VE.Direct communication, and programmable control features. Designed for compatible battery-based solar installations, it provides an efficient and flexible charging solution for off-grid, residential, marine, and renewable energy applications.
