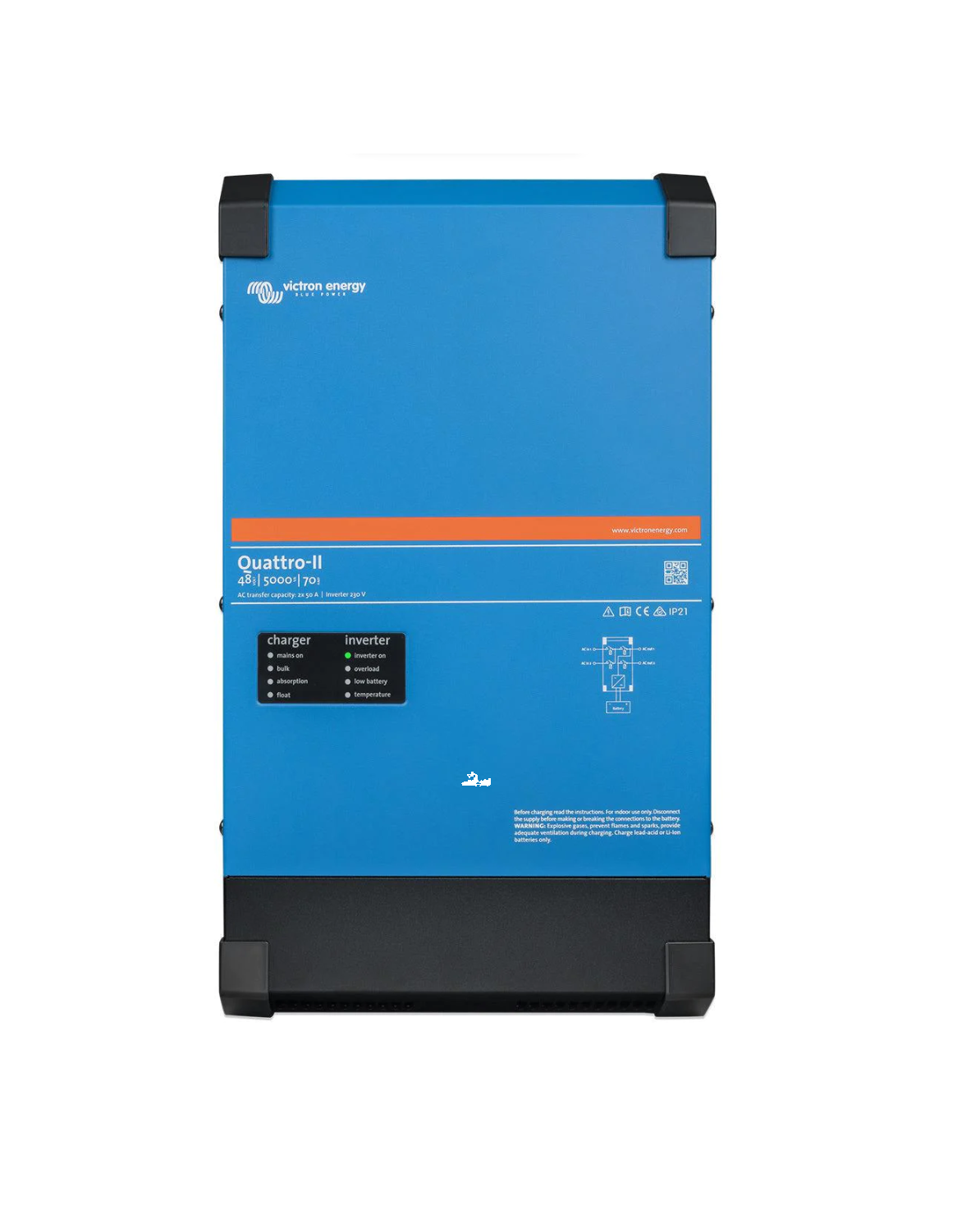

Victron Quattro-II 48/5000/70-50 230V Inverter / Charger

Victron Quattro-II 48/5000/70-50 230V Inverter / Charger

Regular price $1,795
Sale price $1,795 Regular price
SOLD OUT
Leave a Review

MPN No: 48/5000/70-50

Victron Quattro-II 48/5000/70-50 230V Inverter / Charger

Victron Quattro-II 48/5000/70-50 230V Inverter / Charger

Regular price $1,795
Sale price $1,795 Regular price

View full details
.PDF
Datasheet
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Victron Energy
Weight
63.9 lb
Dimension
22.2 x 12.6 x 5.8 inches

Victron Quattro-II 48/5000/70-50 230V Inverter / Charger

The Victron Quattro-II redefines power management with its advanced Energy Storage System (ESS) functionality. Designed to connect seamlessly to two independent AC sources, this inverter/charger ensures continuous power supply with intelligent management of grid or generator power.

  • Automatic connection to the active AC source, with fast switching to maintain uninterrupted power.
  • PowerControl and PowerAssist functions to optimize grid or generator capacity, preventing overloads.
  • Compatibility with off-grid, grid-connected PV, and other alternative energy systems.
  • Dual AC outputs including a no-break main output for critical loads and a secondary output for non-essential loads.
  • Scalable up to 6 units in parallel for increased power output or three-phase setups.

Technology and Overview

Incorporates cutting-edge features for efficient power management, supporting a wide range of applications from residential to commercial settings.

Installation and Compatibility Overview

Designed for easy installation and compatibility with various systems, ensuring flexible integration into any energy setup.

Benefits and Applications Overview

Offers significant benefits including energy efficiency, system reliability, and versatile application across multiple energy systems.

Specifications

Specification Values
Quattro-II 48/5000/70-50
PowerControl & PowerAssist Yes
Transfer switch 50 A
Maximum AC input current 50 A
DC Input voltage range 38-66 V
Output Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1% (1)
Cont. output power at 25°C (3) 5000 VA
Cont. output power at 25°C 4000 W
Cont. output power at 40°C 3700 W
Cont. output power at 65°C 3000 W
Maximum apparent feed-in power 5000 VA
Peak power 9000 W
Maximum efficiency 96%
Zero load power 18 W
Zero load power in AES mode 12 W
Zero load power in Search mode 2 W
AC Input Input voltage range: 187-265 VAC
Input frequency: 45 – 65 Hz power factor: 1
Charge voltage 'absorption' 28,8 / 57,6 V
Charge voltage 'float' 27,6 / 55,2 V
Storage mode 26,4 / 52,8 V
Max. battery charge current (4) 70 A
Battery temperature sensor Yes
Auxiliary output Yes (32A) Default setting: switches off when in inverter mode
Programmable relay (5) Yes
Protection (2) a – g
VE.Bus communication port For parallel and three phase operation,
remote monitoring and system integration
General purpose com. port Yes, 2x
Remote on-off Yes
Operating temperature range -40 to +65°C (fan assisted cooling)
Humidity (non-condensing) max 95%
Material & Colour Steel, blue RAL 5012
Protection category IP21
Battery-connection M8 bolts
230 V AC-connection Screw terminals 13 mm² (6 AWG)
Safety EN-IEC 60335-1, EN-IEC 60335-2-29,
EN-IEC 62109-1, EN-IEC 62109-2
Emission, Immunity EN 55014-1, EN 55014-2
EN-IEC 61000-3-2, EN-IEC 61000-3-3
IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Uninterruptible power supply Please consult the certificates on our website.
Anti-islanding Please consult the certificates on our website.
Warranty 5 years / extensions up to 10
