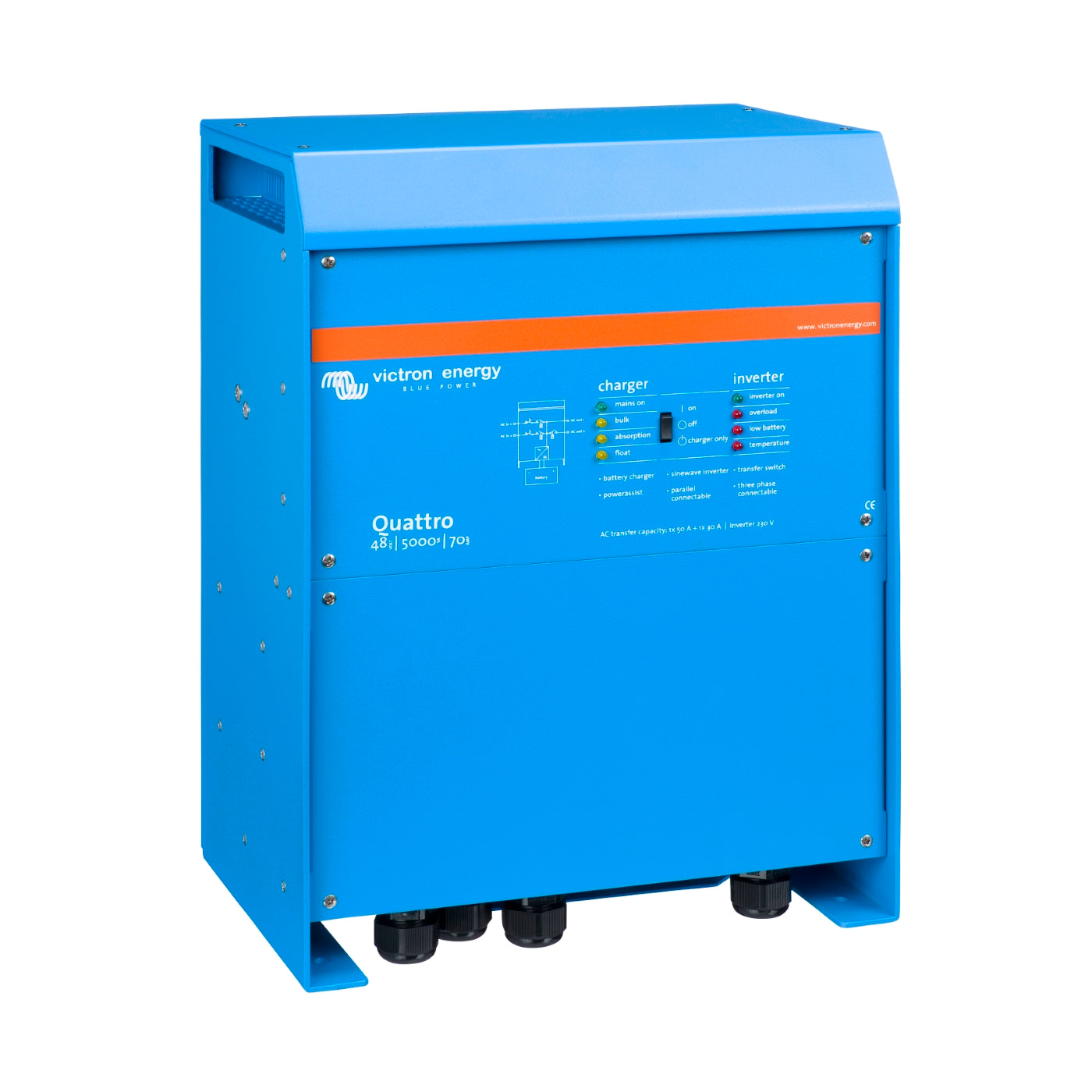

Victron Quattro 48/5000/70-100/100 230V Inverter / Charger

Victron Quattro 48/5000/70-100/100 230V Inverter / Charger

$1,900
-% $1,900
SOLD OUT
Leave a Review

Victron Quattro 48/5000/70-100/100 230V Inverter / Charger

Victron Quattro 48/5000/70-100/100 230V Inverter / Charger

Victron Energy
MPN No: 48/5000/70-100/100
Out Of Stock
$1,900
-% $1,900

Delivery

Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.

Contact us for Delivery Date

Payment

We offer multiple secure payment options for your convenience

All Victron Energy products All Inverters products

View full details
$1,900
-% $1,900
Victron Quattro 48/5000/70-100/100 230V Inverter / Charger

Victron Quattro 48/5000/70-100/100 230V Inverter / Charger

Victron Quattro 48/5000/70-100/100 230V Inverter / Charger

MPN No:

48/5000/70-100/100

Out Of Stock
Contact us for Delivery Date
$1,900
-% $1,900
Sold out

Specifications

.PDF
Documents
.PDF
Documents
Data Sheet
Download

Victron Quattro 48/5000/70-100/100 230V Inverter / Charger

Discover the Victron Quattro 48/5000/70-100/100 230V Inverter / Charger, a robust and versatile energy solution designed for exceptional power management. Perfect for a wide array of applications, this inverter/charger combines reliability with the flexibility to adapt to any power system, ensuring efficient and uninterrupted energy supply.

  • Seamless integration with two independent AC sources for continuous power availability.
  • Fast switching (less than 20 milliseconds) between power sources to maintain uninterrupted supply to sensitive electronics.
  • PowerControl and PowerAssist functionalities to optimize energy use and prevent overloading of the power source.
  • Capability to support off-grid, grid-connected, and hybrid systems, enhancing energy independence and resilience.
  • Advanced configuration options for parallel and three-phase setups, accommodating larger energy demands.

Technology and Overview

The Quattro is engineered with cutting-edge technology to ensure optimal performance, featuring dual AC inputs, integrated transfer switch, and robust charging capabilities, making it a cornerstone for any sophisticated power system.

Installation and Compatibility Overview

Designed for ease of installation and wide compatibility, the Victron Quattro integrates seamlessly into various power setups, from residential to commercial and mobile applications, offering flexible and reliable power solutions.

Benefits and Applications Overview

This inverter/charger brings unmatched efficiency and reliability to power management, supporting environmental sustainability and cost-saving through intelligent energy use, suitable for a wide range of applications.

Specifications

Specification Values
Quattro 48/5000/70-100/100
PowerControl / PowerAssist Yes
Integrated Transfer switch Yes
AC inputs (2x) Input voltage range: 187-265 VAC Input frequency: 45 – 65 Hz Power factor: 1
Maximum feed through current (A) 2x100
Input voltage range (V DC) 9,5 – 17V 19 – 33V 38 – 66V
Output (1) Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1%
Cont. output power at 25°C (VA) (3) 5000
Cont. output power at 25°C (W) 4000
Cont. output power at 40°C (W) 3700
Cont. output power at 65°C (W) 3000
Peak power (W) 10000
Maximum efficiency (%) 94 / 94 / 95
Zero load power (W) 30 / 30 / 35
Zero load power in AES mode (W) 20 / 25 / 30
Zero load power in Search mode (W) 10 / 10 / 15
Charge voltage 'absorption' (V DC) 14,4 / 28,8 / 57,6
Charge voltage 'float' (V DC) 13,8 / 27,6 / 55,2
Storage mode (V DC) 13,2 / 26,4 / 52,8
Charge current house battery (A) (4) 220 / 120 / 70
Charge current starter battery (A) 4 (12V and 24V models only)
Battery temperature sensor Yes
Auxiliary output (A) (5) 50
Programmable relay (6) 3x
Protection (2) a-g
VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration
General purpose com. port 2x
Remote on-off Yes
Common Characteristics Operating temp.: -40 to +65?C Humidity (non-condensing): max. 95%
Maximum altitude 3500 m
Common Characteristics Material & Colour: aluminium (blue RAL 5012) Protection category: IP 21
Battery-connection Four M8 bolts (2 plus and 2 minus connections)
230 V AC-connection Bolts M6
Safety EN-IEC 60335-1, EN-IEC 60335-2-29, EN-IEC 62109-1
Emission, Immunity EN 55014-1, EN 55014-2, EN-IEC 61000-3-2, EN-IEC 61000-3-3, IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Road vehicles 12V and 24V models: ECE R10-4
Anti-islanding See our website
Warranty 5 years / extensions up to 10
