Victron MultiPlus-II 48V 5kVA 120V AC Output 70A Battery Charger 48/5000/70-95 120V Residential Inverter Charger
MPN No: PMP482505110
Contact us for Delivery Date
Out Of Stock
$1,244.10
Victron MultiPlus-II 48V 5kVA 120V AC Output 70A Battery Charger 48/5000/70-95 120V Residential Inverter Charger
Victron MultiPlus-II 48V 5kVA 120V AC Output 70A Battery Charger 48/5000/70-95 120V Residential Inverter Charger
Regular price
$1,244.10
SOLD OUT
Victron MultiPlus-II 48V 5kVA 120V AC Output 70A Battery Charger 48/5000/70-95 120V Residential Inverter Charger
Victron MultiPlus-II 48V 5kVA 120V AC Output 70A Battery Charger 48/5000/70-95 120V Residential Inverter Charger
Out Of Stock
MPN No: PMP482505110
Regular price
$1,244.10
Data Sheet
U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
Regular price
$1,244.10
Victron MultiPlus-II 48V 5kVA 120V AC Output 70A Battery Charger 48/5000/70-95 120V Residential Inverter Charger
MPN No:
PMP482505110
Contact us for Delivery Date
Sold out

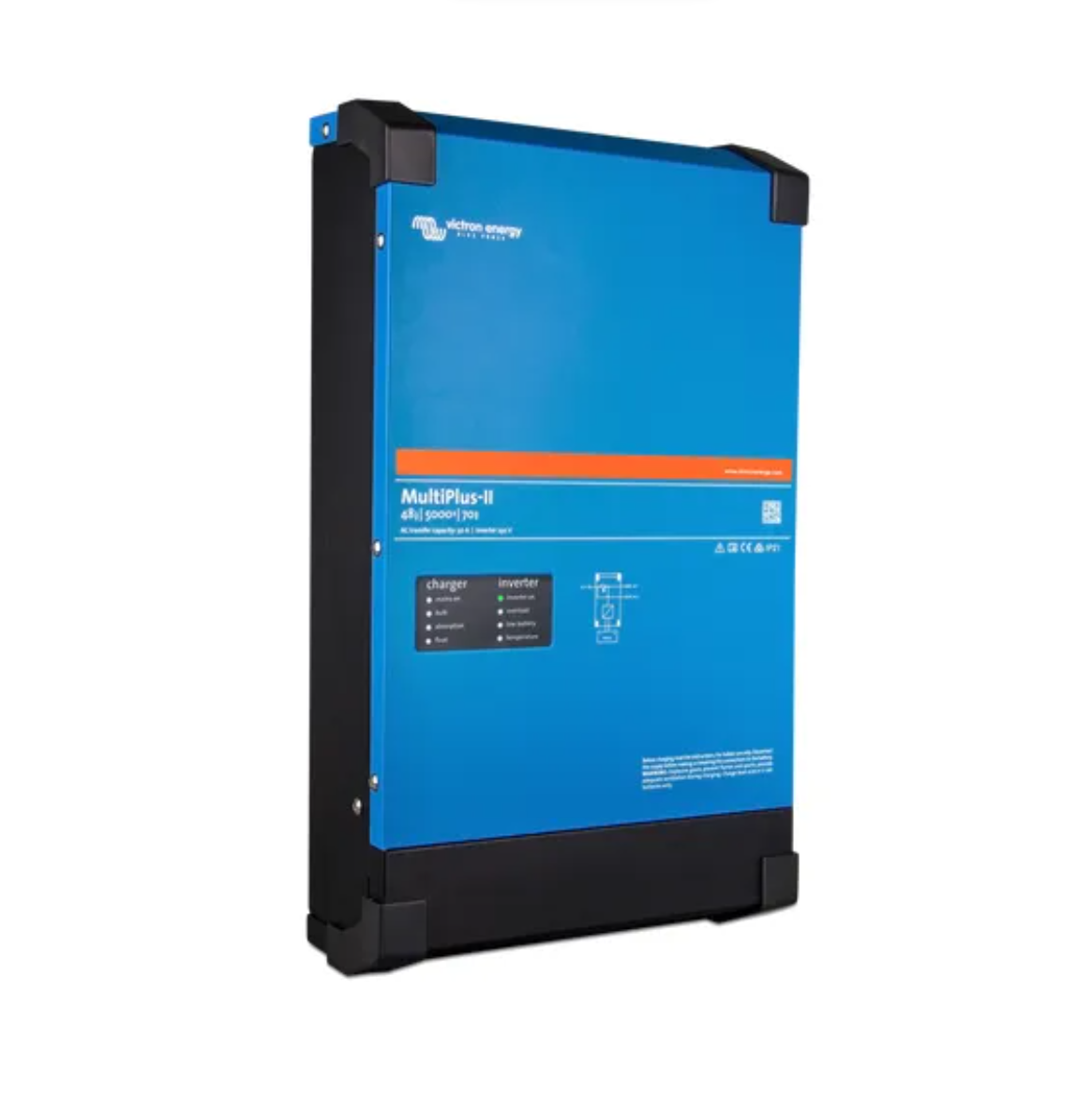

Victron MultiPlus-II 48/5000/70-95 120V Inverter/Charger
Introducing the Victron MultiPlus-II 48/5000/70-95 120V, a versatile inverter/charger designed for advanced energy systems. This model combines powerful inverter capabilities with a high-capacity charger, making it perfect for off-grid, backup, and solar-powered systems.
- Powerful inverter with a continuous output of 5000VA and a peak power of 9000W for high-demand appliances.
- Advanced battery charging with a 70A charger and a 95A transfer switch for efficient energy management.
- Dual AC outputs for critical load support during grid outages, ensuring uninterrupted power supply.
- Seamless integration with solar, grid, and generator power, supporting a wide range of energy setups.
- Remote monitoring and control for easy management of your energy system, enhancing user convenience.
Technology and Overview
Equipped with cutting-edge technology for optimal performance, the MultiPlus-II ensures reliable power conversion and smart battery management, making it a cornerstone for any sophisticated energy system.
Installation and Compatibility Overview
Designed for ease of installation and broad compatibility with energy systems, the MultiPlus-II offers flexible solutions for both new and existing setups.
Benefits and Applications Overview
Whether for home, marine, or mobile applications, the MultiPlus-II delivers unmatched efficiency, reliability, and user control, making it an essential component for achieving energy independence and sustainability.
| Specification | Values |
| Model (MultiPlus-II 120V) | 48/5000/70-95 |
| PowerControl & PowerAssist | Yes |
| Transfer switch | 95A |
| Maximum AC input current | 95A |
| DC Input voltage range | 38 – 66 V |
| Output | Output voltage: 120 VAC ± 2% Frequency: 60 Hz ± 0,1% (1) |
| Cont. output power at 25°C (3) | 5000 VA |
| Cont. output power at 25°C | 4000 W |
| Cont. output power at 40°C | 3700 W |
| Cont. output power at 65°C | 3000 W |
| Peak power | 9000 W |
| Maximum efficiency | 96% |
| Zero load power | 15 W |
| Zero load power in AES mode | 10 W |
| Zero load power in Search mode | 3 W |
| AC Input | Input voltage range: 90-140 VAC Input frequency: 45 – 65 Hz |
| Charge voltage 'absorption' | 57,6 V |
| Charge voltage 'float' | 55,2 V |
| Storage mode | 52,8 V |
| Max. battery charge current 4) | 70 A |
| Battery temperature sensor | Yes |
| Auxiliary output (5) | 48 A |
| External AC current sensor (optional) |
100 A |
| Programmable relay (6) | Yes |
| Protection (2) | a – g |
| VE.Bus communication port | For parallel, split phase and three phase operation, remote monitoring and system integration |
| General purpose com. port (7) | Yes, 2x |
| Remote on-off | Yes |
| Operating temperature range | -40 to +60°C (-40 – 140 °F) (fan assisted cooling) |
| Humidity (non-condensing) | max 95% |
| Material & Colour | Steel, blue RAL 5012 |
| Protection category | IP22 |
| Battery-connection | M8 bolts |
| 120 V AC-connection | 35 mm² (2 AWG) |
| Listings | UL1741 pending |
| Safety | EN-IEC 60335-1, EN-IEC 60335-2-29, CSA 22.2 107.1-16 |
| Emission, Immunity | EN 55014-1, EN 55014-2 EN-IEC 61000-3-2, EN-IEC 61000-3-3 IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3 |
| Warranty | 5 years / extensions up to 10 |
