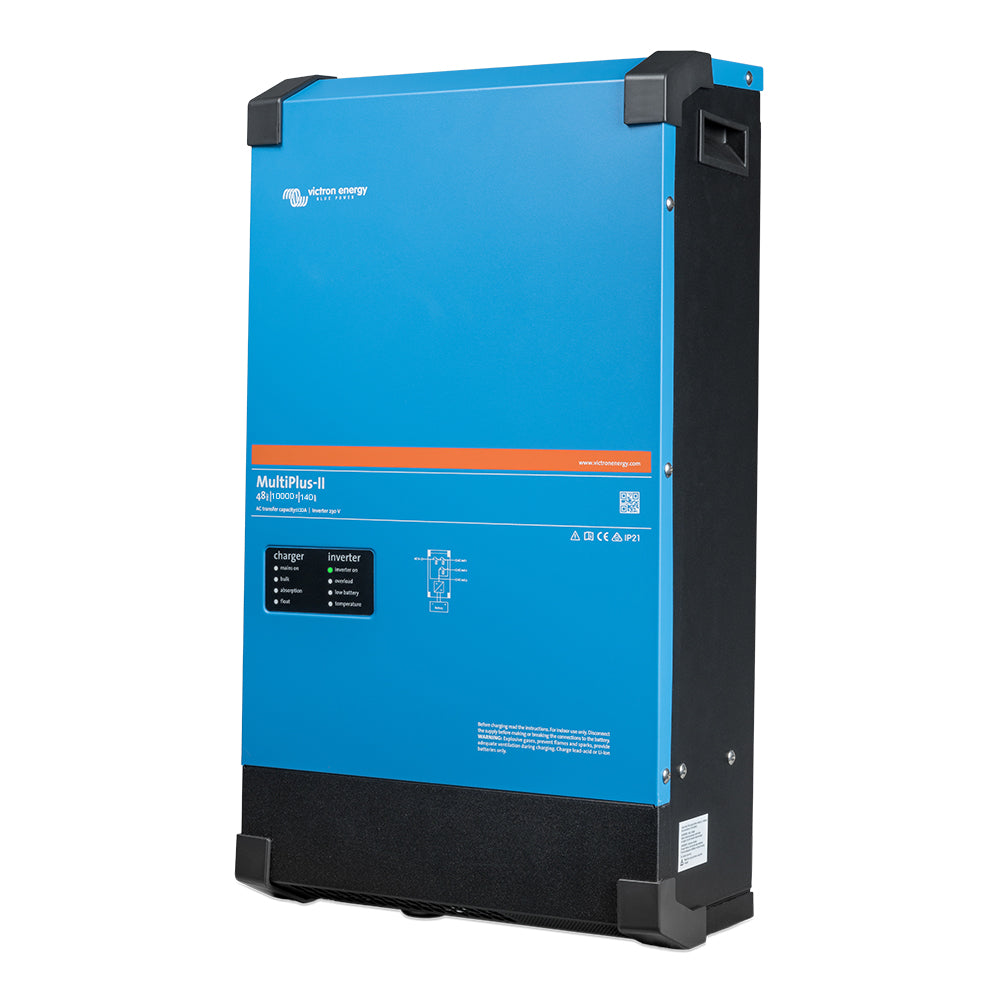

Victron MultiPlus-II 48/10000/140-100 230V Inverter / Charger

Presenting the Victron MultiPlus-II 48/10000/140-100 230V, a versatile inverter/charger offering robust performance for various applications. It's an ideal solution for marine, yachting, vehicle, and off-grid installations, providing reliable power management with advanced features.

  • High power output and efficient inverter/charger capabilities for diverse energy needs.
  • Advanced PowerControl and PowerAssist functionalities to optimize grid or generator use.
  • Seamless integration with solar energy systems, supporting both solar chargers and grid-tie inverters.
  • Dual AC outputs for uninterrupted power supply and dedicated high-power applications.
  • Capability for parallel and three-phase operation, scaling up power solutions for larger systems.

Technology and Overview

The MultiPlus-II combines inverter and charger functions with innovative technology, offering efficient power conversion, battery charging, and seamless transition between connected power sources.

Installation and Compatibility Overview

Designed for flexibility in installation, it's compatible with a broad range of systems, offering a reliable power solution for both grid-connected and off-grid scenarios.

Benefits and Applications Overview

This inverter/charger is not just a power solution but also an integral part of efficient energy systems, contributing to sustainable power management in various settings.

Specification Values
Model (MultiPlus-II 230V) 48/10000/140-100
PowerControl & PowerAssist Yes
Transfer switch 100 A
Maximum AC input current 100 A
DC Input voltage range 12V - 9,5–17V 24V - 19–33V 48V – 38-66 V
Output Output voltage: 230 VAC ± 2% Frequency: 50 Hz ± 0,1% (1)
Cont. output power at 25°C (3) 10000 VA
Cont. output power at 65°C 6000 W
Max apparent feed-in power 10000 VA
Peak power 18000 W
Maximum efficiency 96%
Zero load power 38 W
Zero load power in AES mode 27 W
Zero load power in Search mode 4 W
AC Input Input voltage range: 187-265 VAC
Input frequency: 45 – 65 Hz
Charge voltage 'absorption' 14,4 / 28,8 / 57,6 V
Charge voltage 'float' 13,8 / 27,6 / 55,2 V
Storage mode 13,2 / 26,4 / 52,8 V
Max. battery charge current (4) 140 A
Battery temperature sensor Yes
Auxiliary output Yes (50A)
External AC current sensor (optional) 50A or 100A
Programmable relay  (5) Yes
Operating temperature range -40 to +65°C (fan assisted cooling)
Humidity (non-condensing) max 95%
Material & Colour Steel, blue RAL 5012
Protection category IP22
Battery-connection Four M8 bolts
(2 plus and 2 minus connections)
230 V AC-connection Bolts M6
Safety EN-IEC 60335-1, EN-IEC 60335-2-29,
EN-IEC 62109-1, EN-IEC 62109-2
Emission, Immunity EN 55014-1, EN 55014-2
EN-IEC 61000-3-2, EN-IEC 61000-3-3
IEC 61000-6-1, IEC 61000-6-2, IEC 61000-6-3
Uninterruptible power supply Please consult the certificates on our website.
Anti-islanding Please consult the certificates on our website.
Warranty 5 years / extensions up to 10
