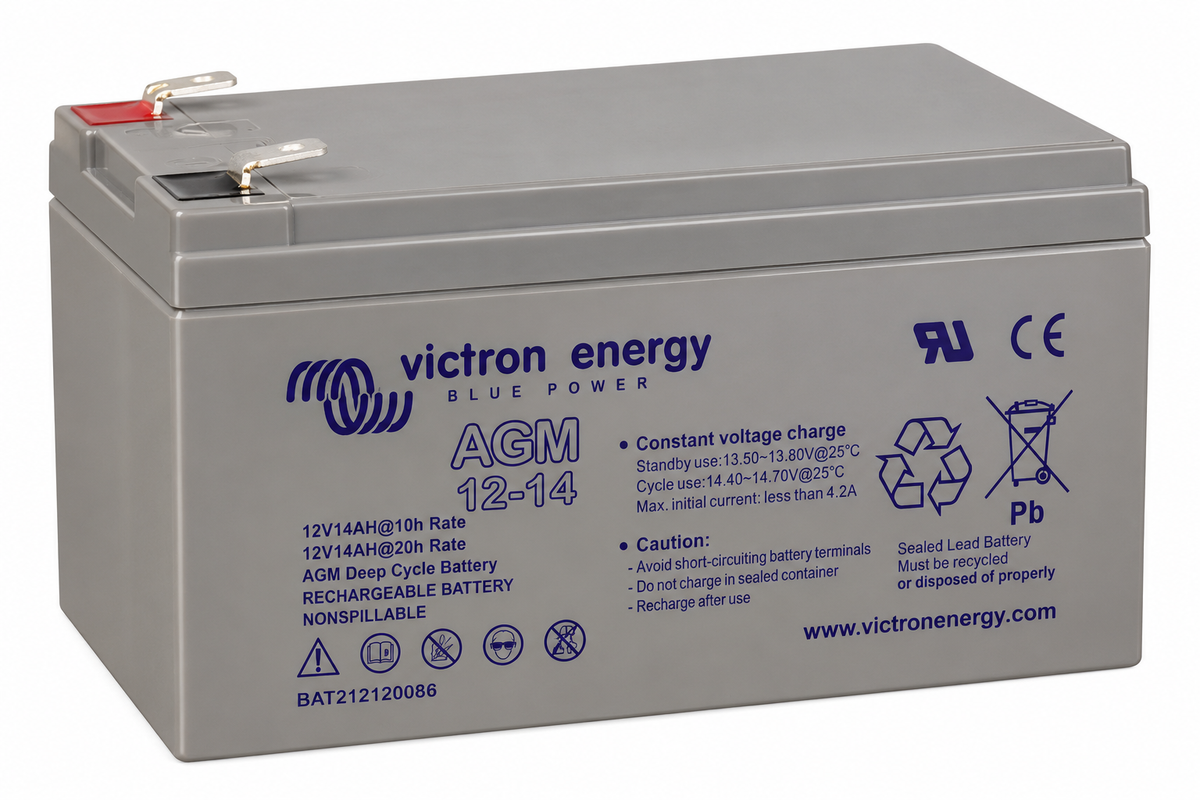

Victron Energy 12V 14Ah AGM Deep Cycle Battery BAT212120086
MPN No: BAT212120086
Expected ship date Nov 07 - 14
In Stock
$41.65
Victron Energy 12V 14Ah AGM Deep Cycle Battery BAT212120086
Victron Energy 12V 14Ah AGM Deep Cycle Battery BAT212120086
Regular price
$41.65
LESS THAN 50
Victron Energy 12V 14Ah AGM Deep Cycle Battery BAT212120086
Victron Energy 12V 14Ah AGM Deep Cycle Battery BAT212120086
Available
MPN No: BAT212120086
Regular price
$41.65
Expected ship date Nov 07 - 14
SPEC_BAT212120086 _USSS
U.S. Warehouse
Trusted by Thousands
Expert U.S. Support
Regular price
$41.65
Victron Energy 12V 14Ah AGM Deep Cycle Battery BAT212120086
MPN No:
BAT212120086
Expected ship date Nov 07 - 14
Victron Energy 12V 14Ah AGM Deep Cycle Battery BAT212120086
The Victron Energy BAT212120086 is a sealed, maintenance-free 12V 14Ah AGM Deep Cycle Battery designed for reliable energy storage in off-grid power systems, backup power applications, and compatible DC electrical installations. Built with advanced Absorbent Glass Mat (AGM) technology, this battery delivers dependable performance, low self-discharge, and excellent recovery characteristics.
Using Valve Regulated Lead Acid (VRLA) technology, the Victron AGM Deep Cycle Battery features a sealed construction with safety valves that release gas only under abnormal conditions, such as excessive charging or cell failure. Its AGM design immobilizes the electrolyte within a fiberglass separator, allowing efficient power delivery without routine electrolyte maintenance.
Engineered for both cyclic and standby applications, the battery features a 7–10 year design float service life at 20°C and a cycle life of up to 1,500 cycles at 30% depth of discharge under the manufacturer's stated conditions. Its low self-discharge characteristics make it especially suitable for backup systems and equipment that may remain unused for extended periods.
Key Technology
- 12V AGM Deep Cycle Technology: Provides rechargeable energy storage for compatible low-voltage DC applications.
- 14Ah Rated Capacity: Delivers nominal battery capacity measured using a 20-hour discharge rate at 25°C.
- Sealed VRLA Construction: Uses valve-regulated lead-acid technology for maintenance-free operation.
- Absorbent Glass Mat Design: Electrolyte is absorbed into fiberglass separators between the battery plates.
- Maintenance-Free Operation: Eliminates routine electrolyte refilling under normal operating conditions.
- Excellent High-Current Performance: AGM technology is well suited for applications requiring short-duration current delivery.
- Low Self-Discharge: Self-discharge is less than 2% per month at 20°C under the manufacturer's stated conditions.
- Deep Discharge Recovery: Designed with favorable recovery characteristics following deep or prolonged discharge.
- Extended Float Service Life: Offers a design float life of 7–10 years at 20°C.
- Deep Cycle Capability: Supports repeated charging and discharging within the manufacturer's recommended operating limits.
- Copper Terminals: Provides conductive electrical connection points for compatible battery cabling.
- Adaptive Charging Compatibility: Suitable for use with properly configured chargers supporting the recommended AGM charging profile.
- Temperature-Compensated Charging: Supports charging voltage adjustments to account for changes in battery temperature.
- Reliable Standby Energy Storage: Suitable for backup power systems requiring dependable stored DC electricity.
Best Uses
- Off-Grid Solar Power Systems: Suitable for appropriately sized low-voltage solar energy storage applications.
- Backup Power Systems: Provides stored DC electricity for compatible backup equipment.
- Uninterruptible Power Supplies: Suitable for UPS applications designed for AGM lead-acid batteries.
- DC Control and Monitoring Equipment: Supports compatible low-voltage electrical and electronic systems.
- Telecommunications Backup Equipment: Provides battery backup for appropriately configured communication systems.
- Security and Alarm Systems: Suitable for compatible standby power applications.
- Small Renewable Energy Installations: Supports low-capacity renewable energy storage configurations.
- Emergency DC Power Applications: Provides rechargeable energy storage for properly engineered emergency power equipment.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Victron Energy |
| Manufacturer Part Number | BAT212120086 |
| Product Series | AGM Deep Cycle |
| Product Type | Rechargeable AGM Deep Cycle Battery |
| Battery Chemistry | Sealed Lead-Acid (VRLA) |
| Battery Technology | Absorbent Glass Mat (AGM) |
| Nominal Voltage | 12V DC |
| Rated Capacity | 14Ah |
| Nominal Energy Capacity | 168Wh (Calculated from Nominal Voltage × Rated Capacity) |
| Capacity Rating Method | 20-Hour Discharge at 25°C |
| Battery Plate Technology | Flat-Plate AGM |
| Terminal Material | Copper |
| Maintenance Requirement | Maintenance-Free |
| Battery Construction | Sealed, Valve-Regulated |
| Dimensions and Weight | |
| Dimensions (L × W × H) | 5.94 × 3.86 × 3.98 in |
| Weight | 9.70 lb |
| Battery Performance | |
| Design Float Service Life at 20°C | 7–10 Years |
| Design Float Service Life at 30°C | Approximately 4 Years |
| Design Float Service Life at 40°C | Approximately 2 Years |
| Cycle Life at 80% Depth of Discharge | 400 Cycles |
| Cycle Life at 50% Depth of Discharge | 600 Cycles |
| Cycle Life at 30% Depth of Discharge | 1,500 Cycles |
| Self-Discharge Rate at 20°C | Less Than 2% Per Month |
| Maximum Short-Duration Discharge Current | 8C for 5 Seconds (AGM Series Rating) |
| Charging Specifications | |
| Recommended Absorption Voltage – Normal Cycle Service | 14.2–14.6V |
| Recommended Absorption Voltage – Fastest Recharge | 14.6–14.9V |
| Recommended Float Voltage | 13.5–13.8V |
| Recommended Storage Voltage | 13.2–13.5V |
| Preferred Maximum Charge Current | 0.2C (Approximately 2.8A for This Battery) |
| Recommended Temperature Compensation | -4mV/°C per Cell (-24mV/°C for a 12V Battery) |
| Temperature Compensation Reference | 25°C |
| Charging Technology | Compatible with Properly Configured Multi-Stage AGM Chargers |
| Additional Characteristics | |
| Low Self-Discharge | Yes |
| Deep Discharge Recovery | Yes |
| Valve-Regulated Construction | Yes |
| Electrolyte Refilling Required | No |
| Suitable for Float Service | Yes |
| Suitable for Cyclic Service | Yes |
About Victron Energy:
Victron Energy is a Netherlands-based manufacturer specializing in power conversion, battery charging, energy storage, and off-grid electrical equipment.
The company's product portfolio includes batteries, inverters, inverter/chargers, solar charge controllers, monitoring systems, and electrical accessories for a wide range of renewable energy and backup power applications.
Victron Energy products are widely used in off-grid solar installations, marine electrical systems, mobile power applications, and professional energy storage solutions.
Dependable AGM Deep Cycle Energy Storage from Victron Energy
The Victron Energy 12V 14Ah AGM Deep Cycle Battery BAT212120086 combines sealed VRLA construction, maintenance-free operation, low self-discharge, and reliable deep cycle performance. Designed for compatible off-grid, standby, and backup power applications, this compact AGM battery provides dependable rechargeable DC energy storage backed by Victron Energy's established battery technology.
