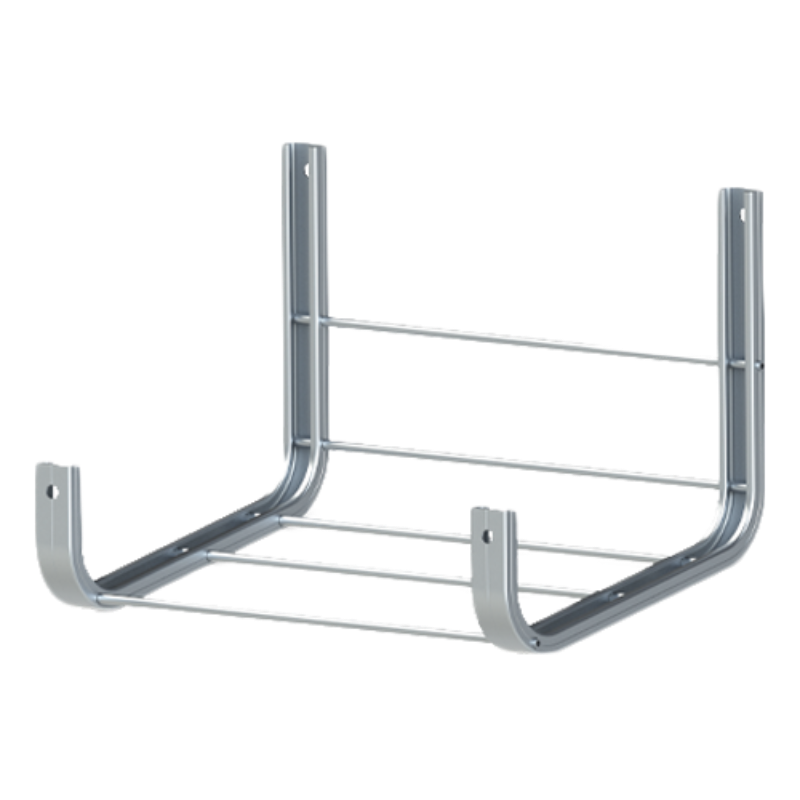

Unirac RoofMount RM10 EVO 370010 Field Ballast Bay

Key Features:

• Design Efficiency: The RM10 EVO system comprises only three major components: the fully assembled ballast bay, a tucked north row bay, and a redesigned universal module clamp, streamlining preparation and installation time.

• Enhanced Module Density: The re-engineered north row bays and shorter inter-row spacing improve aesthetics and allow for increased module density by up to 20%, maximizing roof space utilization.

• Integrated Bonding: Features integrated bonding with a single-tool installation, ensuring electrical continuity and reducing the need for additional grounding components.

• Optional Accessories: Compatible with optional roof pads, flat roof attachments, and MLPE mounts, providing a comprehensive solution adaptable to various project requirements.

Specifications:

• Part Number: 370010

• Tilt Angle: 10 degrees

• Material: Mill finish aluminum

• Dimensions: Approximately 21.19 inches (length) x 17.44 inches (width) x 13 inches (height)

• Weight: Approximately 3.25 lbs

• Module Compatibility: Supports most framed PV modules, including conventional, bi-facial, and large-format modules

• Installation Components: Includes the ballast bay; other components such as module clamps and roof pads are available separately

Installation Overview:

1. Array Layout: Mark the roof area according to the construction documents, ensuring alignment with chalk lines for accurate placement.

2. Ballast Bay Placement: Position the ballast bays along the marked lines, utilizing optional spacers for consistent spacing.

3. Module Clamping: Attach the module clamps to the ballast bays, secure the PV modules in place, and tighten the clamps to the specified torque.

4. Ballast Installation: Place the appropriate number of ballast blocks into each bay configuration as per the project's engineering requirements.

5. Electrical Bonding: Ensure integrated bonding is achieved through the system's design; additional grounding may be required based on local codes.

6. Optional Accessories: Install roof pads or attachments if specified, following manufacturer guidelines.

Why Choose Unirac?

With over 20 years of experience, Unirac is a frontrunner in the solar racking and mounting industry. Headquartered in Albuquerque, New Mexico, Unirac's portfolio includes both rail-based and non-rail solutions designed for residential, commercial, and utility-scale applications.

Products like the Unirac SolarMount and Unirac RoofMount are some the most in demand for their ease of installation, allowing for quick deployment without sacrificing structural integrity or aesthetic appeal. Their solutions are engineered to adapt to various roof types and environmental conditions, providing reliable support that maximizes system performance.
Demonstrating confidence in their designs, Unirac offers a robust 25-year warranty on their products.
