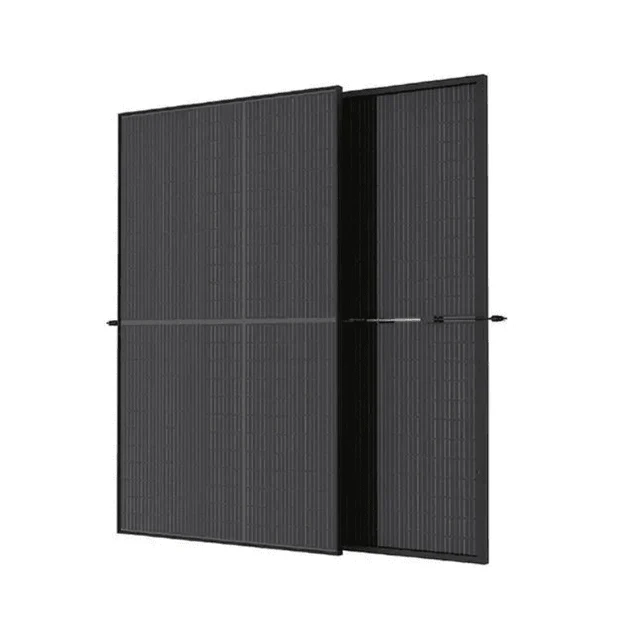

Trina Solar 385W Vertex S TSM-DE09C.07 120 Cell Mono Solar Panel Pallet Of 12 Modules

Trina Solar 385W Vertex S TSM-DE09C.07 120 Cell Mono Solar Panel Pallet Of 12 Modules

Regular price $2,429.99
Sale price $2,429.99 Regular price
50 IN STOCK
Leave a Review

MPN No: TSM-DE09C.07 385W - PLT

Trina Solar 385W Vertex S TSM-DE09C.07 120 Cell Mono Solar Panel Pallet Of 12 Modules

Trina Solar 385W Vertex S TSM-DE09C.07 120 Cell Mono Solar Panel Pallet Of 12 Modules

Regular price $2,429.99
Sale price $2,429.99 Regular price

1
2
3
4
5
6

View full details
.PDF
Datasheet
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Trina Solar
Weight
46.3 lb
Dimension
69.06 x 43.15 x 1.18 inches

Trina Solar 385W Vertex S TSM-DE09C.07 120 Cell Mono Solar Panel

Transparent Backsheet (Pallet Of 12 Modules)

Data Sheet

High value

 • More productivity from same roof size.

 • Outstanding visual appearance.

 • Leading 210mm cell technology.



Small in size, big on power

• Small format module allow greater energy generation in limited space.

 • Up to 405W, 21.1% module efficiency with high density interconnect technology.

 • Multi-busbar technology for better light trapping eect, lower series resistance and improved current.

• Reduce installation cost with higher power bin and efficiency.

• Boost performance in warm weather with lower temperature coefficient (-0.34%) and operating temperature.

Universal solution for residential and C&I rooftops

 • Designed for compatibility with existing mainstream optimizers, inverters and mounting systems.

 • Perfect size and low weight makes handling and transportation easier and more cost-eective.

 • Diverse installation solutions for exibility in system deployment

High Reliability

 • 25 year product warranty.

 • 25 year performance warranty with lowest degradation.

 • Minimized micro-cracks with innovative non-destructive cutting technology.

• Ensured PID resistance through cell process and module material control.

• Mechanical performance up to +6000 Pa and-4000 Pa negative load

Special Features

  • High Power Output: Provides up to 410W of power, maximizing energy production in a compact form factor suitable for a variety of installations.
  • Advanced Mono PERC Technology: Incorporates Mono PERC (Passivated Emitter Rear Contact) technology, enhancing efficiency and overall energy yield.
  • 144 Half-Cell Design: The half-cell configuration reduces resistive losses and improves performance, especially in shaded conditions.
  • Aesthetic Design: With a sleek, all-black appearance, this panel is ideal for installations where visual appeal is a priority.

Technology Overview

The Trina Solar Vertex S 410W panel leverages advanced Mono PERC technology and 144 half-cut monocrystalline cells to achieve high efficiency and performance. This design reduces energy losses and improves the panel’s ability to generate power in low-light conditions. The Vertex S series is also engineered for durability, with robust materials that ensure long-term reliability.

Installation

The Vertex S 410W panel is designed for easy installation, with a compact size and weight that make it compatible with a wide range of mounting systems. Its robust construction allows for flexibility in placement, whether on residential rooftops, commercial buildings, or ground-mounted systems.

Applications

This solar panel is ideal for:

  • Residential Rooftops: Compact size and high efficiency make it perfect for maximizing energy production in limited spaces.
  • Commercial Buildings: Suitable for commercial installations where both performance and aesthetics are important.
  • Ground-Mounted Systems: Effective in ground-mounted setups, especially in areas with shading challenges.

Product Specifications

Feature Specification
Rated Power Output (Pmax) 410W
Module Efficiency Up to 21.3%
Cell Type Monocrystalline PERC
Cell Count 144 half-cells
Dimensions (L x W x H) 69.06 x 43.15 x 1.18 inches
Weight 46.3 lbs
Frame Material Anodized Aluminum
Front Glass 3.2 mm Tempered Glass, Anti-Reflective Coated
Operating Temperature -40°C to +85°C
Maximum System Voltage 1500V DC
Junction Box IP68, 3-part
Connector Type MC4 Compatible
Performance Warranty 25 years linear
Product Warranty 15 years
