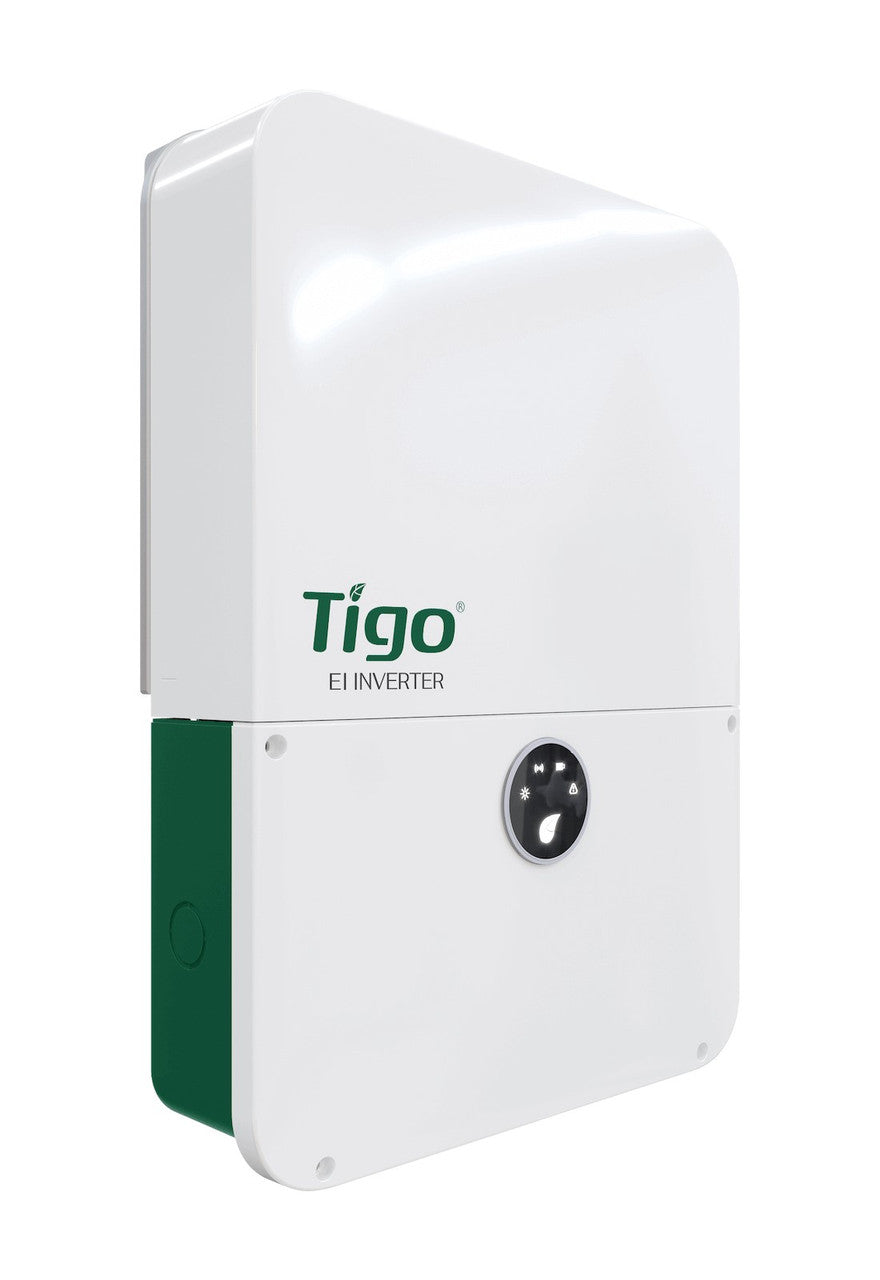

The Tigo EI 7.6 kW hybrid inverter is the core of the Tigo Energy Intelligence (EI) ecosystem, coordinating PV production, storage, and backup power. With up to 200% DC oversizing, three MPPTs, 50 V start-up, and NEMA 4X (IP65) protection, it delivers flexible string design and reliable performance for residential systems at 208/240 Vac.
Key Benefits
Hybrid & Storage-Ready: Direct DC-coupled LFP battery support (up to 39.6 kWh per inverter) with fast commissioning via the EI app.
Flexible Design: 3 MPPTs, 50–550 Vdc operating window, and 200% DC/AC ratio for complex rooftops.
Reliable Backup: 7,600 W continuous backup at 240 Vac with 9,120 W peak capability.
High Efficiency: 98.4% max / 97.5% CEC (240 V) with natural convection cooling (no fans).
Connected: Built-in Wi-Fi (4G optional), RS485, and integrated ANSI C12.20 revenue-grade metering (0.5%).
Special Technology
Energy Intelligence Platform: Module-level monitoring/optimization and PVRSS rapid shutdown when paired with TS4-A-O/F.
Comprehensive Protection: AFCI, ground-fault, anti-islanding, insulation monitoring, DC Type II & AC Type III surge, DC disconnect.
Warranty
152-Month Manufacturer Warranty.
Best Uses
Residential PV + Storage: Whole-home self-consumption, TOU shifting, and backup power.
Retrofits: Add storage to existing arrays with EI Battery integration.
Specifications Table
| Specification | Data |
|---|---|
| Model / Part | EI Inverter 7.6 kW — 601-2107K6-0503 |
| AC Nominal Power | 7,600 W @ 240 Vac · 6,580 W @ 208 Vac |
| Max Apparent Power | 7,600 VA |
| Nominal AC Voltage / Freq | 208/240 Vac · 50/60 Hz |
| AC Voltage Range | 211–264 Vac (240 V) · 183–229 Vac (208 V) |
| Max Output Current | 32 A |
| Max Efficiency / CEC (240 V) | 98.4% / 97.5% |
| MPPTs / Strings per MPPT | 3 MPPTs / 2 strings each |
| DC Operating Window | 50–550 Vdc (600 V max); start-up 50 V |
| Max DC/AC Ratio | 2:1 (200% oversizing) |
| PV Input Current (per MPPT) | 13.5 A (Imp) / 16.9 A (Isc) |
| Recommended Max PV Power | 15,200 W |
| Battery I/O | 360–550 Vdc (400 V nominal) · up to 23 A · 7,800 W |
| Battery Type / Capacity | LFP · 9.9 / 18.9 / 29.7 / 39.6 kWh (up to 4 enclosures) |
| Backup Output (240 V) | 7,600 W continuous · 9,120 W peak · 32 A max |
| Communications | Wi-Fi (std), 4G (opt), RS485 |
| Enclosure / Cooling | NEMA 4X (IP65) / Natural convection |
| Operating Temp | −25 °C to +60 °C (derate >45 °C) |
| Certifications | UL 1741 SA/SB, IEEE 1547.1:2020, UL1699B, NEC 690.12 PVRSS (TS4-A-F/O), FCC Part 15B, Rule 21, HECO 14H |
| Safety & Protection | AFCI, RCMU, GFDI/monitoring, anti-islanding, DC disconnect, DC Type II & AC Type III SPD |
| Dimensions (W × D × H) | 15.75 × 7.0 × 22.0 in |
| Weight | 32.3 lb |
| Warranty | 152 Months |
