SunModo Brace HSS Tube 92" BRACE-TUBE-92
BRACE-TUBE-92
SunModo Brace HSS Tube 92" BRACE-TUBE-92

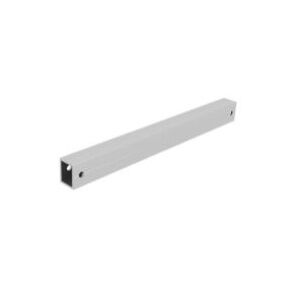

The BRACE-TUBE-92 is a 92-inch diagonal HSS tube brace for SunModo’s SunTurf® ground-mount system. Built from 1.5″ × 1.5″ high-strength steel with a ~0.083″ wall, it adds stiffness to rows and bays and ties into pipe clamps with standard 3/8″ hardware for quick, code-ready assemblies.
Key Benefits
Structural Reinforcement: Diagonal bracing improves rigidity and reduces racking deflection under wind/snow loads.
Installer-Friendly: Pre-cut 92″ length; attaches to pipe clamps with a single 3/8″ bolt and star washer.
Durable Steel Tube: HSS square tube construction with galvanized finish for outdoor longevity.
Special Technology
HSS Square Tube: 1.5″ × 1.5″ section with ~0.083″ wall balances strength and weight for easy handling.

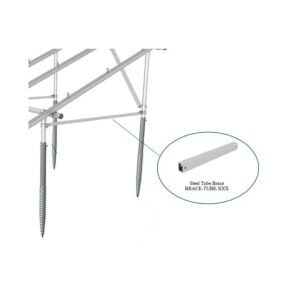

SunTurf® Integration: Designed to connect at brace tabs on SunModo pipe clamps; torque 3/8″ hardware to 15 ft-lb.
Warranty
Manufacturer’s standard hardware warranty (SunModo).
Best Uses
SunTurf® Ground-Mounts: Cross-bracing bays, extending rows, and stiffening frames in high-load sites.
Specifications Table
| Specification | Data |
|---|---|
| Part Number | BRACE-TUBE-92 (old part A50164-092) |
| Product Type | Diagonal HSS Tube Brace (SunTurf®) |
| Length | 92 in |
| Cross-Section | 1.5 in × 1.5 in square |
| Wall Thickness | ≈ 0.083 in (≈ 2.1 mm) |
| Material / Finish | High-strength steel (HSS), galvanized |
| Weight | 1 lb (per piece) |
| Connection Hardware | 3/8-16 × 3.5″ hex bolt + star washer + 3/8-16 flange nut (at pipe clamp), torque 15 ft-lb |
| System Compatibility | SunModo SunTurf® ground-mount system |
