SquareD 100A 240V NON Fusable Safety Disconnect Switch 3P NEMA3R
DU323RB
Specifications

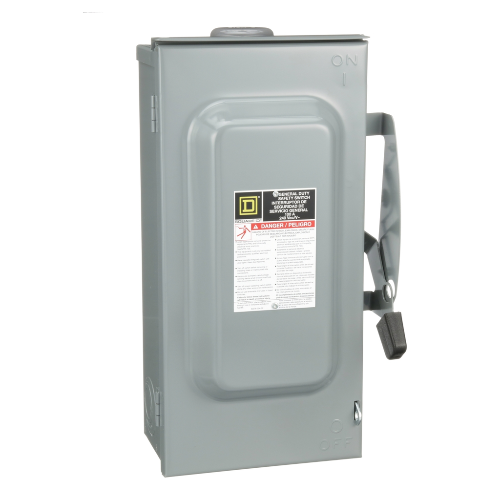

SquareD 100A 240V NON Fusable Safety Disconnect Switch 3P NEMA3R
Special Features
- General Duty Non-Fusible Safety Switch: Designed for residential applications, offering reliable power disconnection and motor control without the need for fuses.
- Versatile Motor Power Handling: Supports up to 15 HP for single-phase motors and up to 30 HP for three-phase motors, making it suitable for various motor applications.
- Rugged NEMA 3R Enclosure: Built for both indoor and outdoor use, providing protection against weather elements including rain, snow, and ice.
- Environmentally Friendly and Compliant: A Green Premium product that meets REACh and RoHS standards, ensuring a sustainable and environmentally responsible design.
Technology Overview
The Schneider Electric Single Throw Non-Fusible Safety Switch provides safe, reliable power disconnection in residential settings. This model offers a 3-wire configuration, lugs for secure electrical connections, and easy surface mounting. With UL certification and 100A rating, this switch is built for durability and safety, supporting a 100A capacity in various residential applications.
Installation
- Mounting Type: Surface mount for straightforward installation.
- Electrical Connection: Utilizes lug connections compatible with both copper (AWG 14–AWG 1) and aluminum (AWG 12–AWG 1) wiring.
- Installation Requirements: Tightening torque ranges from 35 Lbf.In to 50 Lbf.In depending on wire gauge for secure connections.
Applications
- Residential Power Disconnection: Ideal for residential setups requiring a reliable non-fusible power disconnection solution.
- Outdoor Environments: NEMA 3R rating makes it suitable for outdoor installation.
- Motor Control Applications: Supports a range of motor power capacities, handling up to 15 HP for single-phase and 30 HP for three-phase motors, ideal for varied motor applications in residential settings.
Product Specifications
| Specification | Details |
|---|---|
| Product Type | Single Throw Safety Switch |
| Duty Rating | General Duty |
| Device Application | Residential |
| Disconnect Type | Non-Fusible |
| Factory Installed Neutral | None |
| Phase | 3 Phase |
| Number of Poles | 3 |
| Current Rating | 100 A |
| Voltage Rating | 240 V AC |
| Enclosure Rating | NEMA 3R |
| Motor Power Capacity | 15 HP (1-phase), 30 HP (3-phase) |
| Mounting Type | Surface |
| Electrical Connection | Lugs |
| Wiring Configuration | 3-wire |
| Wire Size (Copper) | AWG 14–AWG 1 |
| Wire Size (Aluminum) | AWG 12–AWG 1 |
| Dimensions (HxWxD) | 17.5 x 10.5 x 6.5 in |
| Net Weight | 15.4 lb (7 kg) |
| Environmental Compliance | RoHS Compliant, Mercury-Free |
| Sustainability | Green Premium Product |
| Certifications | UL Listed |
| California Proposition 65 | Warning for lead exposure |
