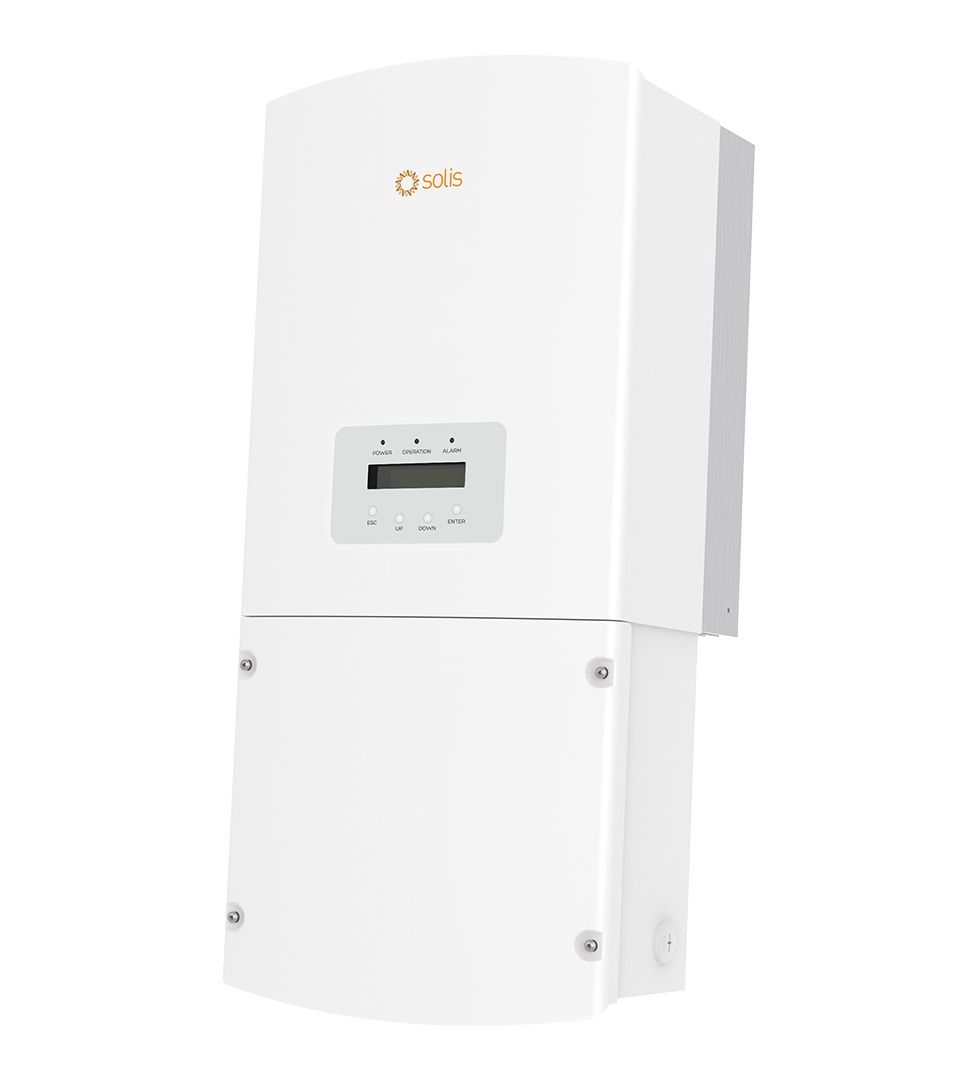

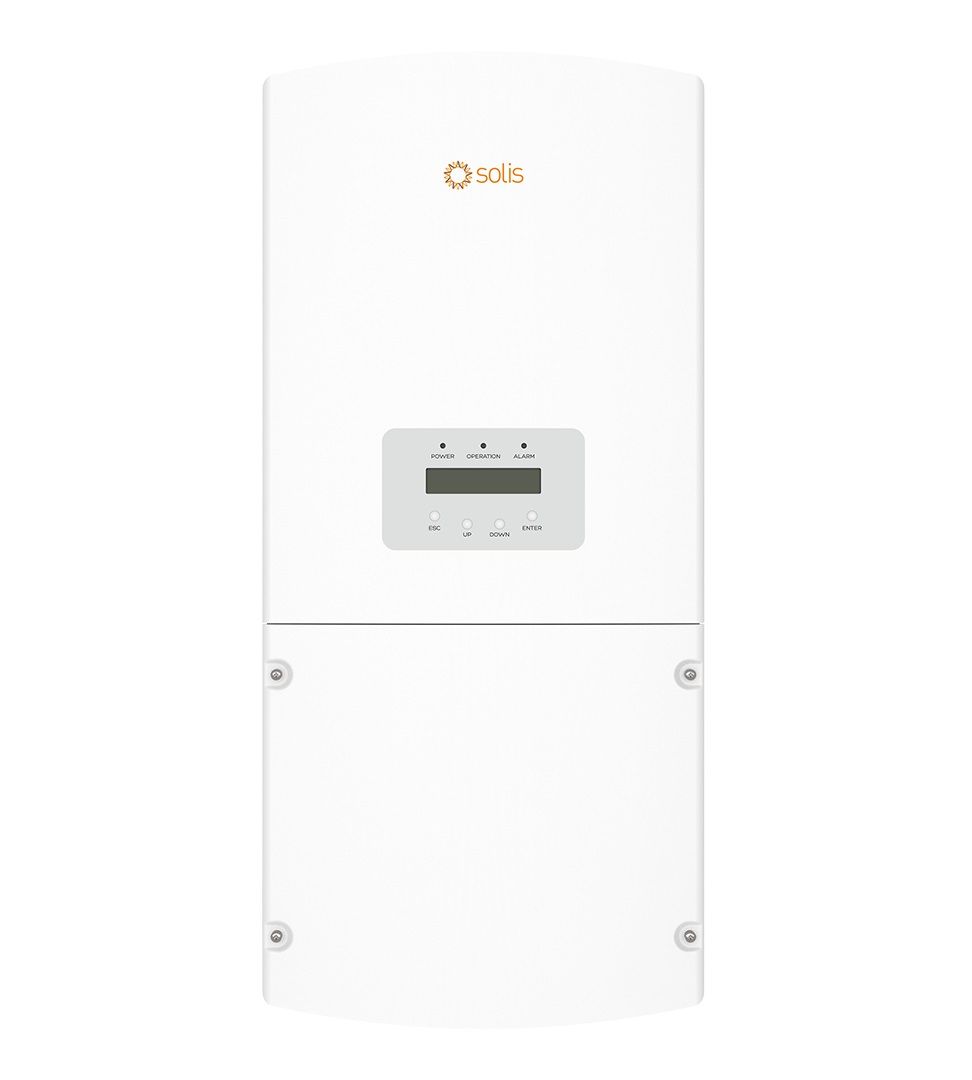

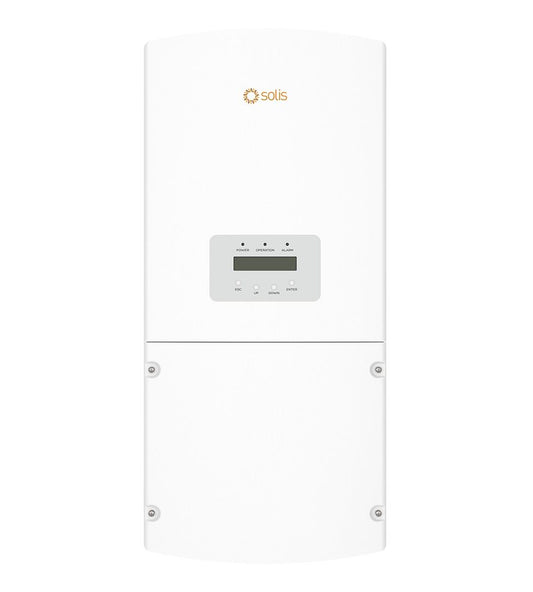

Unlock a new world of efficiency and versatility with the Solis 6-10KW US plus version single-phase string inverters. Specially crafted to accommodate up to 4 Maximum Power Point Trackers (MPPTs), this high-end inverter is perfect for intricate roof layouts that call for solar panels facing multiple directions.

Leading Features:

• String Current up to 14A: Compatible with the latest high-power and bifacial PV modules, ensuring you harvest the maximum amount of energy.

• Module Level Monitoring: Allows you to monitor the performance of individual solar panels within your arrangement, ensuring optimal operation.

• Industry-Leading 3 and 4 MPPT Designs: With multiple MPPTs, you get an unparalleled level of flexibility and efficiency in capturing solar energy.

• Max Efficiency 97.7%: Industry-leading efficiency levels, with California Energy Commission (CEC) efficiency rated at 97.1%.

• Compliance and Certification: Fully compliant with CA Rule 21 and UL 1741 SB Certification standards, assuring both safety and high performance.

• Communication Support: Features Sunspec protocol and offers optional cellular and WiFi connectivity for effortless monitoring and control.

• Fire Safety: Comes with AFCI protection to actively mitigate the risk of fires.

• Rapid Shutdown: Integrated module level rapid shutdown transmitter enhances safety during emergencies.

• Extended Warranty: A standard 10-year warranty is included, with options for extension.

• Optional Revenue Grade Meter: An optional built-in ANSI C12.20, 0.5 Accuracy Class revenue grade meter for precise data tracking.

Technical Specifications:

• Max. Input Voltage: 600V
• Start-Up Voltage: 120V
• MPPT Number: 3
• Max. Input Strings Number: 3
• Rated Output Power: 7.6 kW
• Rated Grid Frequency: 60 Hz
• Max. Output Current for 208V Grid: 36.5 A
• Max. Output Current for 240V Grid: 31.7 A
• Max. Efficiency: 97.8%

Physical Specifications:

• Dimensions: 13.1in (W) x 28.8in (H) x 9.8in (D)
• Weight: 45.2 lbs (20.5 kgs)

Summary:

The Solis 6-10KW US plus version single-phase string inverters offer a blend of cutting-edge technology, robust efficiency, and excellent safety features. Designed for residential rooftop solar systems, this inverter is a game-changer when it comes to flexibility, performance, and control. With its state-of-the-art features and specifications, this is undoubtedly a smart choice for anyone looking to invest in a reliable and high-performing solar energy system.
