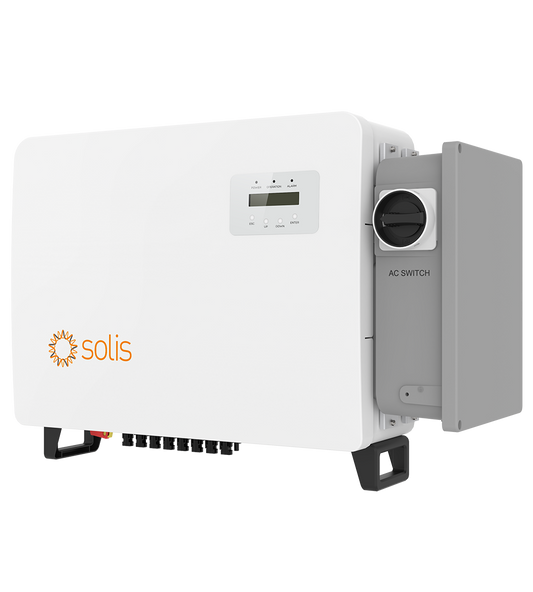

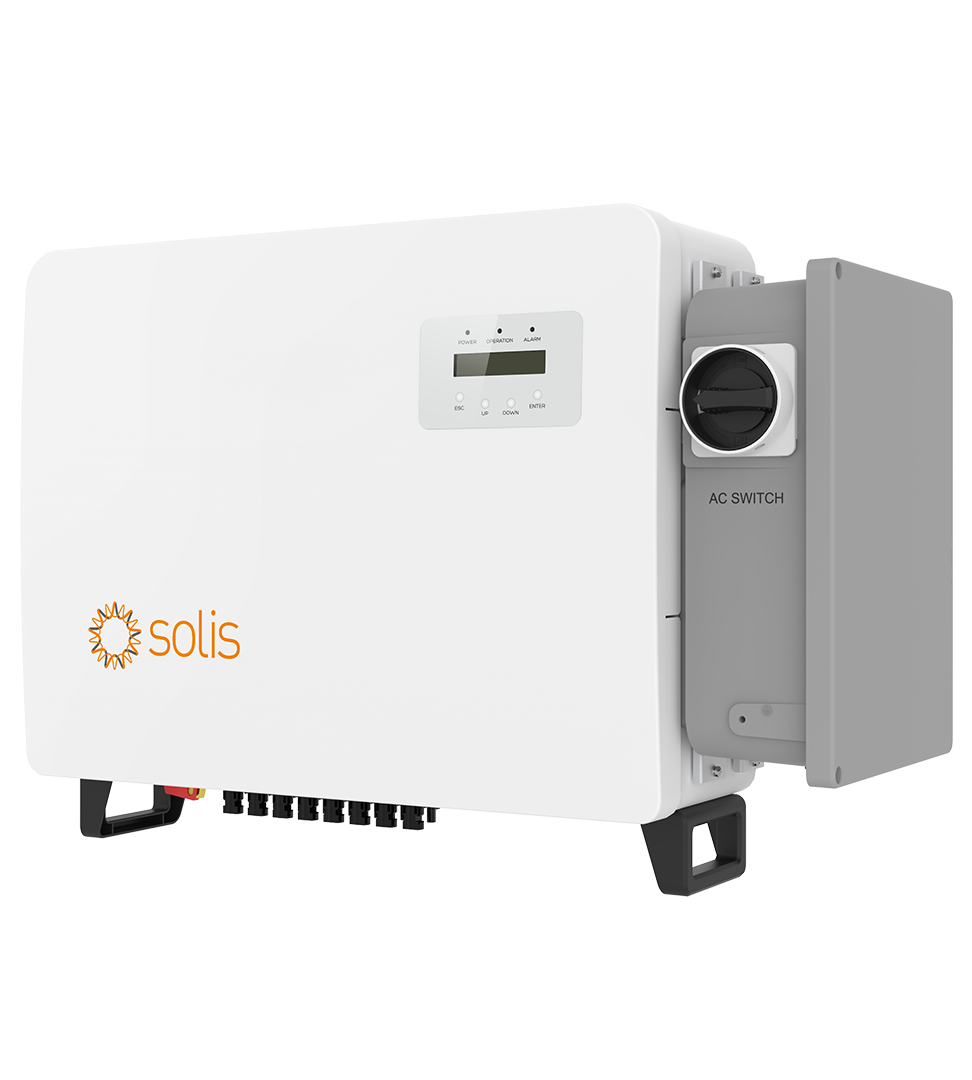

The Solis S6-GC50K-US-APST is a high-performance three-phase grid-tied string inverter engineered specifically for commercial rooftop, agricultural, industrial, and distributed generation solar projects across North America. Designed for 480VAC three-phase applications, the inverter combines exceptional conversion efficiency, advanced safety technologies, and intelligent monitoring capabilities into a compact and reliable platform.
Featuring four independent MPPT channels, support for modern high-current PV modules up to 20A per string, integrated AFCI protection, and an integrated APS module-level rapid shutdown transmitter, the S6-GC50K-US-APST maximizes energy harvest while simplifying NEC rapid shutdown compliance requirements. The inverter also includes integrated AC and DC disconnects, a Type 4X enclosure, and advanced SolisCloud monitoring capabilities for reliable long-term operation.
Key Technology
-
50kW Three-Phase Commercial Power Conversion
Designed for commercial and industrial 480V solar installations requiring high reliability and performance. -
Four Independent MPPT Inputs
Supports multiple array orientations and complex rooftop designs while maximizing energy production. -
20A String Current Capability
Fully compatible with modern high-current bifacial and large-format photovoltaic modules. -
98.8% Maximum Efficiency
Industry-leading efficiency helps maximize energy harvest and project economics. -
Integrated APS Rapid Shutdown Transmitter
Provides built-in module-level rapid shutdown communication for simplified NEC 690.12 compliance. -
Integrated AFCI Protection
Arc fault circuit interruption proactively reduces fire risk and enhances system safety. -
Type 4X Environmental Protection
Provides superior outdoor protection with C5 anti-corrosion performance for harsh environments. -
Smart Monitoring Platform
Supports SolisCloud remote monitoring, diagnostics, firmware upgrades, and system management.
Best Uses
-
Commercial Rooftop Solar Systems
Ideal for warehouses, retail centers, schools, office buildings, and industrial facilities. -
Agricultural Solar Installations
Supports irrigation systems, agricultural processing facilities, and farm energy projects. -
Distributed Generation Projects
Excellent solution for large-scale behind-the-meter commercial solar systems. -
Complex Rooftop Designs
Multiple MPPT channels optimize production from varying roof orientations and shading conditions. -
Rapid Shutdown Compliant Installations
Integrated APS transmitter reduces installation complexity and additional hardware requirements.
Warranty
- Standard Warranty: 10 Years
- Maximum Efficiency: 98.8%
- CEC Efficiency: 98.3%
- Ingress Protection: Type 4X
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Solis |
| Model | S6-GC50K-US-APST |
| Series | S6-GC(25-60)K-US Series |
| Product Type | Three-Phase Grid-Tied PV String Inverter |
| Rapid Shutdown Option | APS MLRSD Transmitter Integrated |
| Rated AC Output Power | 50,000W |
| Maximum Apparent Power | 50,000VA |
| Maximum Output Power | 50,000W |
| Grid Connection | 3 Phase / PE, 480VAC |
| Rated Grid Frequency | 60Hz |
| Maximum Output Current | 60.1A |
| Power Factor | >0.99 (Adjustable 0.8 Leading to 0.8 Lagging) |
| Total Harmonic Distortion (THDi) | <3% |
| Maximum Efficiency | 98.8% |
| CEC Efficiency | 98.3% |
| Maximum DC Input Voltage | 1000V DC |
| Rated DC Voltage | 720V DC |
| Startup Voltage | 180V DC |
| MPPT Voltage Range | 180V - 1000V DC |
| Number of MPPT Inputs | 4 |
| Maximum Input Strings | 8 |
| Maximum Input Current | 4 × 40A |
| Maximum Short Circuit Current | 4 × 63A |
| Supported DC/AC Ratio | >1.5 |
| DC Reverse Polarity Protection | Yes |
| Output Over Current Protection | Yes |
| Surge Protection | DC Type II / AC Type II |
| Anti-Islanding Protection | Yes |
| Integrated AFCI | Yes |
| String Monitoring | Yes |
| I-V Curve Scanning | Yes |
| Multi-Peak Scan | Yes |
| Night PID Recovery | Optional |
| Integrated DC Disconnect | Yes |
| Integrated AC Disconnect | Yes |
| Cooling Method | Natural Cooling |
| Ingress Protection | Type 4X |
| Corrosion Rating | C5 Anti-Corrosion Level |
| Noise Emission | ≤55 dB(A) |
| Operating Temperature | -13°F to 140°F (-25°C to 60°C) |
| Relative Humidity | 0% to 100% |
| Maximum Operating Altitude | 13,120 ft (4,000 m) |
| Self Consumption (Night) | <1W |
| Dimensions | 30.9 × 21.6 × 12.6 in |
| Weight | 108.7 lbs |
| Topology | Transformerless |
| DC Connections | MC4 Connectors |
| AC Connections | OT Terminal (4 AWG to 3/0 AWG) |
| Display | LCD Display |
| Communication | Modbus RTU (SunSpec Compliant), RS485 |
| Optional Communication | WiFi, Cellular, Ethernet |
| Certifications | UL1741SB, IEEE1547-2018, UL1699B, UL1998, FCC Part 15 Class B, California Rule 21, HECO Rule 14H, NEC 690.12-2020, CAN/CSA C22.2 No.107.1-1 |
About Solis:
Solis, a brand of Ginlong Technologies, is one of the world's largest photovoltaic inverter manufacturers specializing in residential, commercial, and utility-scale inverter solutions. Solis products are recognized globally for their reliability, advanced monitoring capabilities, and industry-leading efficiency.
Commercial Solar Performance Designed for North America
The Solis S6-GC50K-US-APST combines advanced commercial inverter technology, integrated rapid shutdown capability, exceptional efficiency, and intelligent monitoring into a powerful platform optimized for North American commercial solar projects.
