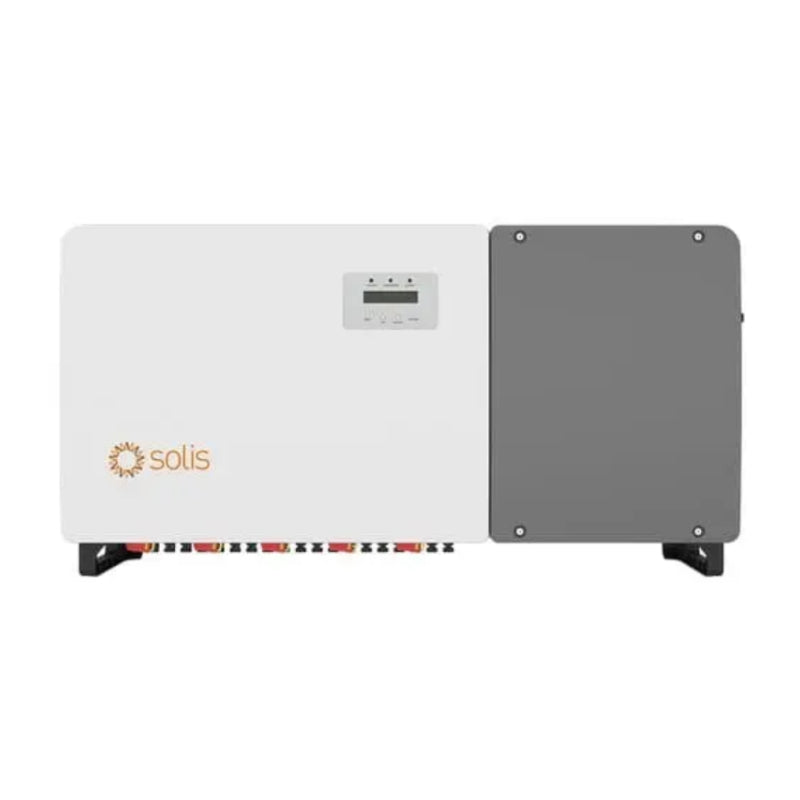

Solis S5-GC75K-US-APST 75kW Three Phase String Inverter

Solis S5-GC75K-US-APST 75kW Three Phase String Inverter

$5,406.80
-% $5,406.80
LESS THAN 50
Leave a Review

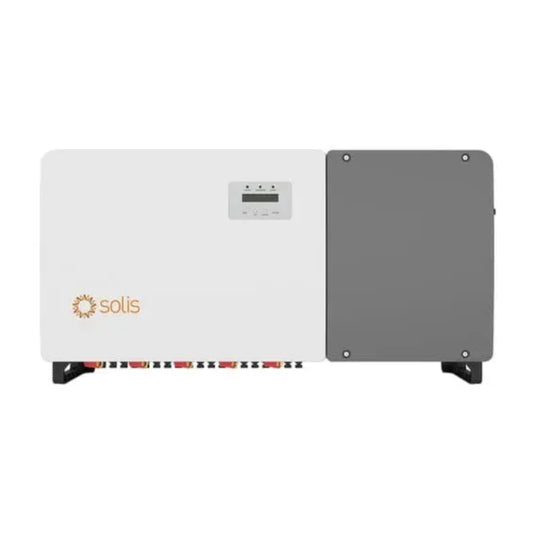

Solis S5-GC75K-US-APST 75kW Three Phase String Inverter

Solis S5-GC75K-US-APST 75kW Three Phase String Inverter

Ginlong Solis
MPN No: S5-GC75K-US-APST
In Stock
$5,406.80
-% $5,406.80

1
2
3

Delivery

Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.

Expected ship date Apr 09 - 12 About shipping

Payment

We offer multiple secure payment options for your convenience

All Ginlong Solis products All Inverters products

View full details
$5,406.80
-% $5,406.80
Solis S5-GC75K-US-APST 75kW Three Phase String Inverter

Solis S5-GC75K-US-APST 75kW Three Phase String Inverter

Solis S5-GC75K-US-APST 75kW Three Phase String Inverter

MPN No:

S5-GC75K-US-APST

In Stock
Expected ship date Apr 09 - 12
$5,406.80
-% $5,406.80

Specifications

.PDF
Documents
.PDF
Documents
Data Sheet
Download

SOLIS S5-GC75K-US-APST 75kW Three-Phase String Inverter

Introducing the SOLIS S5-GC75K-US-APST, a cutting-edge 75kW three-phase String inverter designed for commercial and industrial solar PV solutions. This inverter stands out with its high efficiency, smart features, and robust safety measures, making it an ideal choice for optimizing solar energy conversion.

  • Max. efficiency of 98.8% with CEC efficiency of 98.3%, ensuring optimal energy conversion.
  • Supports up to 16A string current for higher capacity modules, maximizing solar panel efficiency.
  • Intelligent string monitoring and smart I-V curve scan for precise performance analysis.
  • Type 4X C5 Anti-Corrosion Level and integrated AFCI protection to minimize fire risks.
  • Remote firmware upgrade capability for easy maintenance and system updates.

Technology and Overview

The SOLIS S5-GC75K-US-APST utilizes advanced MPPT technology to maximize solar energy harvest. Its design is focused on delivering high efficiency and reliability for commercial solar power systems.

Installation and Compatibility Overview

Designed for easy installation and compatibility with various PV modules and grid systems. Its flexible connectivity options support a broad range of commercial solar projects.

Benefits and Applications Overview

Not only does this inverter offer significant cost savings by optimizing energy production, but it also contributes to environmental sustainability. It's suitable for a wide array of applications, from industrial facilities to large-scale solar farms.

Specifications Value
Models Input DC 75K
Max. input voltage 1000 V
Rated voltage 600 V
Start-up voltage 195 V
MPPT voltage range 180-1000 V
Max. input current 8*32 A
Max. short circuit current 8*50 A
MPPT number/Max. input strings number 8/16
Output AC
Rated output power 75 kW
Max. apparent output power 75 kVA
Max. output power 75 kW
Rated grid voltage 3?/PE, 480 V
Rated grid frequency 60 Hz
Max. output current 90.2 A
Power Factor >0.99 (0.8 leading - 0.8 lagging)
THDi <3%
Efficiency
Max. efficiency 98.70%
CEC efficiency 98.30%
Protection
DC reverse-polarity protection Yes
Surge protection DC Type II / AC Type II
Ground fault monitoring Yes
Anti-islanding protection Yes
Strings monitoring Yes
I/V Curve scanning Yes
Integrated PID recovery Yes
Rapid shutdown Yes
Integrated AFCI (DC arc-fault circuit protection) Yes
AC switch Yes
General Data
Dimensions (W*H*D) 41.9*22.3*13.6 in (1065*567*344.5 mm)
Weight 187 lbs (85 kgs)
Topology Transformerless
Self-consumption (night) <2 W
Relative humidity 0-100%
Operating ambient temperature range -22°F to 140°F (-30°C ~ +60°C )
Storage environment -40°F to 176°F (-40°C to 80°C)
Ingress protection TYPE 4X
Cooling concept Intelligent redundant fan-cooling
Max. operation altitude 13,120 ft (4000 m)
Compliance UL1741SB, UL1741SA, IEEE 1547-2018, UL1699B, UL1998, FCC Part15 ClassB, California Rule 21, Heco Rule 14H, NEC 690.12-2020, CAN/CSA C22.2107.1-1
Features
DC connection MC4 connector
AC connection OT Terminal (max. 350 MCM)
Display LCD
Communication RS485, Ethernet, Optional: Wi-Fi, Cellular
Warranty 10 Years
