Solis Hybrid Inverter S6-EH1P7.6K-H-US-RSS 7.6kw S6 Single Phase Fourl MPPT. US

Solis Hybrid Inverter S6-EH1P7.6K-H-US-RSS 7.6kw S6 Single Phase Fourl MPPT. US

Regular price $2,044.24
Sale price $2,044.24 Regular price

Solis Hybrid Inverter S6-EH1P7.6K-H-US-RSS 7.6kw S6 Single Phase Fourl MPPT. US

Solis Hybrid Inverter S6-EH1P7.6K-H-US-RSS 7.6kw S6 Single Phase Fourl MPPT. US

No reviews
Regular price $2,044.24
Sale price $2,044.24 Regular price
View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Ginlong Solis
Weight
44.1 lb
Dimension
19.2" W x 25.5" H x 9.0" D

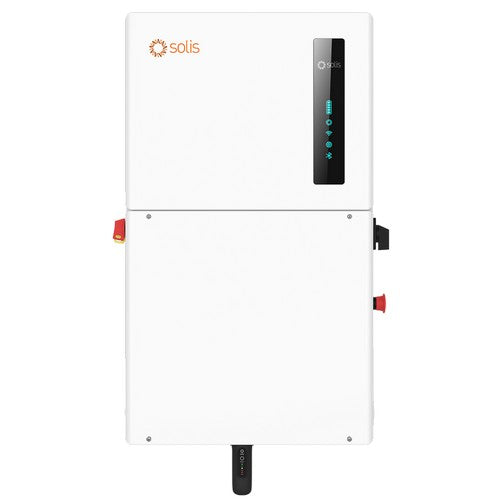

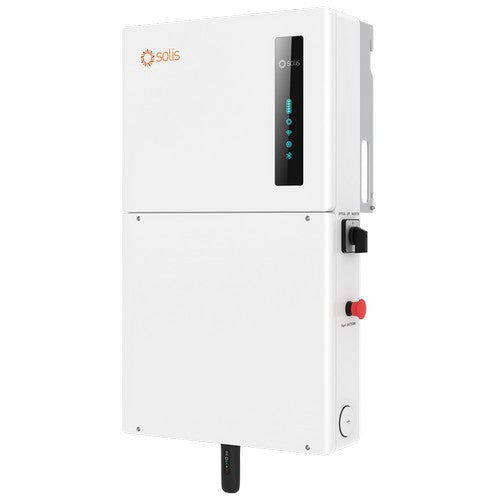

The Solis S-6 Single Phase Residential Hybrid Storage Inverter is designed to significantly increase electricity generation efficiency for both residential and commercial applications. Utilizing ultra-high switching frequency and an ultra-thin single four-layer board design, the Solis S-6 minimizes the risks associated with connector failure. This unit comes with a built-in counter-current controller and supports a myriad of communication options, enabling real-time monitoring and control.

Specifications

General Information
  • Model: S6-EH1P7.6K-H-US-RSS
    • RSS: Tigo MLRSD Transmitter
  • Series: Solis Single Phase Hybrid Energy Storage Inverter
  • Manufacturer: Solis
  • Type: Single Phase Residential Hybrid Storage Inverter
  • Topology: Transformerless
  • Operating Temperature Range: -31 °F to 140 °F (-25°C to 60°C)
  • Ingress Protection: NEMA 4X (IP66)
  • Cooling Concept: Natural Convection
  • Max. Operation Altitude: 13,120 ft (4000 m)
  • Compliance: UL1741SB, UL1741SA, IEEE 1547-2018, among others.
  • Generator Support: Yes, up to 25 kW with a Solis Power Hub
Dimensions and Weight
  • Dimensions (W x H x D): 19.2" W x 25.5" H x 9.0" D (488 mm W x 647 mm H x 228.5 mm D)
  • Weight: 44.1 lbs (20 kg)
Input (DC)
  • Max Voltage: 600 V
  • Rated MPP Voltage Range: 380 V
  • Start-up Voltage: 80 V
  • Max Input Current: 16 A
  • MPPT Number: 3/1 (Number of MPPTs / Max. input strings number)
Energy Storage
  • Battery Type: Lithium-ion
  • Battery Voltage Range: 120-500 V
  • Max Charge/Discharge Current: 25 A
  • Communication: CAN/RS485
Output (AC)
  • Rated Output Power: 7.6 kW
  • Max Apparent Output Power: 7.6 kVA
  • Rated Grid Voltage: 220V / 240 V
  • Rated Grid Frequency: 60 Hz
Efficiency
  • Max Efficiency: 97.6%
  • EU Efficiency: 97.2%
Protection
  • Ground Fault Detection: Yes
  • Residual Current Detection: Yes
  • Integrated AFCI: Yes
Features
  • Interface: LED indicator lights, Bluetooth/Phone app
  • Monitoring Platform: SolisCloud

Key Features

  • Can be used for both whole-home and dedicated load backup systems
  • High DC:AC ratio of 1.6 for more PV power capacity
  • UL 9540 certified with multiple battery brands, up to 80 kWh storage capacity per inverter
  • Fanless design using natural convection cooling
  • Solis app allows for remote system configuration and firmware upgrading

Shipping Method

  • Ground
