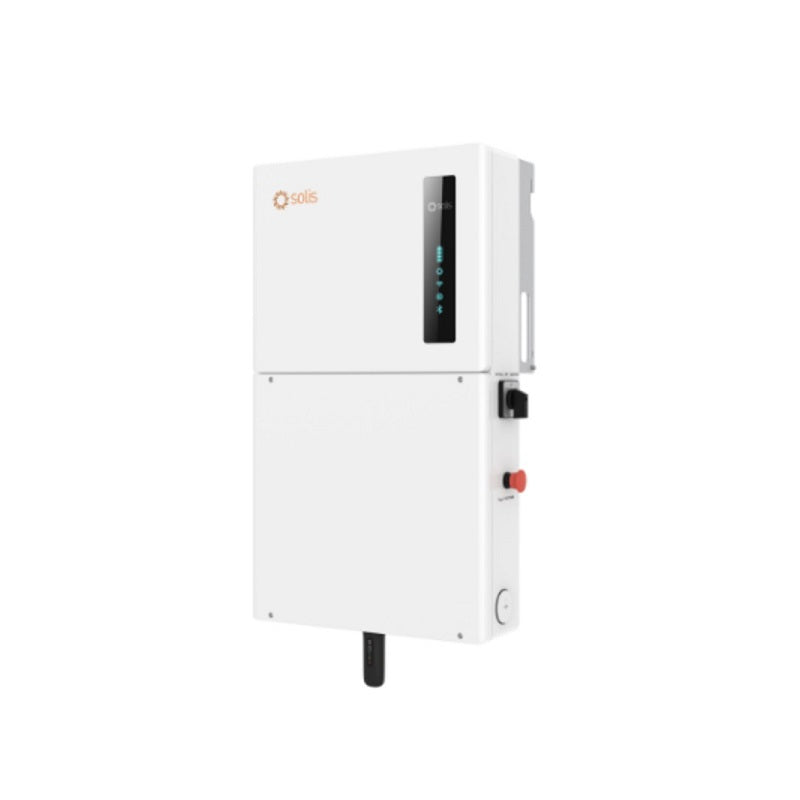

Solis Hybrid Inverter 10.0kW S6-EH1P10K-H-US-RSS S6 Single Phase Inverter Three MPPT with Tigo Transmitter
S6-EH1P10K-H-US-RSS
Solis Hybrid Inverter 10.0kW S6-EH1P10K-H-US-RSS S6 Single Phase Inverter Three MPPT with Tigo Transmitter
Introducing the Solis S6-EH1P10K-H-US-RSS 10.0kW S6 1-Ph Inverter, a high-performance inverter designed to meet your solar energy needs. With its advanced features and reliable performance, this inverter is an excellent choice for residential and commercial solar power systems.
Special Features:
- High Power Output: The Solis S6 inverter boasts a powerful 10.0kW output, ensuring efficient conversion of solar energy into electricity for your home or business.
- 1-Phase Operation: This inverter is designed for single-phase operation, making it suitable for a wide range of residential and small commercial applications.
- Advanced Technology: Equipped with advanced technology, the S6 inverter offers precise MPPT (Maximum Power Point Tracking) and grid-tie capabilities for maximum energy efficiency.
- Reliable Performance: Solis inverters are known for their reliability and durability, ensuring long-term performance and peace of mind.
Technology and Overview:
The Solis S6-EH1P10K-H-US-RSS inverter utilizes cutting-edge technology to convert solar energy into usable electricity. Its advanced MPPT algorithm ensures that the inverter operates at the optimal voltage and current levels, maximizing energy harvest from your solar panels.
Installation and Compatibility:
Installing the Solis S6 inverter is straightforward, and it is compatible with a variety of solar panel configurations. Whether you have a residential rooftop solar system or a small commercial setup, this inverter can be seamlessly integrated into your solar power system.
Benefits and Applications:
The Solis S6-EH1P10K-H-US-RSS inverter offers numerous benefits, including high power output, advanced technology, and reliable performance. It is ideal for residential homes, small businesses, and other applications where solar energy is harnessed to reduce electricity bills and promote sustainability.
Product Specifications:
| Category | Specification |
|---|---|
| DC Input (PV) | |
| Max Input Voltage | 600 V |
| Rated Voltage | 380 V |
| Start-Up Voltage | 80 V |
| MPPT Voltage Range | 80-520 V |
| Max Input Current | 16 A per MPPT |
| MPPTs / Strings | 4 / 1 |
| Battery | |
| Battery Type | Lithium-ion |
| Voltage Range | 120-500 V |
| Max Charge/Discharge | 50 A |
| Communication | CAN/RS485 |
| AC Output (Grid) | |
| Rated Output Power | 10 kW |
| Max Apparent Power | 10 kVA |
| Voltage / Frequency | 240 V / 60 Hz |
| Rated Output Current | 41.7 A |
| Backup Output | |
| Rated Power | 10 kW |
| Surge Power (10 sec) | 16 kVA |
| Voltage Range | 211-264 V |
| Switch Time | <10 ms |
| Efficiency | |
| PV Max Efficiency | 97.6% |
| CEC Efficiency | 97.2% |
| Battery Efficiency | 98.5% charged by PV, 97.0% AC charged |
| General Data | |
| Dimensions (W×H×D) | 22.05 × 29.53 × 8.66 in |
| Weight | 71.74 lbs |
| Protection | TYPE 4X (IP66), AFCI, RSD |
| Operating Temp | -13°F to 140°F (-25°C to 60°C) |
| Cooling | Natural convection |
