Solis 7.6kW S6 Series Hybrid Inverter S6-EH1P7.6K-H-S-US-R
With Tigo Rapid Shutdown Transmitter

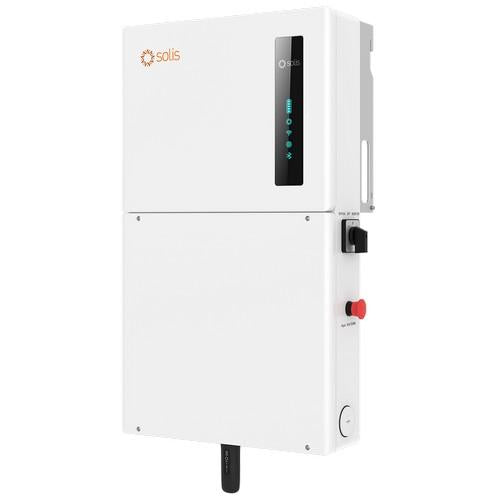

The Solis S6-EH1P7.6K-H-S-US-R is a high-performance 7.6kW hybrid inverter from the S6 Series, offering whole-home backup capability, SunSpec-certified rapid shutdown, and flexible energy storage. Designed for residential solar + battery systems, it ensures seamless operation, grid support, and smart monitoring.
Key Benefits
Whole-Home or Load-Only Backup: Backup power with transfer time <10 ms ensures uninterrupted power supply during outages.
Flexible Battery Integration: Supports high-voltage lithium-ion batteries with CAN/RS485 communication for up to 150 kWh of capacity.
High PV Input: Four MPPTs with 16 A per string and wide voltage range for modern solar modules.
Smart Inverter Functions: Meets IEEE 1547-2018, supports generator input, and export power control.
SunSpec RSD Transmitter: Integrated for NEC 2017/2020 compliance and module-level shutdown safety.
Special Technology
Energy Management System: Multiple operation modes and DC-to-DC charging for PV optimization.
SolisCloud Monitoring: Full system insight, remote firmware updates, and diagnostics.
Integrated AFCI and GFDI: Arc and ground fault detection enhance system safety and reliability.
Optional Revenue Grade Meter: ANSI C12.20 metering available for utility compliance.
Warranty
Backed by a 10-year standard manufacturer warranty from Solis.
Best Uses
Residential Storage Systems: Designed for homeowners seeking backup power, peak shaving, and energy independence.
Code-Compliant Installations: Ideal for NEC 690.12-2020 and UL 1741 SB applications with integrated RSD.
Scalable Applications: Stack up to 10 units in parallel for large home or light commercial use.
Specifications Table
| Specification | Data |
|---|---|
| Model | S6-EH1P7.6K-H-S-US-R |
| Series | S6 Series |
| Rated Output Power | 7.6 kW |
| Max. PV Input Voltage | 600 V |
| MPPT Voltage Range | 80–520 V |
| MPPTs / Strings | 4 / 4 |
| Max. Input Current per String | 16 A |
| Battery Voltage Range | 120–500 V |
| Battery Type | High-Voltage Lithium-ion |
| Charge/Discharge Current | 50 A |
| AC Output Voltage | 240 V split-phase (120/240 V) |
| AC Frequency | 60 Hz |
| Backup Power | 12.2 kVA (10 sec) |
| Switchover Time | < 10 ms |
| PV Efficiency (Max / CEC) | 97.6% / 97.2% |
| Battery to AC Efficiency | 97.0% |
| Monitoring | SolisCloud, RS485, Wi-Fi, Optional LAN/Cellular |
| Dimensions (W × H × D) | 21.87 × 34.88 × 8.62 in |
| Weight | 89.59 lbs |
| Enclosure Rating | Type 4X (IP66) |
| Certifications | UL 1741 SB/SA, IEEE 1547, NEC 690.12-2020, Rule 21, HECO Rule 14H |
About Solis:
Solis is a global leader in solar inverter technology, offering efficient, reliable, and affordable grid-tied and hybrid inverters for residential, commercial, and utility-scale applications. Known for innovation and durability, Solis products are engineered to optimize energy yield and support smart energy management through advanced monitoring solutions. With a strong global presence and commitment to sustainability, Solis helps accelerate the transition to clean, renewable energy.
Why Buy From US Solar Supplier?
As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on.
We update our inventory daily with solar components that feature the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.
Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.
Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.
Expert Support: Our team is here to guide you every step of the way.
Manufacturer-Backed Warranties: Enjoy peace of mind with the 10-year product warranty directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.
Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!
FAQs
Is the S6-EH1P7.6K-H-S-US-R compatible with my solar panels?
Yes, the S6-EH1P7.6K-H-S-US-R is compatible with a wide range of solar panels. Your installer will select the best configuration based on your system's size and panel characteristics.
Do I need a battery to use the S6-EH1P7.6K-H-S-US-R?
No, a battery is not required. This inverter operates as a grid-tied unit, but it also supports energy storage. Adding a compatible battery lets you store energy for use during outages or when solar production is low.
How do I monitor the performance of my Solis inverter?
The S6 inverter includes built-in Wi-Fi for monitoring. You can track real-time system performance, energy generation, and battery levels (if applicable) via the SolisCloud app or web portal.
What happens during a power outage?
If a battery is installed and backup mode is configured, the inverter will supply power to designated loads during outages. Without a battery, the inverter will shut down in accordance with grid-safety regulations.
How do I maintain the S6 inverter?
Solis inverters require little maintenance. Check occasionally for warning lights or alerts, and ensure proper airflow around the unit. Your installer may suggest periodic inspections.
What is the efficiency of the S6-EH1P7.6K-H-S-US-R?
This model offers high conversion efficiency. Please refer to the official datasheet for exact figures, including CEC and peak efficiency ratings.
What are the input and output voltage ranges?
The inverter supports split-phase output at 120/240V AC. Consult the Solis datasheet for full details on PV input voltage range, MPPT tracking, and output specifications.
What communication protocols does the S6 inverter use?
The S6 series supports Wi-Fi communication and may also support RS485 or optional accessories. Refer to the official manual for the complete list of supported protocols.
