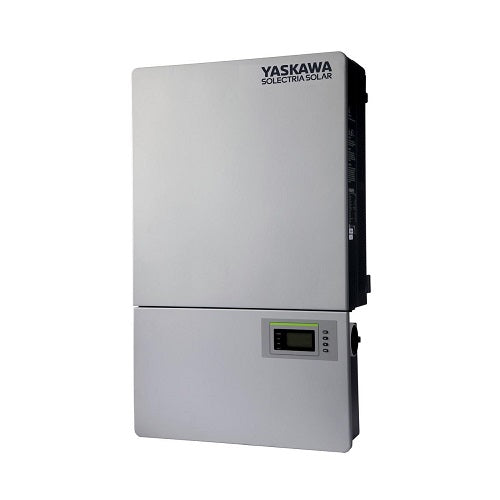

Yaskawa Solectria PVI-36TL-480 36.0KW 3 Phase Inverter
Yaskawa Solectria PVI-36TL-480 36.0KW 3 Phase Inverter
Yaskawa Solectria PVI-36TL-480 36.0KW 3 Phase Inverter
Yaskawa Solectria PVI-36TL-480 36.0KW 3 Phase Inverter
Delivery
Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.
Payment
We offer multiple secure payment options for your convenience
Obsolete; Check v2
View full details
Yaskawa Solectria PVI-36TL-480 36.0KW 3 Phase Inverter
PVI-36TL-480
Specifications
Yaskawa Solectria PVI-36TL-480 3 Phase Inverter
Key Features
- 36kW three-phase transformerless inverter designed for commercial and utility-scale solar applications.
- 1000V DC input allows for high-voltage PV array configurations.
- Dual independent MPP trackers (MPPT) with 5 fused inputs per tracker for system flexibility.
- 98.5% peak efficiency and 98.0% CEC efficiency for maximum energy conversion.
- Integrated DC fused string combiner for streamlined installation and safety.
- Modbus RTU RS-485 communication for remote monitoring and system integration.
- UL 1741SA certified for advanced grid support compliance.
- Standard 10-year warranty with optional extended warranty plans.
- Outdoor-rated Type 4X enclosure for enhanced durability in harsh conditions.
Best Applications
- Commercial rooftop solar PV systems.
- Large-scale ground-mounted solar farms.
- Industrial power generation with grid-tied solar energy.
- Utility-scale renewable energy projects requiring high-efficiency inverters.
Advanced Technology & Performance
The Yaskawa Solectria PVI-36TL-480 inverter is engineered with advanced DSP control and thermal design, ensuring high reliability and uptime. The dual MPPT architecture allows for greater flexibility in array design, optimizing power production even with different panel orientations. Its integrated arc-fault detection enhances safety, while its adjustable power factor (±0.8) and <3% THD ensure compliance with utility grid requirements.
Installation & Compatibility
- Compatible with 480V three-phase grid connections.
- Supports external revenue-grade monitoring and SolrenView web-based monitoring (optional).
- Equipped with standard AC and DC disconnects for safe installation and operation.
- Wall-mountable with an adjustable installation angle from 15° to 90°.
About Yaskawa Solectria Solar
Yaskawa Solectria Solar is a leading U.S. manufacturer of grid-tied PV inverters, providing high-performance, durable, and efficient solutions for commercial and utility-scale solar applications. Their inverters are known for best-in-class efficiency, reliability, and compliance with the latest industry standards.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | PVI-36TL-480 |
| Maximum DC Input Voltage | 1000V DC |
| MPPT Voltage Range | 540-800V DC |
| Operating Voltage Range | 240-950V DC |
| Number of MPPT Trackers | 2 |
| Maximum DC Input Current | 35A per MPPT (70A total) |
| Maximum PV Power (Per MPPT) | 27 kW |
| Nominal AC Output Voltage | 480V AC, 3-Phase |
| Continuous Output Power | 36kW |
| Maximum Output Current | 43.5A |
| Nominal Frequency | 60 Hz |
| Output Frequency Range | 57-63 Hz |
| Power Factor | Unity, adjustable ±0.8 |
| Total Harmonic Distortion (THD) | <3% |
| Peak Efficiency | 98.5% |
| CEC Efficiency | 98.0% |
| Data Communication | RS-485 (Modbus RTU) |
| Certifications | UL 1741, IEEE 1547, CSA C22.2#107.1, FCC Part 15 B |
| Ambient Operating Temperature | -22°F to +140°F (-30°C to +60°C) |
| Enclosure Rating | Type 4X (Outdoor Rated) |
| Mounting Angle | 15° to 90° |
| Dimensions (H x W x D) | 39.4" x 23.6" x 9.6" |
| Weight | 144 lbs |
| Warranty | 10 years standard |
