SolarEdge USA Domestic Content Eligible Power Optimizer U650B
U650B
SolarEdge USA Domestic Content Eligible Power Optimizer U650B

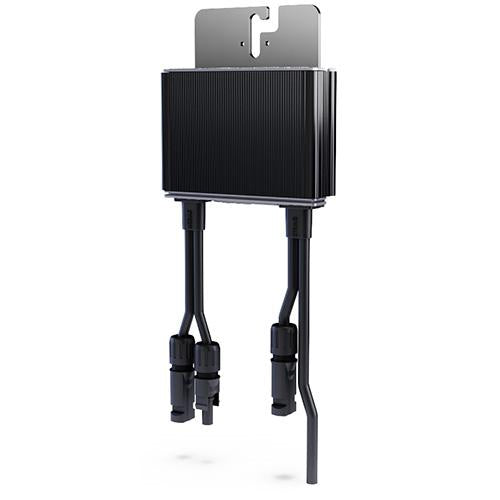

The SolarEdge U650B is a high-performance, USA-manufactured power optimizer designed for PV module-level optimization. Offering an extended input voltage range and higher output voltage than the U650, it improves design flexibility for complex roof layouts and supports high-Voc modules.
Key Benefits
Extended Voltage Range: Operates from 12.5–100 Vdc input with up to 80 Vdc output for greater design flexibility.
High Efficiency: 99.5% maximum efficiency with 98.6% weighted efficiency for superior energy harvest.
Advanced Safety: Integrated SafeDC™ shutdown and patented Sense Connect technology for arc prevention.
Broad Compatibility: Works with a wide range of PV modules, including high-powered and bifacial types.
Special Technology
Sense Connect: Monitors connector temperature to detect and prevent potential arc faults before they occur.
SafeDC™: Automatically reduces module voltage to a safe level when the inverter or grid is shut down.
SunSpec & NEC Compliance: Meets Photovoltaic Rapid Shutdown System (PVRSS) and AFCI requirements.
Warranty
25-Year Manufacturer Warranty.
Best Uses
Residential Rooftop: Ideal for complex or shaded arrays requiring module-level optimization.
Commercial PV: Suitable for large-scale designs with mixed orientations or string lengths.
Specifications Table
| Specification | Data |
|---|---|
| Model | U650B |
| Rated Input DC Power | 650 W |
| Absolute Max Input Voltage (Voc) | 100 Vdc |
| MPPT Operating Range | 12.5 – 100 Vdc |
| Max Input Current (Isc) | 15 Adc |
| Max Input Short Circuit Current | 18.75 Adc |
| Max Efficiency | 99.5% |
| Weighted Efficiency | 98.6% |
| Max Output Current | 15 Adc |
| Max Output Voltage | 80 Vdc |
| Safety Output Voltage | 1 ± 0.1 Vdc |
| Max Allowed System Voltage | 1000 Vdc |
| Dimensions (W × L × H) | 5.07 × 6.49 × 1.77 in |
| Weight | 1.74 lbs |
| Input Connector | MC4 |
| Input Wire Length | 0.1 m (0.32 ft) |
| Output Connector | MC4 |
| Output Wire Length | (+) 2.3 m / 7.54 ft, (-) 0.10 m / 0.32 ft |
| Operating Temperature | -40°C to +75°C (-40°F to +167°F) |
| Protection Rating | IP68 / NEMA 6P |
| Relative Humidity | 0 – 100% |
| Compliance | NEC 2014–2023, UL 1741, CSA C22.2#107.1, IEC 62109-1, FCC Part 15 Class B |
| Warranty | 25 Years |
About SolarEdge:
SolarEdge Technologies, founded in 2006 in Israel, is a global leader in smart energy. They pioneered DC‑optimized solar inverters paired with module‑level power optimizers that boost system performance, increase safety, and simplify monitoring. Serving residential, commercial, and utility-scale markets, SolarEdge also offers storage, EV charging, UPS, grid services, and energy management platforms. They support over 47,000 installers in 34 countries with solutions deployed in 140+ nations.
