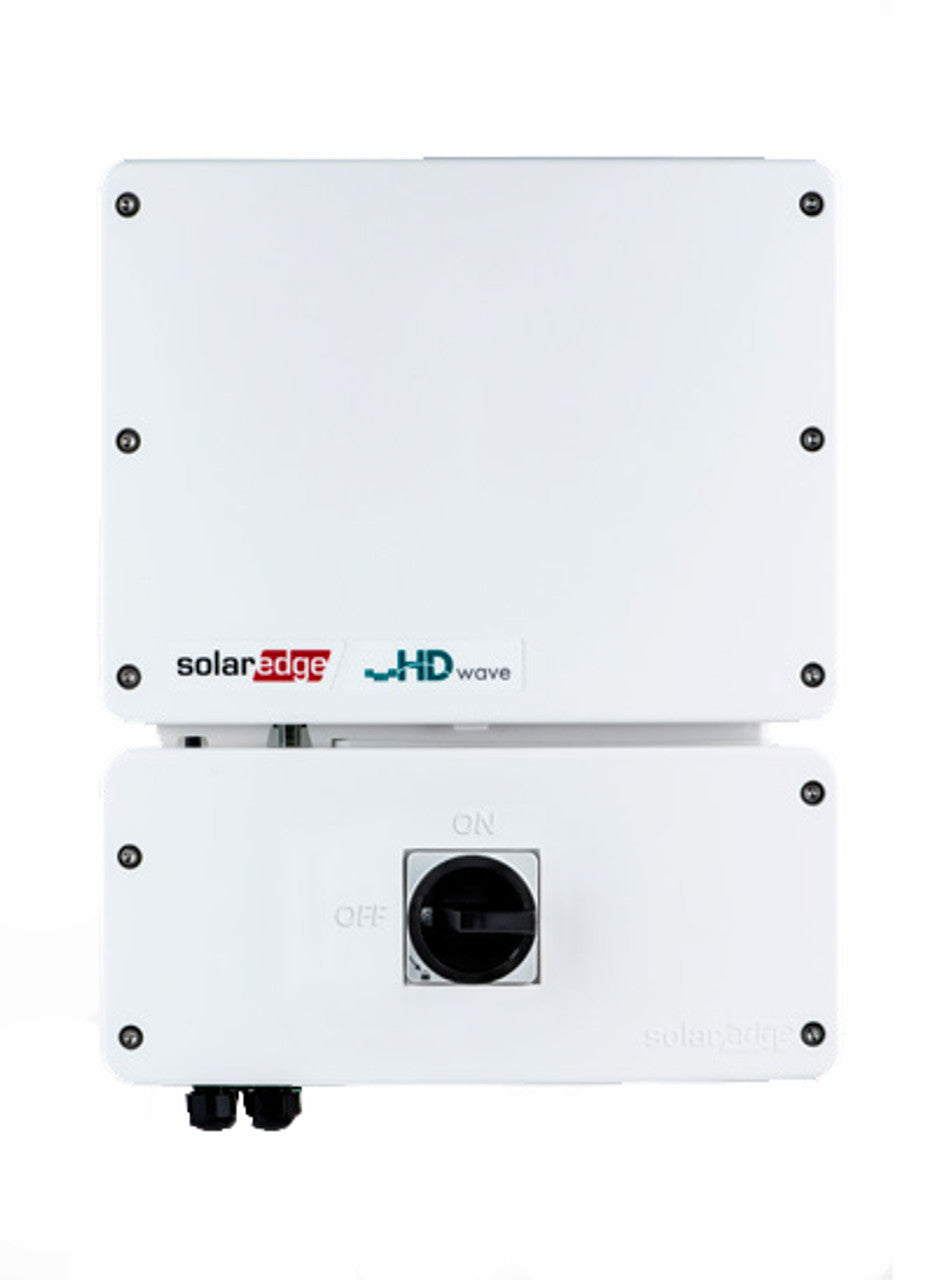

SolarEdge SE3800H-US Single Phase Hub Inverter with HD-Wave Technology

SolarEdge SE3800H-US Single Phase Hub Inverter with HD-Wave Technology

Regular price $2,185
Sale price $2,185 Regular price
SOLD OUT
No reviews
Leave a Review

MPN No: SE3800H-US

SolarEdge SE3800H-US Single Phase Hub Inverter with HD-Wave Technology

SolarEdge SE3800H-US Single Phase Hub Inverter with HD-Wave Technology

No reviews
Leave a Review
Regular price $2,185
Sale price $2,185 Regular price

1
2
3
4
5
6

View full details
Description
Questions
Reviews
SolarEdge
Manufacturer
SolarEdge
Weight
30.8 lb
Dimension
17.7 x 14.6 x 6.8 inches

SolarEdge SE3800H-US Single Phase Hub Inverter with HD-Wave Technology

Introducing the revolutionary SolarEdge SE3800H-US Single Phase Hub Inverter, featuring groundbreaking HD-Wave Technology. This compact, lightweight inverter is engineered for maximum efficiency and reliability, providing an optimal solution for residential solar energy systems.

  • Unprecedented 99% weighted efficiency with 200% DC oversizing capability.
  • Modular design ensures future readiness with optional upgrades.
  • Integrated safety features including arc fault protection and rapid shutdown.
  • Direct connectivity to SolarEdge's Home EV Charger and energy storage solutions.
  • Supports multi-inverter storage solutions, enhancing battery power up to 10kW.

Technology and Overview

The SE3800H-US incorporates HD-Wave Technology to achieve remarkable efficiency, significantly reducing heat and extending the inverter's lifespan. It offers smart energy management, enabling optimized battery storage, EV charging, and real-time energy consumption monitoring.

Installation and Compatibility Overview

Designed for straightforward installation, the SE3800H-US is compatible with indoor and outdoor setups. Its wireless communication features ensure easy integration with the SolarEdge Home Network for a comprehensive energy management solution.

Benefits and Applications Overview

The SE3800H-US inverter enhances solar energy utilization, leading to significant cost savings and contributing to environmental sustainability. It's perfectly suited for a variety of applications, including residential solar, EV charging, and battery storage.

Specifications

Specification Value
Model No. (Applicable to inverters with part number - SEXXXXH-USMNBBXXX) SE3800H-US
Rated AC Power (208V / 240V) 3300 W / 3800 W
Maximum AC Power Output (208V / 240V) 3300 W / 3800 W
AC Output Voltage (Nominal) 208 / 240 Vac
AC Output Voltage (Range) 183 – 264 Vac
AC Frequency Range (min - nom - max) 59.3 – 60 – 60.5(2) Hz
Maximum Continuous Output Current @ 240V 16 A
Maximum Continuous Output Current @ 208V 16 A
GFDI Threshold 1 A
Total Harmonic Distortion (THD) < 3 %
Power Factor 1, adjustable -0.85 to 0.85
Utility Monitoring, Islanding Protection, Country Configurable Thresholds Yes
Charge Battery from AC (if allowed) Yes
Typical Nighttime Power Consumption < 2.5 W
Rated AC Power in Backup Operation 7600 W
AC L-L Output Voltage Range in Backup 211 – 264 Vac
AC L-N Output Voltage Range in Backup 105 – 132 Vac
AC Frequency Range in Backup (min - nom - max) 55 – 60 – 65 Hz
Maximum Continuous Output Current in Backup Operation 32 A
GFDI 1 A
THD < 5 %
Rated AC Power 9600 W
AC Output Voltage Range 211 – 264 Vac
On-Grid AC Frequency Range (min - nom - max) 59.3 – 60 – 60.5 Hz
Maximum Continuous Output Current @240V (grid, PV and battery) 40 Aac
Transformer-less, Ungrounded Yes
Max Input Voltage 480 Vdc
Nom DC Input Voltage 380 Vdc
Reverse-Polarity Protection Yes
Ground-Fault Isolation Detection 600k? Sensitivity
Maximum DC Power @ 240V 7600 W
Maximum DC Power @ 208V 6600 W
Maximum Input Current(4) @ 240V 20 Adc
Maximum Input Current(4) @ 208V 9 Adc
Max. Input Short Circuit Current 45
Maximum Inverter Efficiency 99.20%
CEC Weighted Efficiency 99.00%
2-pole Disconnection Yes
Supported Battery Types SolarEdge Home Battery, LG RESU Prime
Number of Batteries per Inverter Up to 3 SolarEdge Home Battery, up to 2 LG RESU Prime
Continuous Power(5) (208 / 240) 3800 W / 7600 W
Peak Power(5) (208 / 240) 3800 W / 7600 W
Max Input Current 20 Adc
2-pole Disconnection Up to inverter rated backup power
Consumption Metering Built-in(6)
Backup & Battery Storage With Backup Interface (purchased separately) for service up to 200A; up to 3 inverters
EV Charging Direct connection to SolarEdge Home EV Charger
Supported Communication Interfaces RS485, Ethernet, Cellular(7, 8), Wi-Fi(8), SolarEdge Home Network
Revenue Grade Metering, ANSI C12.20 Built-in(6)
Integrated AC, DC and Communication Connection Unit Yes
Inverter Commissioning With the SetApp mobile application using built-in Wi-Fi Access Point for local connection
DC Voltage Rapid Shutdown (PV and Battery) Yes, according to NEC 2014 – 2023 per article 690.11 and article 690.12
Safety UL 1741, UL 1741SA, UL 1741SB, UL 1699B, CSA 22.2#107.1, C22.2#330, C22.3#9, ANSI/CAN/UL 9540
Grid Connection Standards IEEE 1547 and IEEE 1547.1, Rule 21, Rule 14H
Emissions FCC Part 15 Class B
AC Output and EV AC Output Conduit Size / AWG Range 1'' maximum / 14 – 4 AWG
DC Input (PV and Battery) Conduit Size / AWG Range 1'' maximum / 14 – 6 AWG
Dimensions with Connection Unit (H x W x D) 17.7 x 14.6 x 6.8 in / 450 x 370 x 174 mm
Weight with Connection Unit 30.8 lb / 14 kg
Noise < 50 dBA
Cooling Natural Convection
Operating Temperature Range (-) 40 to (+) 140 / (-) 40 to (+)60(9) ?F / ?C
Protection Rating NEMA 4X
Warranty 12 years. Extendable to 20 Years
