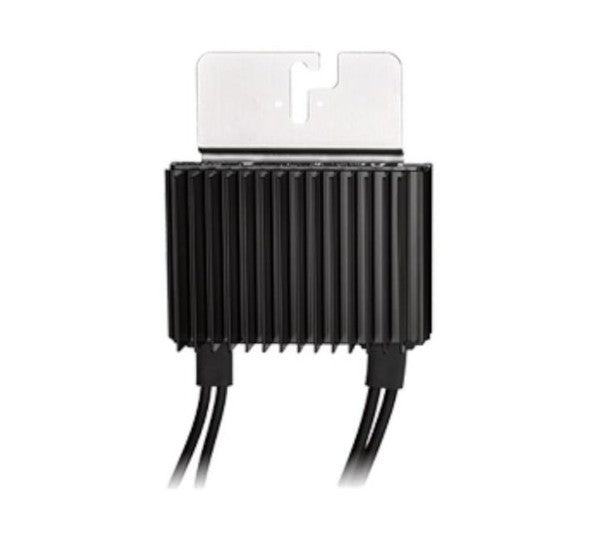

SolarEdge Power Optimizer S500B

SolarEdge Power Optimizer S500B

Regular price $117.09
Regular price $129.99 -9% Sale price $117.09
10% OFF
LESS THAN 50
Leave a Review
Sale

SolarEdge Power Optimizer S500B

SolarEdge Power Optimizer S500B

SolarEdge
MPN No: S500B
In Stock
Regular price $117.09
Regular price $129.99 -9% Sale price $117.09

1
2
3
4
5
6

Delivery

Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.

Expected ship date May 14 - 17 About shipping

Payment

We offer multiple secure payment options for your convenience

View full details
Regular price $117.09
Regular price $129.99 -9% Sale price $117.09

Specifications

SolarEdge Power Optimizer S500B 500W

The SolarEdge Power Optimizer S500B is a high-performance DC/DC converter designed to maximize the energy harvest from solar panels. It ensures superior power optimization and monitoring for large-scale commercial and utility solar installations.

Module-Level Maximum Power Point Tracking (MPPT): This allows each individual solar panel to operate at its peak efficiency, regardless of shading, soiling, or other factors that can affect performance.
Module-Level Monitoring: Provides real-time data on the performance of each individual solar panel, enabling precise monitoring and troubleshooting. This requires the SolarEdge monitoring platform.


Enhanced Safety Features

Voltage cut-off: This feature reduces DC voltage to safe levels during installation, maintenance, or in emergency situations, like a fire.
Detection of abnormal PV connector behavior: This helps to prevent potential safety hazards.
Increased Energy Production: By mitigating losses from module mismatch and partial shading, the optimizer helps to maximize the overall energy yield of the PV system.
Design Flexibility:It offers flexibility in system design, allowing for the installation of solar panels in various orientations and locations, even those with shading.
Compatibility: Designed to work with SolarEdge inverters.
High Efficiency: These optimizers have very high efficiency ratings, meaning that very little of the DC power is lost during its processing.

Technology and Overview

The SolarEdge S500B Power Optimizer utilizes advanced power optimization technology to extract the maximum power from each solar panel individually. Its innovative design ensures optimal performance under different shading conditions, resulting in higher energy yields.

Installation and Compatibility

Installing the S500B Power Optimizer is straightforward, and it is compatible with a wide range of high-power solar modules. Its flexible design allows for easy integration into commercial and utility-scale solar installations, providing maximum energy production.

Benefits and Applications

The S500B Power Optimizer offers numerous benefits, including increased energy production, improved system reliability, and enhanced monitoring capabilities. It is ideal for large-scale commercial and utility solar projects, providing maximum return on investment.

SolarEdge S500B Power Optimizer - Key Specifications

Feature Specification Notes
Power Input (DC)
Maximum Input Power 500 Watts Designed for modules up to 500W.
Maximum Input Voltage (Voc) 125 Volts Maximum voltage at the lowest temperature.
MPPT Operating Range 12.5 - 105 Volts
Maximum Short Circuit Current (Isc) 15 Amps
Connector Type MC4 compatible
Power Output (DC)
Maximum Output Current 15 Amps
Maximum Output Voltage 80Vdc
Performance
Maximum Efficiency 99.5%
Weighted Efficiency 98.6%
System
Compatible Inverters SolarEdge Single-Phase & Three-Phase Requires SolarEdge inverter.
Minimum String Length 6 optimizers for SolarEdge single phase inverters.
Maximum String Length 25 optimizers for SolarEdge single phase inverters.
Environmental
Operating Temperature -40°F to +185°F (-40°C to +85°C)
Protection Rating IP68 Dust-tight and waterproof.
Physical
Dimensions (W x L x H) 5.1 x 6.5 x 1.8 inches
Weight 1.7 lbs Including cables
Key Features
Module Level MPPT Yes Maximizes energy production from each module.
Module Level Monitoring Yes Requires SolarEdge monitoring platform.
Saftey features voltage cut-off Safety for installers and fire fighters.
Compliance
Safety Standards IEC62109-1, UL1741
EMC Standards FCC Part15 Class B, IEC61000-6-2, IEC61000-6-3
Warranty 25 Years
