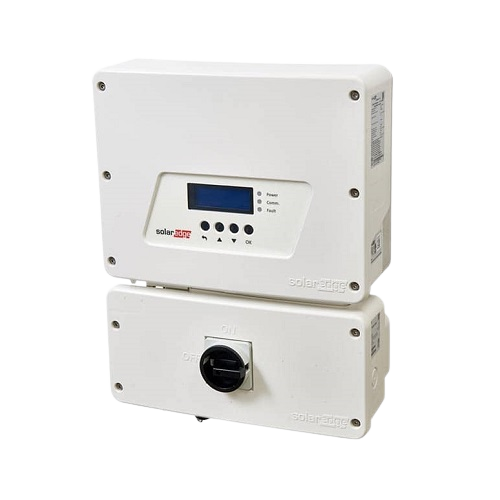

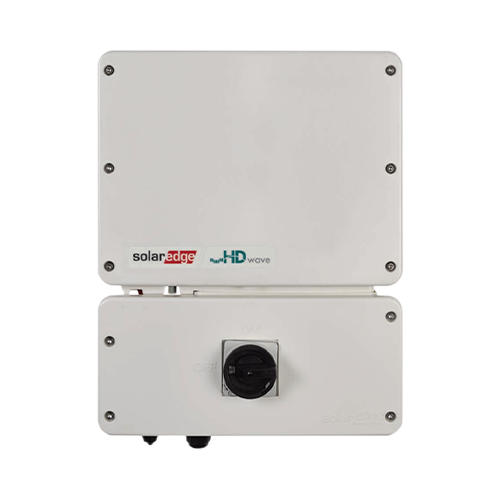

Solaredge HD-WAVE 7.6kW 1-ph Inverter SE7600H-US000BEU4
MPN No: SE7600H-US000BEU4
Contact us for Delivery Date
Out Of Stock
2,147.02
-6%
$2,291.77
Solaredge HD-WAVE 7.6kW 1-ph Inverter SE7600H-US000BEU4
Solaredge HD-WAVE 7.6kW 1-ph Inverter SE7600H-US000BEU4
Regular price
$2,147.02
-6%
$2,291.77
-7% OFF
SOLD OUT
Solaredge HD-WAVE 7.6kW 1-ph Inverter SE7600H-US000BEU4
Solaredge HD-WAVE 7.6kW 1-ph Inverter SE7600H-US000BEU4
Out Of Stock
MPN No: SE7600H-US000BEU4
Regular price
$2,147.02
-6%
$2,291.77
Contact us for Delivery Date
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$2,147.02
-6%
$2,291.77
Solaredge HD-WAVE 7.6kW 1-ph Inverter SE7600H-US000BEU4
The SE7600H-US000BEU4 is a 7.6 kW single-phase SolarEdge inverter featuring HD-Wave power conversion, integrated rapid shutdown, and built-in module-level monitoring. Designed to operate exclusively with SolarEdge power optimizers, it delivers record 99% weighted efficiency, long string lengths with fixed-voltage MPPT, and a compact NEMA 4X enclosure for indoor/outdoor installs.
Key Benefits
High Efficiency: Up to 99% max / 99% CEC (240 V) for excellent energy yield.
Optimizer-Based: Fixed-voltage DC design enables longer strings and shade-tolerant layouts.
Fast Commissioning: SetApp smartphone commissioning with built-in Wi-Fi AP.
Compliance & Safety: UL1741 SA/SB, Rule 21/14H, integrated AFCI and NEC 690.12 rapid shutdown.
Special Technology
HD-Wave Topology: High-frequency switching reduces magnetics for a light, compact inverter.
Energy Insights Ready: Optional consumption metering (1% accuracy) and revenue-grade production metering (0.5%, ANSI C12.20) via specific part variants.
Warranty
12–25-Year Manufacturer Warranty (model/registration dependent).
Best Uses
Residential Rooftops: Multi-orientation arrays with module-level monitoring and safety.
Optimizer Systems: Sites requiring long strings, shade mitigation, and rapid shutdown compliance.
Specifications Table
| Specification | Data |
|---|---|
| Model / Part | SE7600H-US000BEU4 |
| Type | Single-phase grid-tie inverter (optimizer-based) |
| Rated AC Power Output | 7,600 VA @ 240 Vac |
| Max AC Power | 7,600 VA |
| AC Voltage (min/nom/max) | 211–240–264 Vac (240 V) |
| AC Frequency | 59.3–60–60.5 Hz |
| Max Continuous Output Current | 32 A @ 240 V |
| Power Factor | 1.0 (adjustable 0.85 lead to 0.85 lag) |
| Max DC Power (240 V) | 11,800 W |
| Max DC Voltage / Nominal DC | 480 Vdc / 380–400 Vdc |
| MPPT | Fixed-voltage DC design; use with SolarEdge optimizers |
| Max Input Current | 20 Adc (inverter limits input current) |
| Max DC Short-Circuit Current | 45 Adc |
| Max Efficiency / CEC (240 V) | 99.0% / 99.0% |
| Night Consumption | < 2.5 W |
| Communications | RS485, Ethernet; optional ZigBee or Cellular |
| Rapid Shutdown | Integrated per NEC 2014/2017/2020 690.12 |
| Protection / Safety | AFCI, RCMU, GFDI/monitoring; anti-islanding |
| Enclosure / Cooling | NEMA 4X (with Safety Switch) / Natural convection |
| Operating Temp | −40 to +140 °F (−40 to +60 °C); full power ≥122 °F |
| Dimensions (H × W × D) | 21.3 × 14.6 × 7.3 in |
| Weight (with Safety Switch) | 32 lb |
| Certifications | UL1741 SA/SB, UL1699B, IEEE 1547, FCC Part 15B; Rule 21/HECO 14H |
| Warranty | 12–25 Years |
Why SolarEdge?
SolarEdge is a global leader in smart energy technology, renowned for its innovative approaches to power management. Founded in 2006 in Israel but headquarter in California, the company has been at the forefront of solar energy solutions for over 17 years. SolarEdge specializes in a wide range of products, including solar inverters, power optimizers, and a comprehensive suite of monitoring and smart energy management solutions.
One of the defining technologies of SolarEdge is its power optimizer, which maximizes energy output from each solar panel through constant tracking of maximum power points. This allows for increased energy yield and improved system operation.
SolarEdge products come with a warranty that demonstrates their commitment to quality and customer satisfaction. Typically, their inverters come with a standard warranty of 12 to 25 years, while power optimizers usually carry a 25-year warranty.
The company has also garnered numerous accolades for its contributions to the renewable energy sector. Some of their notable awards include:
Top Solar Brand by Bloomberg New Energy Finance
Solar Power World’s Top Solar Contractor
Intersolar Award Recipient for Renewable Energy Innovation
Why Buy From US Solar Supplier?
As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on. We are updating our inventory daily with solar components that offer the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.
Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.
Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.
Expert Support: Our team is here to guide you every step of the way.
Manufacturer-Backed Warranties: Enjoy peace of mind with the 25-year performance guarantee and 12-year product warranty directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.
Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!
FAQ
Shipping costs at US Solar Supplier are calculated based on the weight and dimensions of the product(s) in your order. The company utilizes FedEx or UPS for ground shipments and trusted freight carriers for larger shipments. All shipments are insured for customer protection.
For standard delivery, most orders will arrive at their destination within 7 to 10 business days. Please note that these estimates can change depending on the carrier's operational capabilities and other uncontrollable factors.
It is essential to meticulously inspect your shipment upon delivery. If any damage or issues are found, note them on the Bill of Lading (BOL) or the delivery receipt. Major visible damage should result in the rejection of the delivery. Any damages must be reported to US Solar Supplier by email within 24 hours of delivery, including the signed BOL and any supporting documents or photos.
US Solar Supplier offers only the best Tier 1 product offerings and high-quality solar equipment. You can design your solar project using the solar design tool, tailored to fit your needs. If you have specific preferences or deadlines, include this information in the order notes or contact the sales department before placing your order. US Solar Supplier is committed to empowering you with the tools and support needed to ensure your project's success.
US Solar Supplier offers a range of finance solutions through its partners, including Power Purchase Agreements, Leases, and Loans. Additionally, their consultative approach can help you take advantage of PACE financing for commercial projects. The team at US Solar Supplier is ready to assist in finding the right finance solution to make your solar project a reality.
