SolarEdge Cellular Plug-In with 5-Year Data Plan CELL-B-R05-US-T-S6

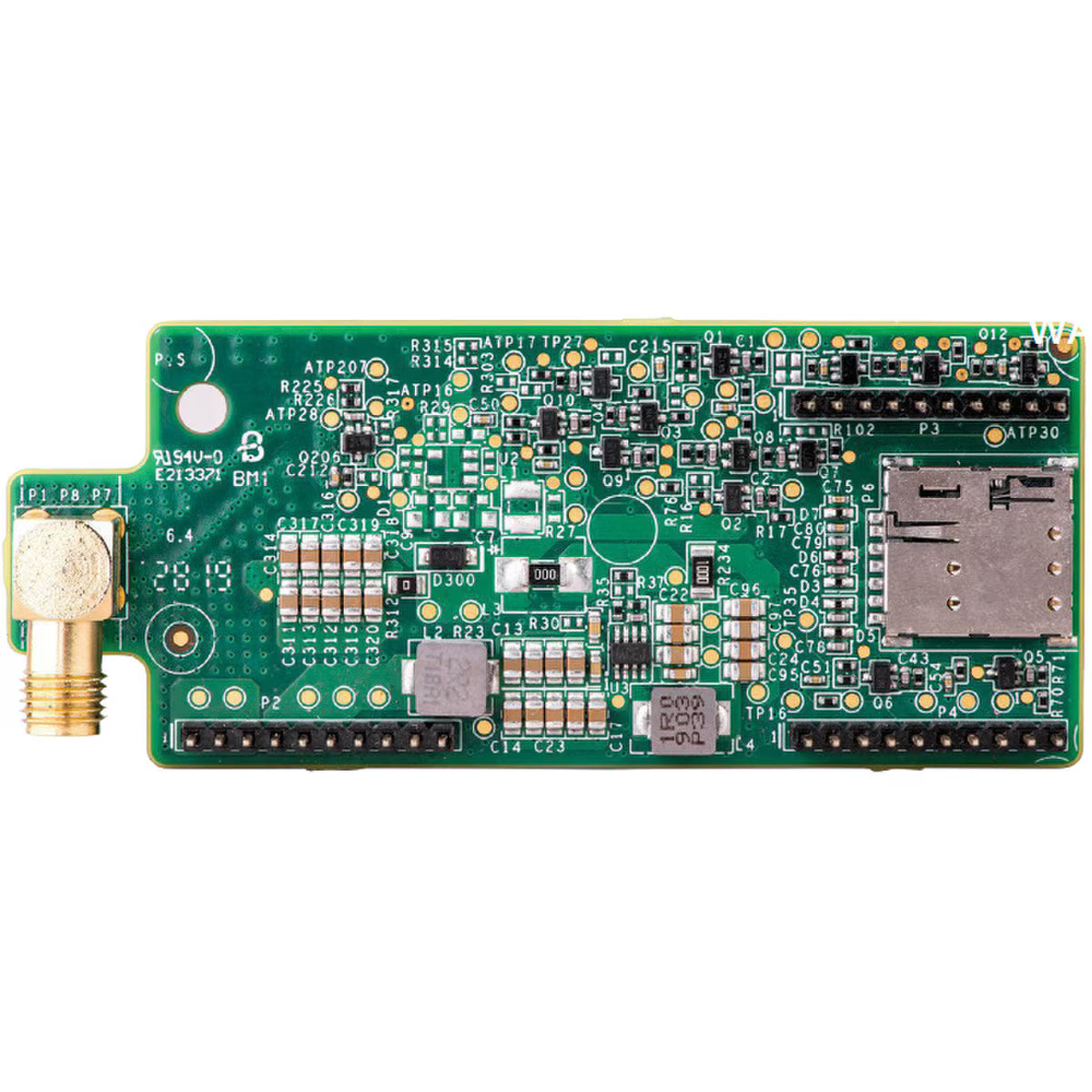

The SolarEdge CELL-B-R05-US-T-S6 is a commercial-grade LTE Cat M1 cellular communication plug-in designed to provide reliable wireless internet connectivity for SolarEdge commercial inverter systems and SolarEdge ONE Manager applications. Engineered for seamless monitoring and remote system management, this communication module eliminates the need for on-site internet infrastructure while supporting high-bandwidth telemetry and remote troubleshooting.
Installed directly within compatible SolarEdge inverter enclosures for outdoor resilience, the CELL-B-R05-US-T-S6 includes a prepaid 5-year cellular data plan and supports continuous 5-minute monitoring telemetry across commercial photovoltaic systems.
Key Technology
-
LTE Cat M1 Cellular Connectivity
Provides secure wireless communication for commercial SolarEdge energy systems. -
Integrated 5-Year Data Plan
Includes prepaid cellular connectivity for long-term monitoring and remote access. -
No Internet Infrastructure Required
Eliminates the need for wired Ethernet or local internet connections at installation sites. -
Commercial System Monitoring
Supports continuous 5-minute telemetry for multiple commercial inverters. -
SolarEdge ONE Manager Compatibility
Designed for integration with SolarEdge ONE commercial monitoring platforms. -
Outdoor-Resilient Installation
Mounts directly within compatible inverter enclosures for reliable outdoor operation. -
Remote Diagnostics & Troubleshooting
Enables remote system analysis, monitoring, and service support. -
Broad LTE Frequency Support
Supports multiple LTE frequency bands for extensive US network compatibility.
Best Uses
-
Commercial Solar Installations
Provides reliable monitoring connectivity for commercial SolarEdge PV systems. -
SolarEdge ONE Manager Systems
Supports centralized monitoring and energy management applications. -
Remote Solar Sites
Ideal for installations without local wired internet access. -
Multi-Inverter Monitoring
Supports telemetry and communication for large commercial inverter systems.
Warranty
- Manufacturer Warranty: 5 Years
- Included Data Plan: 5-Year Prepaid Cellular Plan
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | SolarEdge Technologies |
| Model | CELL-B-R05-US-T-S6 |
| Product Type | Cellular Communication Plug-In |
| Application | Commercial Solar Monitoring |
| Network Technology | LTE Cat M1 |
| Monitoring Capability | Continuous 5-Minute Telemetry |
| Supported Systems | Commercial Inverters & SolarEdge ONE Manager |
| Number of Supported Inverters | Up to 32 Commercial Inverters |
| Supported Commercial System Size | All Standard Commercial Power Ratings |
| Data Plan Duration | 5 Years Prepaid |
| LTE Frequency Bands | B1, B2, B3, B4, B5, B8, B12, B13, B18, B19, B20, B25, B26, B28, B39 |
| Bandwidth | 1.4 / 3 / 5 MHz |
| Maximum Transmit Power | 23 dBm |
| Receiver Input Sensitivity | -107 dBm |
| Modulation | Downlink: QPSK/16QAM/64QAM, Uplink: QPSK/16QAM |
| Antenna Type | Outdoor |
| Antenna Gain | 2 dBi |
| Antenna Connector | RP-SMA or N Plug |
| Antenna Cable Length | 71 in (1800 mm) |
| SIM Card Type | Nano SIM |
| Power Consumption | 0.85 W (@23 dBm Output) |
| Dimensions | 3.07 × 1.27 × 0.56 in |
| Operating Temperature | -40°F to 185°F (-40°C to 85°C) |
| Mounting | Built into Inverter or Purchased Separately |
| Compliance | FCC Part 15/22/24 Class B, IC, AS/CA S042.4, RoHS |
| Safety Certifications | cUL, UL60950 |
About SolarEdge Technologies:
SolarEdge Technologies is a global smart energy company specializing in inverter systems, module-level power electronics, energy storage, EV charging, and intelligent energy management solutions for residential and commercial solar applications.
Reliable Cellular Monitoring for Commercial SolarEdge Energy Systems
The SolarEdge CELL-B-R05-US-T-S6 combines industrial LTE communication, integrated long-term data connectivity, and advanced commercial monitoring support—making it an ideal communication solution for professional SolarEdge photovoltaic systems.
