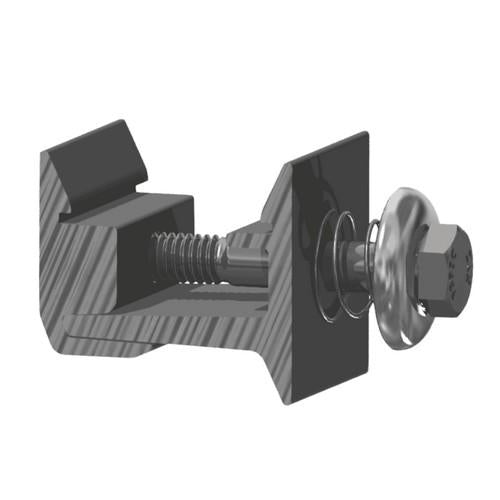

SnapNrack Ultra Rail Mounting Clamp Silver Ultra Rail 242-01229
MPN No: 242-01229
Expected ship date Feb 07 - 14
In Stock
$3.84
SnapNrack Ultra Rail Mounting Clamp Silver Ultra Rail 242-01229
SnapNrack Ultra Rail Mounting Clamp Silver Ultra Rail 242-01229
Regular price
$3.84
New
132 IN STOCK
SnapNrack Ultra Rail Mounting Clamp Silver Ultra Rail 242-01229
SnapNrack Ultra Rail Mounting Clamp Silver Ultra Rail 242-01229
Available
MPN No: 242-01229
Regular price
$3.84
Expected ship date Feb 07 - 14
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$3.84
SnapNrack Ultra Rail Mounting Clamp Silver Ultra Rail 242-01229
MPN No:
242-01229
Expected ship date Feb 07 - 14
SnapNrack Ultra Rail Mounting Clamp Silver Ultra Rail 242-01229
The SnapNrack TDS UltraFoot Rafter Mount (Part #242-01229) is a high-strength, rafter-mounted roof attachment engineered for fast, repeatable, and code-compliant rooftop solar installations. Designed as part of the SnapNrack TDS architecture, the UltraFoot integrates structural attachment, waterproofing, and rail connection into a compact, installer-friendly solution.
Key Technology
-
Direct Rafter Attachment
Engineered for secure fastening into wood rafters using a single 5/16" lag screw for high structural capacity. -
Ultra Rail Integrated Connection
Includes Ultra Rail mount spring and UR Flip Clamp hardware for fast, tool-efficient rail attachment. -
Butyl Flashing Pad
Factory-supplied butyl pad provides a durable, watertight seal at the roof penetration. -
High Structural Load Ratings
Designed to withstand significant uplift, downforce, and lateral loads for residential rooftop PV. -
UL 2703 Listed System
Certified for bonding and grounding when installed as part of a SnapNrack system.
Best Uses
-
Residential Rooftop Solar
Ideal for composition shingle roofs with rafter-based structural attachment. -
SnapNrack TDS & Ultra Rail Systems
Purpose-built for seamless integration with SnapNrack rail and module mounting components. -
High-Wind & High-Load Installations
Suitable for projects requiring strong uplift and lateral resistance.
Installation Notes
-
Installs directly into wood rafters with a 5/16" lag screw.
-
Includes pre-cut butyl flashing pad—no additional flashing required.
-
Torque specification: 16 ft-lbs.
-
Follow SnapNrack installation manual and local building codes.
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | SnapNrack |
| Product Name | TDS UltraFoot Rafter Mount |
| Part Number | 242-01229 |
| Mounting Type | Rafter-mounted |
| Fastener | 5/16" stainless steel lag screw |
| Torque Specification | 16 ft-lbs |
| Allowable Uplift | 1,325 lb |
| Allowable Downforce | 2,500 lb |
| Allowable Lateral Load | 735 lb |
| Materials | 6000-series aluminum, 300-series stainless steel |
| Finish | Black |
| Certification | UL 2703 (File E359313) |
| Weight | 0.37 lb |
About SnapNrack:
SnapNrack is a U.S.‑based solar mounting solutions company founded in 2007. It designs and manufactures innovative roof and ground solar racking systems that simplify installation, improve quality and safety, and cut costs for installers. SnapNrack’s products support various roof types and feature pre‑assembled hardware and integrated wire management.
High-Strength Rafter Attachment for SnapNrack TDS Systems
The SnapNrack 242-01229 UltraFoot™ Rafter Mount delivers exceptional structural performance, integrated waterproofing, and fast installation—making it a trusted attachment solution for professional residential rooftop solar installations.
