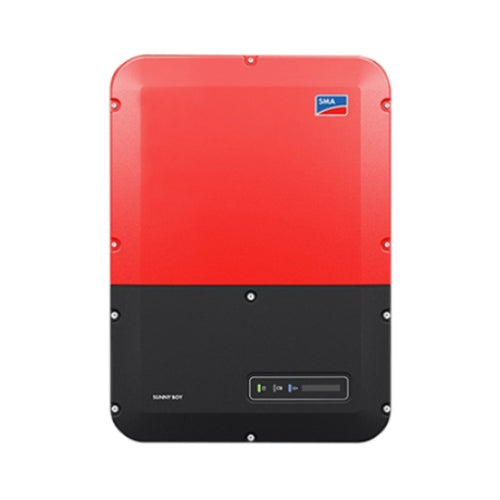

SMA Sunny Boy SB3.8-1SP-US-41 3.8kW 208/240VAC String Inverter

SMA Sunny Boy SB3.8-1SP-US-41 3.8kW 208/240VAC String Inverter

$1,768.84
$1,768.84
SOLD OUT
SOLD OUT

SMA Sunny Boy SB3.8-1SP-US-41 3.8kW 208/240VAC String Inverter

SMA Sunny Boy SB3.8-1SP-US-41 3.8kW 208/240VAC String Inverter

No reviews
$1,768.84
$1,768.84
View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
US Solar Supplier
Weight
66 lb
Dimension
(LxWxH): 21.1 x 28.5 x 7.8 Inches

  • The SMA Sunny Boy Inverter System is an all-in-one solution designed to cater to diverse energy needs. From Grid-tied to Off-Grid and Battery Backup configurations, this system effortlessly manages power across Solar, Battery, Grid, Loads, and Generators.

    Specifications

    General Information

    • Model: SMA SB3.8-1SP-US-41
    • Series: SUNNY BOY
    • Manufacturer: SMA

    Technical Details

    • Max PV Power: 6144 W
    • Max. DC Voltage: 600 V
    • Rated MPP Voltage Range: 195 - 480 V
    • MPPT Operating Voltage Range: 100 – 550 V
    • Min. DC Voltage / Start Voltage: 100 V / 125 V
    • Max. Operating Input Current Per MPPT: 10 A
    • Max. Short Circuit Current Per MPPT: 18 A

    AC Output

    • AC Nominal Power: 3330 W
    • Max. AC Apparent Power: 3330 VA
    • Nominal Voltage / Adjustable: 208 V / 240 V
    • AC Voltage Range: 211 – 264 V
    • AC Grid Frequency: 60 Hz / 50 Hz
    • Max. Output Current: 16.0 A

    Features

    High Reliability

    • Well-established cell interconnections and diode placements.
    • Comes with SMA Smart Connected for proactive service.

    Quality and Certifications

    • UL 1741, UL 1741 SA incl. CA Rule 21 RSD, UL 1998, UL 1699B Ed. 1, IEEE1547, FCC Part 15 (Class A & B), CAN/CSA V22.2 107.1-1, HECO Rule 14H, PV Rapid Shutdown System Equipment.

    Warranty

    • 10-Year Standard Warranty (Refer to warranty document for terms and conditions)

    Documentation
