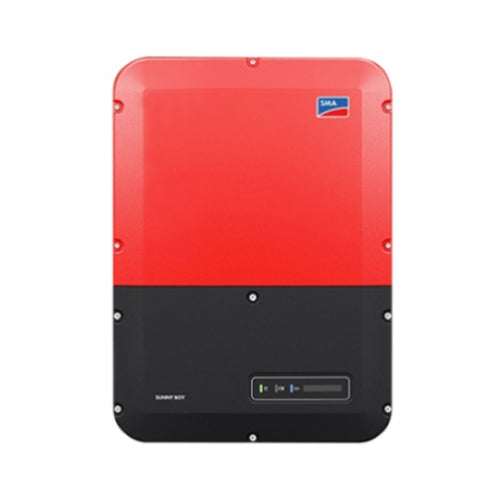

SMA Sunny Boy SB 3.0-1SP-US-41 3.0kW String Inverter W/ SPS 2 MPPT

SMA Sunny Boy SB 3.0-1SP-US-41 3.0kW String Inverter W/ SPS 2 MPPT

Regular price $1,250.46
Sale price $1,250.46 Regular price
SOLD OUT
SOLD OUT

SMA Sunny Boy SB 3.0-1SP-US-41 3.0kW String Inverter W/ SPS 2 MPPT

SMA Sunny Boy SB 3.0-1SP-US-41 3.0kW String Inverter W/ SPS 2 MPPT

No reviews
Regular price $1,250.46
Sale price $1,250.46 Regular price
View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
SMA Solar
Weight
66 lb
Dimension
(LxWxH): 21.1 x 28.5 x 7.8 Inches

The SMA Inverter System is an all-in-one solution featuring an inverter, charger controller, and a display with remote monitoring capabilities. Designed for simplicity, it can be easily installed in Grid-tied, Off-Grid, or Battery Backup systems. The SMA Inverter System effectively manages power flow between Solar, Battery, Grid, Loads, and Generator.


SPECIFICATIONS

Model: SMA SB 3.0-1SP-US-41
Series: SUNNY BOY
Manufacturer: SMA


GENERAL SPECIFICATION

  • Max PV Power: 3100 W
  • Max. DC Voltage: 600 V
  • Rated MPP Voltage Range: 220 – 480 V
  • MPPT Operating Voltage Range: 100 – 550 V
  • Min. DC Voltage / Start Voltage: 100 V / 125 V
  • Max. Operating Input Current Per MPPT: 10 A
  • Max. Short Circuit Current Per MPPT: 18 A
  • AC Nominal Power: 3000 W
  • Max. AC Apparent Power: 3000 VA
  • Nominal Voltage / Adjustable: 208 V / 240 V
  • AC Voltage Range: 211 – 264 V
  • AC Grid Frequency: 60 Hz / 50 Hz
  • Max. Output Current: 12.5 A

Warranty

  • 10 Year Standard Warranty.
    (Refer to warranty document for terms and conditions)

Documentation


Detailed Information

The Sunny Boy 3.0-US/3.8-US/5.0-US/6.0-US/7.0-US/7.7-US models join the SMA lineup, offering field-proven solar technology supported by the world's #1 service team. This range includes improvements in design, stocking, and ordering, as well as streamlined installation to help your business operate more efficiently.

High reliability

  • Cell interconnections and diode placement are designed based on well-established industry practices and have been field-proven for excellent reliability.
  • Equipped with SMA Smart Connected, a proactive service solution integrated into Sunny Portal.

Quality and Certifications

  • UL 1741, UL 1741 SA incl. CA Rule 21 RSD, UL 1998, UL 1699B Ed. 1, IEEE1547, FCC Part 15 (Class A & B), CAN/CSA V22.2 107.1-1, HECO Rule 14H, PV Rapid Shutdown System Equipment.
