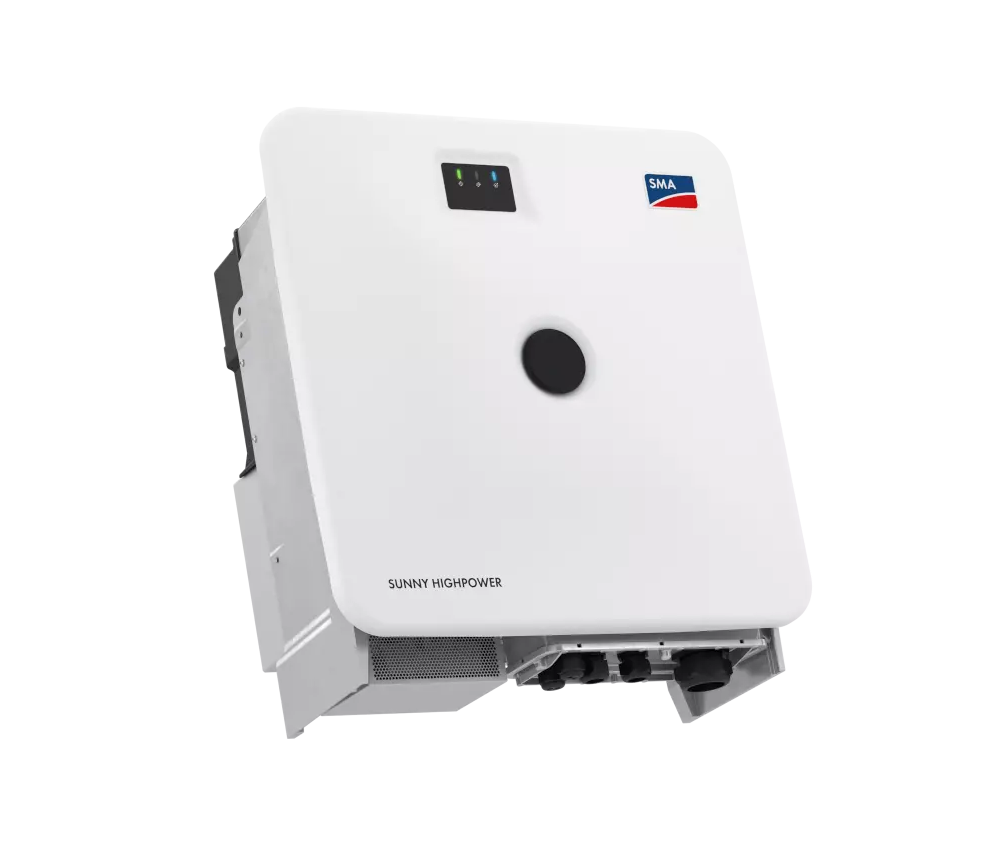

SMA SHP 125-US-21 Sunny Highpower PEAK3 1,500 VDC String Inverter

SMA SHP 125-US-21 Sunny Highpower PEAK3 1,500 VDC String Inverter

Regular price $11,556
Sale price $11,556 Regular price
SOLD OUT
No reviews
Leave a Review

MPN No: SHP 125-US-21

SMA SHP 125-US-21 Sunny Highpower PEAK3 1,500 VDC String Inverter

SMA SHP 125-US-21 Sunny Highpower PEAK3 1,500 VDC String Inverter

No reviews
Leave a Review
Regular price $11,556
Sale price $11,556 Regular price

1
2
3
4
5
6

View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
SMA Solar
Weight
218 lb
Dimension
30.3 x 32.7 x 18.2 inches

SMA SHP 125-US-21 Sunny Highpower PEAK3 1,500 VDC String Inverter

Introduce the robust SMA SHP 125-US-21, a premier string inverter designed for large-scale solar applications that demand high efficiency and reliability. Its innovative modular architecture significantly reduces balance of system costs and maximizes uptime, making it an ideal solution for cost-effective solar energy production.

  • Designed with a modular approach to ensure scalability and ease of maintenance.
  • Compact design and high power density for improved logistics and installation.
  • Maximized land usage with flexible system configuration.
  • Simplified installation and centralized control with the SMA Data Manager.
  • Benefit from SMA Smart Connected service for reduced O&M costs.

Technology and Overview

Leveraging the award-winning ennexOS energy management platform, the SHP 125-US-21 delivers top-tier performance and enables smart, cross-sector energy management.

Installation and Compatibility Overview

Ergonomic features and simple connections make installation quick and efficient. This inverter is compatible with a variety of PV systems, enhancing its versatility.

Benefits and Applications Overview

With the SHP 125-US-21, enjoy reduced operational costs, a faster path to energization, and advanced grid management capabilities, all contributing to a sustainable energy solution.

Specifications

Specification Value
Model No. SHP 125-US-21
Maximum array power 1) 250 kWp
Maximum system voltage 1500 Vdc
Rated MPP voltage range 705 V … 1450 V
MPPT operating voltage range 684 V … 1500 V
MPP trackers 1
Maximum operating input current 180 A
Maximum input short-circuit current 325 A
Nominal AC power 125 kW
Maximum apparent power 125 kVA
Output phases / line connections 3 / 3-PE
Nominal AC voltage 480 V
Compatible transformer winding configuration Wye-grounded
Maximum output current 151 A
Rated grid frequency 60 Hz
Grid frequency / range 50 Hz, 60 Hz / -6 Hz … +6 Hz
Power factor at rated power / adjustable displacement 1 / 0.8 leading … 0.8 lagging
Harmonics (THD) <3%
CEC efficiency 98.5%
Ground fault monitoring: Riso / Differential current Standard feature
DC reverse polarity protection Standard feature
AC short circuit protection Standard feature
Monitored surge protection (Type 2): DC / AC Standard feature
Protection class / overvoltage category (as per UL 840) I / IV
Device dimensions (W / H / D) 770 / 830 / 462 mm (30.3 / 32.7 / 18.2 in)
Device weight 99 kg (218 lbs)
Operating temperature range -25°C … +60°C (-13°F … +140°F)
Storage temperature range -40°C … +70°C (-40°F … +158°F)
Audible noise emission (full power @ 1m and 25°C) < 69 dB(A)
Internal consumption at night < 5 W
Topology Transformerless
Cooling concept OptiCool (forced convection, variable speed fans)
Enclosure protection rating Type 4X
Maximum permissible relative humidity (non-condensing) 1
Mounting Rack mount
DC connection Terminal lug (up to 600 kcmil CU/AL)
AC connection Screw terminal (up to 300 kcmil CU/AL)
LED indicators (Status/Fault/Communication) Standard feature
SMA Speedwire (Ethernet network interface) Standard (2 x RJ45 ports)
Data protocols: SMA Modbus / SunSpec Modbus Standard feature
Integrated Plant Control / Q on Demand 24/7 Standard feature
Off-grid capable / SMA Hybrid Controller compatible Not Available / Standard feature
SMA Sunny Portal (monitoring portal) No cost for the lifetime of the system
SMA Smart Connected (monitoring and remote O&M service) No cost on inverters under warranty
Supported protocols for outbound data SMA external API, Modbus, FTP
Certifications and approvals (pending) UL 62109, UL 1998, CAN/CSA-C22.2 No.62109
Manufacturer’s Declaration of Design Life 25 years
FCC compliance FCC Part 15, Class A
Grid interconnection standards IEEE 1547:2018, UL 1741-SA - CA Rule 21, HECO Rule 14H, UL1741SB
Advanced grid support capabilities L/HFRT, L/HVRT, Volt-VAr, Volt-Watt, Frequency-Watt, Ramp Rate Control, Fixed Power Factor
Standard Warranty 5 years
Optional extensions (total warranty coverage cannot exceed 25 years) +5 / +10 / +15 / +20 years
