SMA DC Surge Protection Kit DC_SPD_KIT6-10
SMA DC Surge Protection Kit DC_SPD_KIT6-10
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
SMA DC Surge Protection Kit DC_SPD_KIT6-10
DC_SPD_KIT6-10
SMA DC Surge Protection Kit DC_SPD_KIT6-10

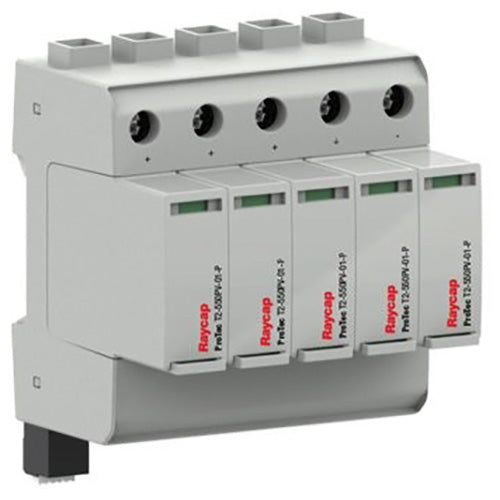

The DC_SPD_KIT6-10 features the Raycap ProTec, a robust surge protection device rated up to 1100 VDC. Designed to safeguard photovoltaic systems from transient overvoltages, this SPD offers Class II / Type 2 protection and is UL 1449 4th Edition certified.
The unit is DIN rail mountable, ideal for string boxes and inverter installations, and available in models with or without remote contacts for system monitoring. Its thermoplastic housing, high discharge current ratings, and compact DIN dimensions make it a perfect fit for modern solar electrical systems.
Key Benefits
High Voltage Protection: Supports up to 1100 VDC for modern high-power PV arrays.
Reliable Surge Handling: Nominal discharge current of 20 kA with total capacity up to 50 kA.
Thermal Protection: Built-in thermal disconnect and status indication for operational safety.
Flexible Installation: DIN rail mounting with compact footprint (5 TE width).
Optional Remote Contacts: Model available with RC terminals for alarm integration.
Special Technology
ProTec T2 Series Design: Specifically built for PV protection between (+/-)-PE and (+)-(-).
Class II / Type 2 SPD: Compliant with IEC 61643-31 and UL 1449 4th Edition standards.
Green Flag Fault Indication: Visual LED window for real-time operational status.
High SCCR: Short-circuit current rating of 50 kA ensures performance in high-fault current scenarios.
IP20 Enclosure: Thermoplastic housing rated UL 94 V-0 for fire resistance and safety.
Warranty
The SMA DC_SPD_KIT6-10 is backed by a standard manufacturer's warranty from Raycap, covering factory defects and compliance with listed certifications.
Best Use
String Boxes: Essential for protecting PV DC circuits from lightning-induced surges.
Inverter DC Inputs: Prevents transient damage to inverter electronics in solar arrays.
Code-Compliant Installs: UL 1449 4th Edition and IEC 61643-31 certified for U.S. and international standards.
High-Altitude & Harsh Environments: Rated for up to 13,123 ft (4000 m) and –40°F to 158°F operating conditions.
Specifications Table
| Specification | Value |
|---|---|
| Product Code | DC_SPD_KIT6-10 |
| SPD Model | ProTec T2-xxxxPV-5Y-01 (1100V) |
| Maximum DC Voltage | 1100 VDC |
| Nominal Discharge Current (In) | 20 kA (8/20 μs) |
| Maximum Discharge Current (Imax) | 40 kA (8/20 μs) |
| Total Discharge Capacity | 50 kA |
| Short-Circuit Current Rating (SCCR) | 50 kA |
| Voltage Protection Level (VPR) | 2500 V (+/-)-PE and (+)-(-) |
| Thermal Disconnection | Built-in |
| Operating Temperature | –40°F to +158°F (–40°C to +70°C) |
| Altitude Rating | Up to 13,123 ft (4000 m) |
| Enclosure / Mounting | Thermoplastic / 35 mm DIN Rail |
| Enclosure Rating | IP20 / UL 94 V-0 |
| Remote Contacts (RC) | Optional (AC/DC supported) |
| Visual Status Indicator | Green Flag / Not Green Flag |
| Conductor Size (max) | 6 AWG (power) / 10 AWG (RC) |
| Torque Rating | 35 lbf-in |
| Weight | 1.313 lb (standard) / 1.329 lb (with RC) |
| Dimensions (H × W × L) | 4.3 × 4.5 × 13.8 in |
| Standard Quantity | 3 units per box |
| Compliance | IEC 61643-31, UL 1449 Ed. 4, EN 61643-31 |
