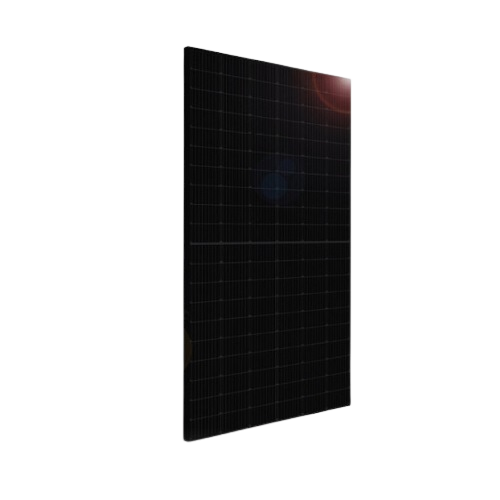

SILFAB 370W 120 Half-Cell Mono BLK/BLK 1000V Solar Panel, SIL-370 HC

SILFAB 370W 120 Half-Cell Mono BLK/BLK 1000V Solar Panel, SIL-370 HC

$176
$176

SILFAB 370W 120 Half-Cell Mono BLK/BLK 1000V Solar Panel, SIL-370 HC

SILFAB 370W 120 Half-Cell Mono BLK/BLK 1000V Solar Panel, SIL-370 HC

No reviews
$176
$176
View full details
Description
Questions
Reviews
Default manufacturer logo
Manufacturer
Silfab Solar
Weight
43 lb
Dimension
(LxWxH): 69.4 in x 40.8 in x 1.37 in
SILFAB 370W 120 Half-Cell Mono BLK/BLK 1000V Solar Panel, SIL-370 HC

Silfab 370W 120 Half-Cell Mono BLK/BLK 1000V Solar Panel, SIL-370 HC Designed to outperform. Dependable, durable, high-performance solar panels engineered for North American homeowners. Silfab Prime SIL-370 HC 370W Solar Module MAXIMUM ENERGY OUTPUT Silfab BC Series utilizes next-generation Back Contact technology to reduce production/manufacturing steps and improve quality while maximizing power. Ideal for residential and commercial projects where maximum power density is preferred.

Description image






SILFAB Solar's Specification

Model SILFAB PRIME SIL - 370 HC
Series SIL - 370 HC
Manufacturer SILFAB


MECHANICAL

Specification Data
Cell Type 120 Half cells - Si mono PERC
Cell Arrangement 9 busbar - 83 x 166 mm (3.26 x 6.53 in)
Dimensions 1762 mm x 1037 mm x 35 mm (69.4 in x 40.8 in x 1.37 in)
Weight 20.00 kg (40.0 lbs)
Front / Back Glass 3.2 mm high transmittance, tempered,DSM antirefl ective coating 0.126 in high transmittance, tempered,DSM antirefl ective coating
Frame Anodized aluminium
J-Box UL 3730 Certified, IEC 62790 Certified, IP67 rated
Cable 1350 mm, ø 5.7 mm, MC4 from Staubli
Cable Length (Including Connector) 53.15 in, ø 0.22 in (12AWG), MC4 from Staubli


ELECTRICAL

Nominal Max. Power (Pmax) 370 W
Opt. Operating Voltage (Vmp) 34.95 V
Opt. Operating Current (Imp) 10.60 A
Open Circuit Voltage (Voc) 41.75 V
Short Circuit Current (Isc) 11.25 A


Warranty

  • Module product workmanship warranty 25 years*
  • Linear power performance guarantee 30 year

* Refer to warranty document for terms and conditions

Documentation

Data Sheet


Detailed Information

All our products include an industry-leading 25-year product workmanship and 30-year performance warranty.

MAXIMUM ENERGY OUTPUT

Silfab BC Series utilizes next-generation Back Contact technology to reduce production/manufacturing steps and improve quality while maximizing power. Ideal for residential and commercial projects where maximum power density is preferred.

NORTH AMERICAN QUALITY

Silfab is the leading automated solar module manufacturer in North America. Utilizing premium quality materials and strict quality control management to deliver the highest efficiency, premium quality PV modules 100% made in North America.

High reliability

RELIABLE ENERGY DIRECT FROM THE SOURCE

Quality and certifications

ULC ORD C1703, UL1703, CEC listed***, UL 61215-1/-1-1/-2***, UL 61730-1/-2, IEC 61215-1/-1-1/-2***. IEC 61730-1/-2***, CSA C22.2#61730-1/-2***, IEC 62716 Ammonia Corrosion; IEC61701:2011 Salt Mist Corrosion Certifed, UL Fire Rating: Type 2
