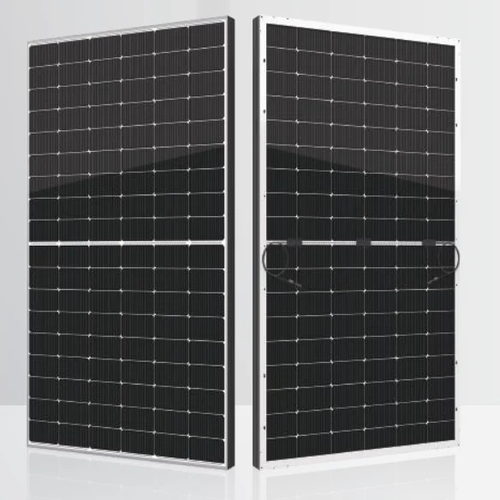

Seraphim 595W (Pallet of 36) N-type TOPCon Solar Panel SRP-595-BTA-BG
Built with advanced TOPCon cell technology and multi-busbar design, this module offers superior load capacity, reduced hot-spot risk, and up to 80%±5% bifaciality for enhanced rear-side energy gain. Backed by a 15-year product warranty and 30-year linear power output warranty, it is ideal for commercial and utility-scale solar projects.
Key Technology
-
TOPCon 182mm Cell Technology
Improved efficiency, lower annual attenuation, and superior long-term performance. -
High Bifaciality (80%±5%)
Rear-side gain of 7%–25% depending on installation and albedo conditions. -
Multi-Busbar (MBB) Design
Enhanced current collection and reduced resistive losses. -
Superior Mechanical Strength
Rated for 5400 Pa front and 2400 Pa rear loads. -
Low Temperature Coefficient
Pmax temperature coefficient of -0.29%/°C for improved hot-climate performance.
Best Uses
-
Utility-Scale Solar Farms
High 595W output reduces module count and BOS costs. -
Commercial & Industrial Installations
1500V compatibility and strong mechanical ratings support large arrays. -
Bifacial Ground-Mount & Tracker Systems
Rear-side power gain improves total system yield.
Warranty
- Product Warranty: 15 Years
- Performance Warranty: 30-Year Linear Power Output Warranty
- Annual Degradation: 0.4% after first year
- Guaranteed Output at Year 30: 87.4%
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Seraphim Energy Group |
| Model | SRP-595-BTA-BG |
| Cell Type | TOPCon 182 × 91 mm |
| Cell Configuration | 144 cells (6 × 24) |
| Maximum Power (Pmax) | 595 W |
| Module Efficiency (STC) | 23.03% |
| Maximum Power Voltage (Vmp) | 44.00 V |
| Maximum Power Current (Imp) | 13.54 A |
| Open Circuit Voltage (Voc) | 52.70 V |
| Short Circuit Current (Isc) | 14.25 A |
| Power Tolerance | 0 ~ +4.99 W |
| Maximum System Voltage | 1500 V DC |
| Maximum Series Fuse Rating | 25 A |
| Operating Temperature | -40°C to +85°C |
| NOCT | 45 ±2°C |
| Temperature Coefficient (Pmax) | -0.29% / °C |
| Temperature Coefficient (Voc) | -0.25% / °C |
| Temperature Coefficient (Isc) | +0.046% / °C |
| Bifaciality | 80% ±5% |
| Dimensions | 89.69 × 44.65 × 1.18 in |
| Weight | 70.55 lb |
| Front / Back Glass | 2.0 mm AR coating semi-tempered glass (double glass) |
| Frame | Anodized Aluminum Alloy |
| Junction Box | IP68, 3 diodes |
| Output Cables | 4.0 mm², 250mm(+)/350mm(-) |
| Mechanical Load | 5400 Pa front / 2400 Pa rear |

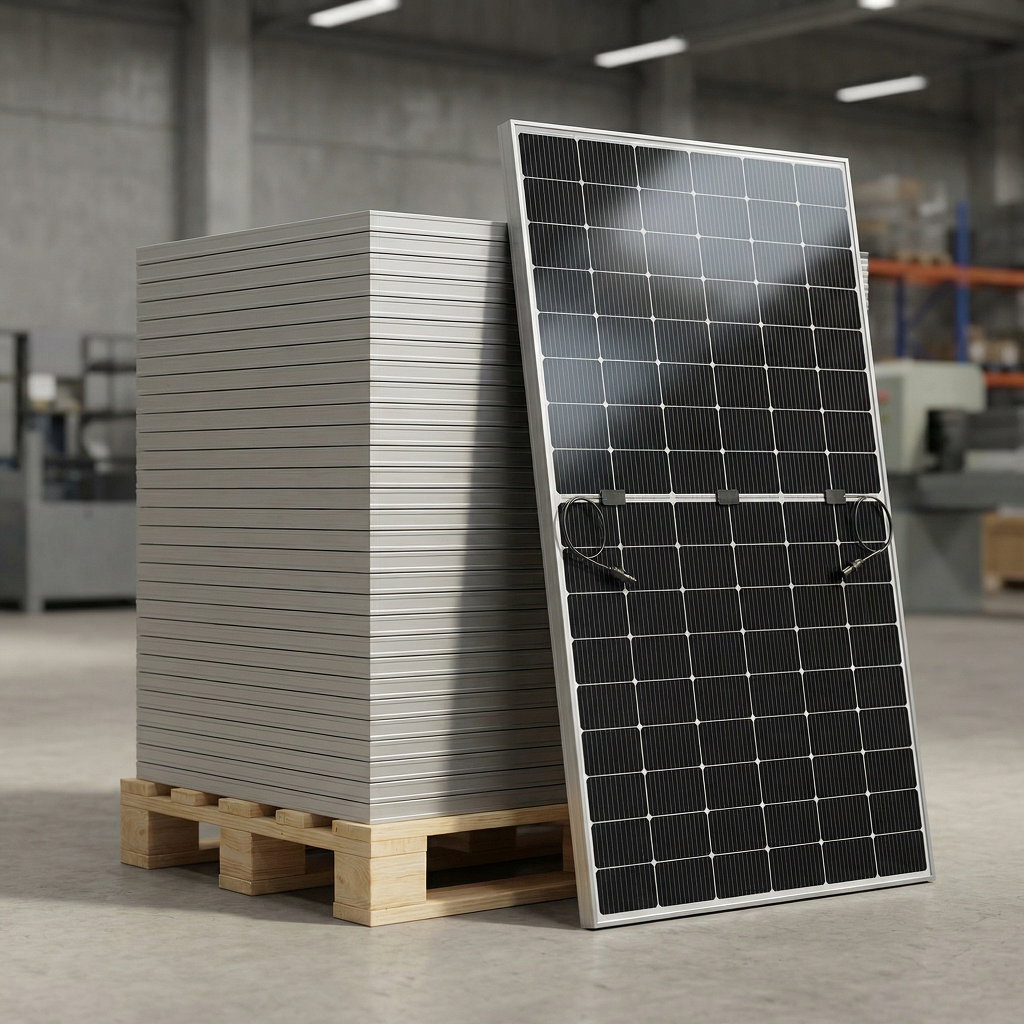

| Packaging | 36 pcs/pallet; 720 pcs/40’HQ |
About Seraphim:
Seraphim Energy Group is a globally recognized manufacturer of high-efficiency PV modules, certified under ISO9001, ISO14001, and ISO45001 quality systems. With advanced TOPCon technology and comprehensive product certifications, Seraphim modules are designed for durability, efficiency, and long-term energy production.
High-Performance 595W TOPCon Bifacial Module for Commercial & Utility Solar
The SRP-595-BTA-BG combines 23.03% efficiency, durable dual-glass construction, and strong bifacial energy gain potential. Ideal for large-scale solar projects focused on maximizing lifetime energy yield and lowering LCOE.
