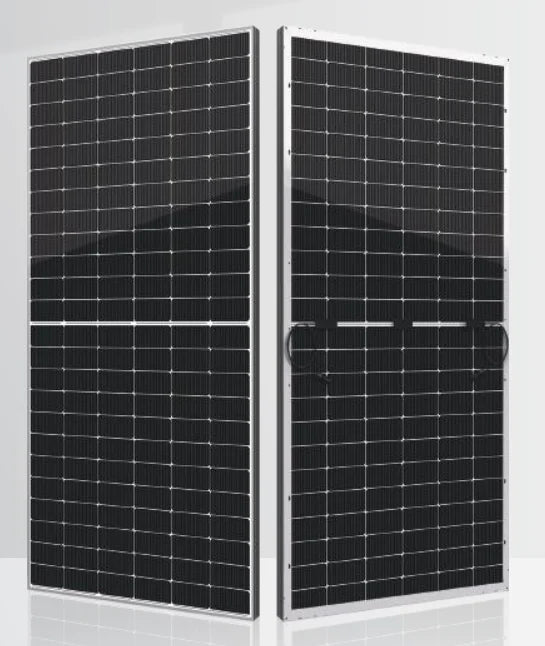

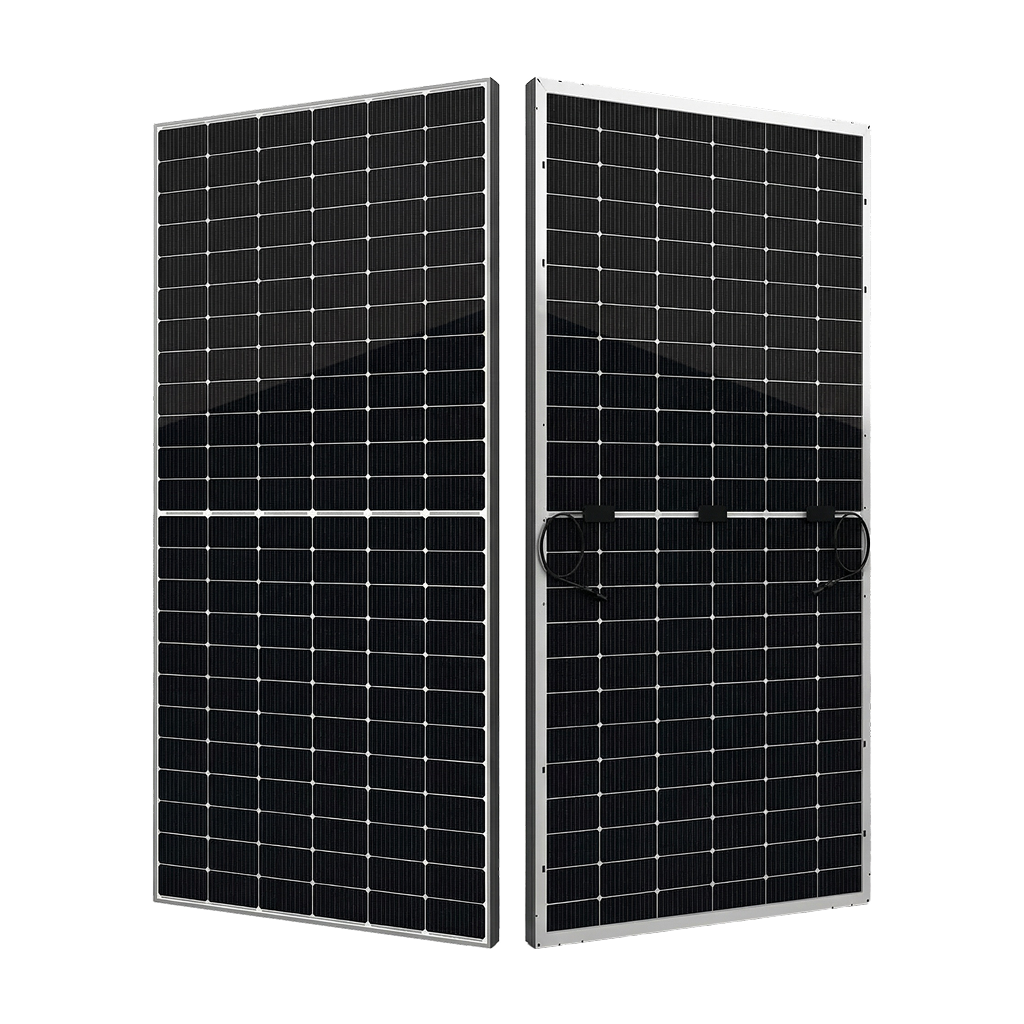

Seraphim 580W Sable TOPCon Bifacial Silver Frame SRP-580-BTA-BG (612 pcs)
MPN No: SRP-580-BTA-BG (612 pcs)
Expected ship date Jan 14 - 21
In Stock
$108,999.25
Seraphim 580W Sable TOPCon Bifacial Silver Frame SRP-580-BTA-BG (612 pcs)
Seraphim 580W Sable TOPCon Bifacial Silver Frame SRP-580-BTA-BG (612 pcs)
Regular price
$108,999.25
$187.92/watt
New
LESS THAN 50
Seraphim 580W Sable TOPCon Bifacial Silver Frame SRP-580-BTA-BG (612 pcs)
Seraphim 580W Sable TOPCon Bifacial Silver Frame SRP-580-BTA-BG (612 pcs)
Available
MPN No: SRP-580-BTA-BG (612 pcs)
Regular price
$108,999.25
$187.92/watt
Expected ship date Jan 14 - 21
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Data Sheet
Regular price
$108,999.25
Seraphim 580W Sable TOPCon Bifacial Silver Frame SRP-580-BTA-BG (612 pcs)
MPN No:
SRP-580-BTA-BG (612 pcs)
Expected ship date Jan 14 - 21
Seraphim 580W Sable TOPCon Bifacial Silver Frame SRP-580-BTA-BG (612 pcs)
The SRP-580-BTA-BG is a 580 W n-type TOPCon, glass-glass bifacial module built with 182 mm half-cells (144 pcs). With 22.45% module efficiency, 1,500 V DC system rating, 80%±5% bifaciality, and robust 2.0 mm/2.0 mm dual glass, it’s engineered for high energy yield and long service life on commercial rooftops and ground mounts.
Key Benefits
High Output & Efficiency: 580 W STC with 22.45% efficiency for dense arrays.
Bifacial Energy Gain: 80% ± 5% bifaciality supports meaningful rear-side contribution.
Durable Double-Glass Build: 2.0 mm AR-coated, low-iron glass on front and back; IP68 junction box.
Lower Degradation & Long Warranty: 25-year product and 30-year linear power output warranty.
High Loads: 5400 Pa front / 2400 Pa back mechanical load ratings.
Special Technology
n-Type TOPCon Half-Cells: Multi-busbar design improves low-light response and reduces losses; low temp coefficients (Pmax −0.29%/°C).
Warranty
25-Year Product Warranty · 30-Year Linear Power Output Warranty.
Best Uses
Commercial & Utility DG: Carports, ground mounts, and flat roofs seeking low LCOE with bifacial gain.
Specifications Table
| Specification | Data |
|---|---|
| Model | SRP-580-BTA-BG |
| Technology | n-type TOPCon, bifacial, glass-glass; 182 mm cells |
| Cell / Layout | 144 half-cells (2 × 72) |
| Rated Power (STC) | 580 W |
| Module Efficiency | 22.45% |
| Open-Circuit Voltage (Voc) | 52.10 V |
| Short-Circuit Current (Isc) | 14.07 A |
| Voltage at Pmax (Vmp) | 43.40 V |
| Current at Pmax (Imp) | 13.37 A |
| Max System Voltage | 1500 V DC |
| Max Series Fuse | 25 A |
| Temperature Coefficients | Pmax −0.29%/°C · Voc −0.25%/°C · Isc +0.046%/°C |
| NOCT | 45 ± 2 °C |
| Bifaciality | 80% ± 5% |
| Mechanical Loads | Front 5400 Pa / Back 2400 Pa |
| Dimensions (L × W × H) | 89.69 × 44.65 × 1.18 in |
| Weight | 70.55 lb |
| Front / Back Glass | 2.0 mm AR-coated, low-iron semi-tempered / 2.0 mm |
| Frame | Anodized aluminum alloy |
| Junction Box | IP68, 3 diodes |
| Leads / Connectors | 4.0 mm²; 250 mm (+) / 350 mm (−) or custom |
| Operating Temperature | −40 to +85 °C |

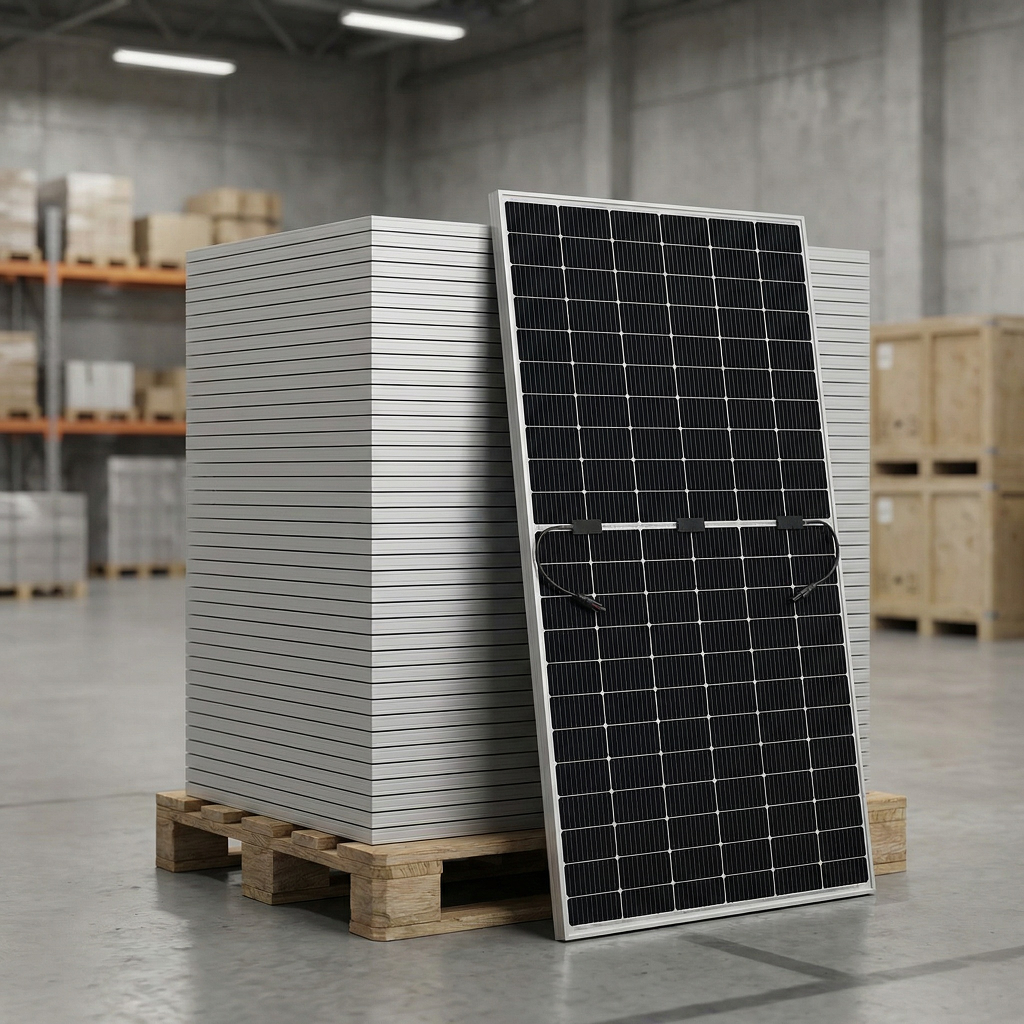

| Packing (40′HQ USA) | 36 pcs/pallet · 17 pallets · 612 pcs/container |
| Warranty | 25-Year Product · 30-Year Linear Power |
About Seraphim:
Seraphim is a leading solar module manufacturer founded in 2011, specializing in the research, production, and sales of high-efficiency photovoltaic modules. With a global presence in over 120 countries and a 13 GW production capacity, Seraphim is recognized as a Tier 1 solar brand known for quality, innovation, and reliability.
Why Buy From US Solar Supplier?
As an American founded company out of Kentucky, US Solar Supplier is committed to providing top-quality solar products, backed by the world’s leading manufacturers. Our promise is to get you the fairest price from the best brands that offer warranties you can count on.
We update our inventory daily with solar components that feature the latest technology. With a reputation for excellence and a dedication to customer satisfaction, we ensure that every product we sell meets the highest standards in the industry.
Need Assistance?
We’re here to help! If you have any questions or need more information before making your purchase, don’t hesitate to call us at 1-800-230-7004. Our knowledgeable and friendly team is ready to assist you with product details, installation advice, or the purchasing process.
Why Buy From Us?
Trusted Supplier: We work with Tier 1 manufacturers who stand behind their products.
Expert Support: Our team is here to guide you every step of the way.
Manufacturer-Backed Warranties: Enjoy peace of mind with the 25-year product warranty and a 30-year linear power output warranty directly from the manufacturer.
Easy and Secure Checkout: Your information is protected with top-notch security for a smooth, worry-free transaction.
Join the many satisfied customers who have trusted us for their solar needs. Add to your cart now to secure your high-efficiency solar panels and take the next step towards sustainable energy!
FAQs
Q: What is the power output of the SRP-580-BTA-BG panel?
The SRP-580-BTA-BG panel delivers 580 watts of power, making it a high-output solution for large residential, commercial, and utility-scale solar installations.
Q: Are SRP-580-BTA-BG panels suitable for areas with low sunlight?
Yes. The SRP-580-BTA-BG panels are engineered to perform efficiently in low-light conditions, including cloudy or hazy weather, as well as early morning and late afternoon sunlight.
Q: What kind of warranty is offered for the SRP-580-BTA-BG panel?
The SRP-580-BTA-BG includes a 25-year product warranty and a 30-year linear power output warranty, ensuring long-term reliability and consistent energy production.
Q: Are these panels compatible with different mounting systems?
Yes. SRP-580-BTA-BG panels are compatible with a wide range of standard roof-mounted and ground-mounted racking systems, making them easy to integrate into most solar designs.
Q: How durable are SRP-580-BTA-BG panels in harsh weather conditions?
These panels are built to withstand heavy snow loads, strong winds, and high temperatures. They feature durable tempered glass with an anti-reflective coating to enhance performance and longevity in demanding environments.
Q: Can SRP-580-BTA-BG panels help reduce energy costs?
Absolutely. With their high wattage and efficiency, SRP-580-BTA-BG panels generate more power per panel, helping to lower electricity bills and shorten system payback periods.
Q: How many panels do I need for my home or business?
System size depends on energy usage and available space. As a general estimate, a property using 10,000 kWh per year would require approximately 15–18 SRP-580-BTA-BG panels. A certified installer can provide an exact system design.
Q: How many panels are included in each pallet?
Each container contains 612 SRP-580-BTA-BG high-efficiency solar panels, providing convenience and cost efficiency for larger projects.
