SEG SEG-550-BMA-TB 550w Bifacial Silver Frame 144 Mono Cells Solar Module

SEG SEG-550-BMA-TB 550w Bifacial Silver Frame 144 Mono Cells Solar Module

$229.99
$0.41 / watt
-% $229.99
$0.41 / watt
500 IN STOCK
Leave a Review

SEG SEG-550-BMA-TB 550w Bifacial Silver Frame 144 Mono Cells Solar Module

SEG SEG-550-BMA-TB 550w Bifacial Silver Frame 144 Mono Cells Solar Module

SEG Solar
MPN No: SEG-550-BMA-TB
In Stock
$229.99
$0.41 / watt
-% $229.99
$0.41 / watt

1
2
3
4
5
6

Delivery

Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.

Estimated arrival on Dec 01 - 04 About shipping

Payment

We offer multiple secure payment options for your convenience

All SEG Solar products All Solar Modules products

View full details
$229.99
$0.41 / watt
-% $229.99
$0.41 / watt
SEG SEG-550-BMA-TB 550w Bifacial Silver Frame 144 Mono Cells Solar Module

SEG SEG-550-BMA-TB 550w Bifacial Silver Frame 144 Mono Cells Solar Module

SEG SEG-550-BMA-TB 550w Bifacial Silver Frame 144 Mono Cells Solar Module

MPN No:

SEG-550-BMA-TB

In Stock
Estimated arrival on Dec 01 - 04
$229.99
$0.41 / watt
-% $229.99
$0.41 / watt

Specifications

.PDF
Datasheet
Wattage
550 W
Cell Type
Monocrystalline
Number of Cells
144
Open-Circuit Voltage (VOC)
46.4 V
.PDF
Datasheet

SEG SEG-550-BMA-TB 550w Bifacial Silver Frame 144 Mono Cells Solar Module

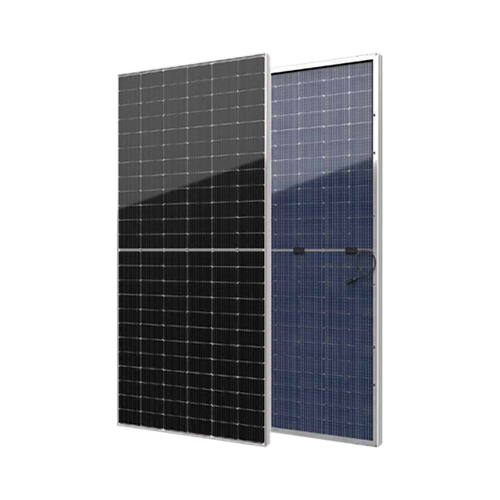

Introducing the cutting-edge SEG 550w SEG-550-BMA-TB Bifacial Solar Panel, a pinnacle of solar innovation designed for maximum efficiency and durability. With its advanced bifacial technology and robust silver frame, this panel captures sunlight from both sides, significantly boosting energy production.

  • Advanced bifacial technology enhances energy generation by utilizing both sides of the panel.
  • High-performance 144 mono-crystalline cells for superior efficiency.
  • Durable silver frame construction ensures longevity and resilience against harsh weather conditions.
  • Optimized for high-power output, making it ideal for both residential and commercial installations.
  • Seamless integration with various mounting systems for easy installation and compatibility.

Technology and Overview

The SEG 550w employs state-of-the-art bifacial and mono-crystalline cell technology to maximize power output and efficiency across a wide range of conditions.

Installation and Compatibility Overview

Designed for versatility, it is compatible with standard mounting systems, offering straightforward installation for ground mount, rooftop, and custom solar projects.

Benefits and Applications Overview

This panel is not only a powerhouse of energy production but also a step forward in reducing carbon footprint and lowering electricity bills. It's suitable for a variety of applications from residential to large scale commercial farms.



Specification
Details
MPN / Model No. SEG-550-BMA-TB
Maximum Power -Pmp(W) 550
Open Circuit Voltage -Voc(V) 49.7
Short Circuit Current -Isc(A) 14
Maximum Power Voltage -Vmp(V) 42.05
Maximum Power Current -Imp(A) 13.08
Module Efficiency STC-nm(%) 21.29
Power Tolerance(W) (0, +3%)
Maximum System Voltage 1500V DC
Maximum Series Fuse Rating  25 A
External Dimension 89.69 x 44.65 x 1.38 inches (2278 x 1134 x 35 mm)
Weight 27.0 kg ( 59.52 lbs)
Solar Cells PERC Mono 182 x 91mm(144 pcs)
Front Glass 3.2 / mm AR coating tempered glass / low iron
Frame Anodized aluminium alloy
Junction Box IP68 / 3 diodes
Cable Type / Length 12 AWG PV Wire (UL) /1200 mm
Mechanical Load(Front) 5400 Pa / 113 psf*
Mechanical Load(Rear)  3600 Pa / 75 psf*
Pmax Temperature Coefficient -0.35 %/°C
Voc Temperature Coefficient -0.27 %/°C
Isc Temperature Coefficient +0.05 %/°C
Operating Temperature  -40~+85 °C
Nominal Operating Cell Temperature (NOCT) 45±2 °C
Pieces per Pallet  31
