Schneider Electric General Duty Safety Switch 200A 240V D224NRB
D224NRB
Schneider Electric General Duty Safety Switch 200A 240V D224NRB

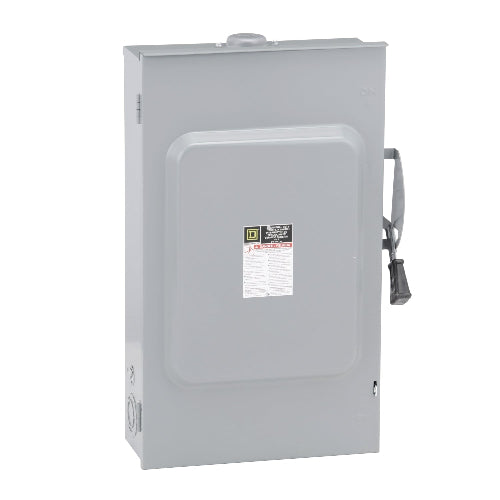

The Schneider Electric D224NRB is a general duty, fusible safety switch rated for 200A and 240V AC. With a factory-installed neutral and a NEMA 3R rainproof enclosure, it is ideal for outdoor residential and light commercial service disconnect applications. This robust switch supports high horsepower motors and offers up to 100 kA short circuit current rating when used with appropriate fuses.
Key Benefits
High Ampacity: Rated at 200A for larger load handling in residential or light commercial applications.
Factory-Installed Neutral: Pre-installed for simplified wiring in 3-wire configurations.
Outdoor Ready: NEMA 3R rated for rainproof protection in harsh environments.
UL Listed: Certified under UL E2875 for safety compliance and performance.
Special Technology
Versatile Motor Ratings: Supports up to 60 HP at 240V for 3-phase motors.
Short Circuit Rating: Rated up to 100 kA when paired with H, K, or R class fuses.
Sustainable Design: RoHS compliant, PVC-free, and packaged without single-use plastics.
Warranty
18-month limited warranty from Schneider Electric.
Best Uses
Service Entrances: Acts as a main disconnect for homes or buildings.
Outdoor Equipment: Reliable protection for external loads and motor circuits.
Large Residential or Small Commercial Loads: Suitable for high amperage systems requiring safety disconnection.
Specifications Table
| Specification | Data |
|---|---|
| Model | D224NRB |
| Product Type | Single Throw Safety Switch |
| Current Rating | 200 Amps |
| Voltage Rating | 240 VAC |
| Poles / Wires | 2 Pole / 3 Wire |
| Disconnect Type | Fusible |
| Neutral | Factory Installed |
| Enclosure | NEMA 3R (Rainproof) |
| Mounting | Surface |
| Connection Type | Lugs |
| Compatible Fuse Types | H, K, R |
| Short Circuit Rating | Up to 100 kA |
| Motor Ratings | 15 HP (1-phase), 25 HP / 60 HP (3-phase) @ 240V |
| Wire Size | AWG 6 – 250 kcmil Cu/Al |
| Tightening Torque | 275 lbf·in |
| Dimensions (W × H × D) | 19 × 29.25 × 8.5 in |
| Net Weight | 53.51 lbs |
| GTIN | 785901460763 |
| Country of Origin | USA |
| Environmental Compliance | RoHS, REACh, Prop 65, PVC-free |
| Warranty | 18 Months |
