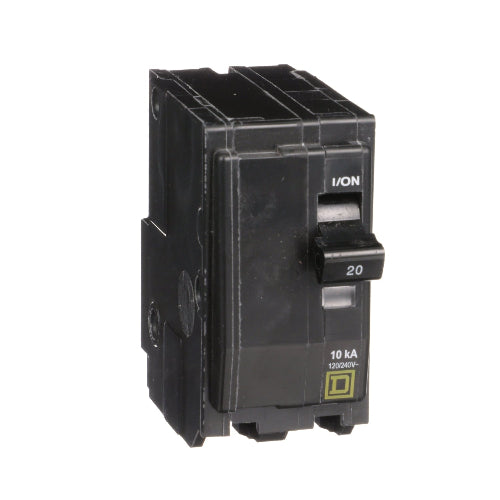

Schneider Electric 20A 2-Pole Miniature Circuit Breaker QO220
Schneider Electric 20A 2-Pole Miniature Circuit Breaker QO220
Schneider Electric 20A 2-Pole Miniature Circuit Breaker QO220
Schneider Electric 20A 2-Pole Miniature Circuit Breaker QO220
We offer multiple secure payment options for your convenience
We offer multiple secure payment options for your convenience
Schneider Electric 20A 2-Pole Miniature Circuit Breaker QO220
QO220
Schneider Electric 20A 2-Pole Miniature Circuit Breaker QO220
The Schneider Electric QO220 is a plug-in style miniature circuit breaker designed for use in QO load centers and panelboards. This 2-pole breaker supports 120/240 VAC operation, offers a 10kA interrupt rating, and is well-suited for residential and light commercial protection needs.
Key Benefits
High Interrupt Capacity: Rated at 10,000 A for short-circuit protection at 120/240 VAC.
Compact Form: Occupies two panel spaces for streamlined installation.
Flexible Compatibility: Accepts copper or aluminum conductors (AWG 14–8).
HACR Rated: Approved for HVAC applications.
Special Features
Plug-In Mounting: Simplifies breaker installation in QO panels.
Pressure Plate Terminals: Provide secure wiring connections with proper torque.
Certified Safety: UL Listed and CSA certified for reliable performance.
Warranty
Backed by an 18-month limited manufacturer’s warranty.
Best Uses
Residential Load Centers: Designed for standard 2-pole protection in QO systems.
Light Commercial Panels: Ideal for HVAC and multi-circuit applications.
Retrofit or Upgrade: Compatible with legacy and current QO panelboards.
Specifications Table
| Specification | Data |
|---|---|
| Model | QO220 |
| Product Type | Miniature Circuit Breaker |
| Range | QO |
| Poles | 2 |
| Current Rating | 20 A |
| Voltage Rating | 120/240 V AC |
| Interrupt Rating | 10,000 A @ 120/240 V AC |
| Mounting Type | Plug-in |
| Circuit Breaker Type | Standard |
| Electrical Connection | Pressure Plate |
| Wire Size | AWG 14–8 Cu/Al |
| Tightening Torque | 35.4 lbf-in (4 N·m) |
| Height | 3.0 in |
| Width | 1.5 in |
| Depth | 2.9 in |
| Net Weight | 0.5 lbs |
| Ambient Rating | 104°F (40°C) |
| Certifications | UL Listed, CSA |
| GTIN | 785901400363 |
| Country of Origin | Mexico |
| RoHS / REACh Compliance | Compliant |
| Warranty | 18 Months |
