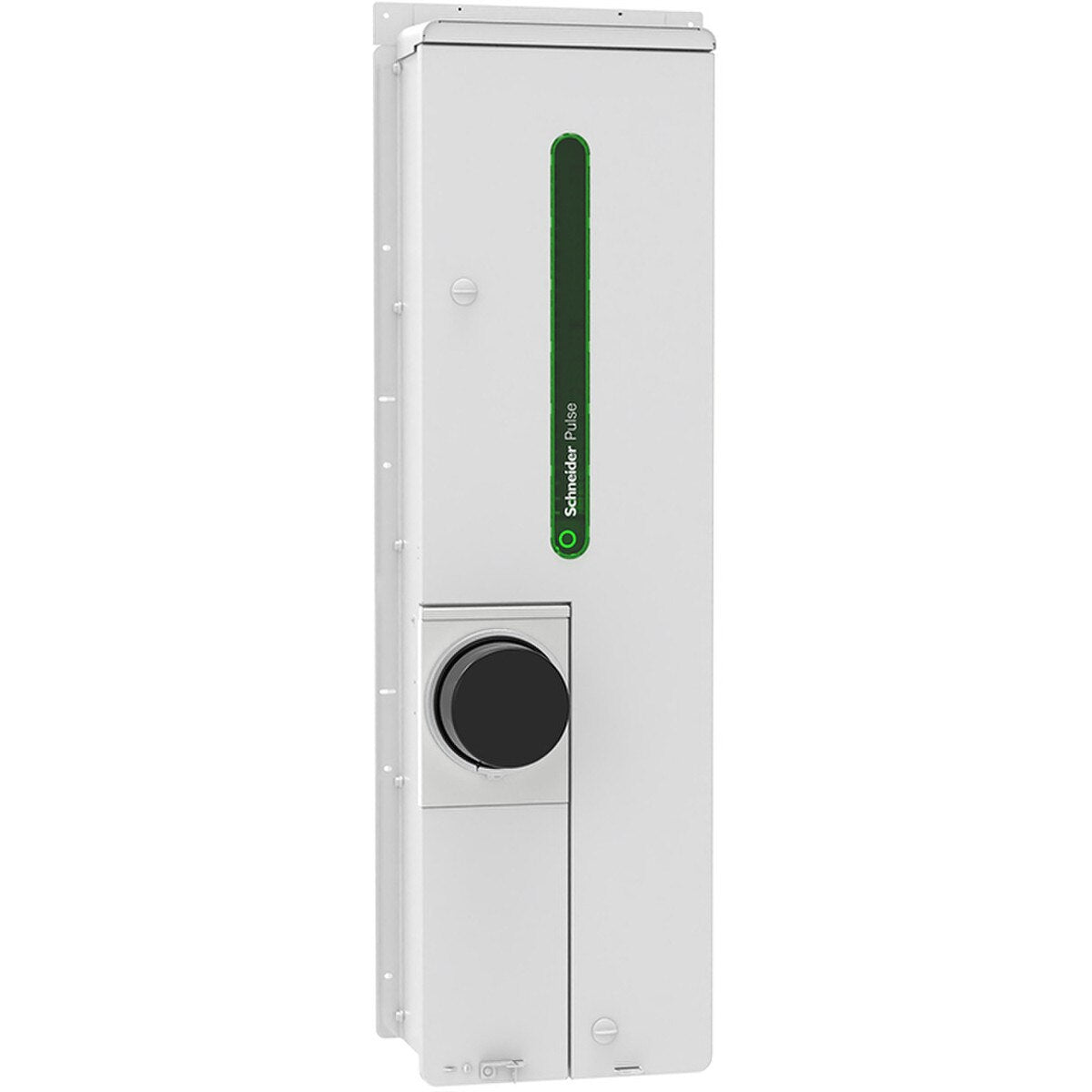

Schneider Electric 200A Pulse CSED with Backup Control CC18X18M200PCZ
Schneider Electric 200A Pulse CSED with Backup Control CC18X18M200PCZ
Schneider Electric 200A Pulse CSED with Backup Control CC18X18M200PCZ
Schneider Electric 200A Pulse CSED with Backup Control CC18X18M200PCZ
Delivery
Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.
Payment
We offer multiple secure payment options for your convenience
Schneider Electric 200A Pulse CSED with Backup Control CC18X18M200PCZ
CC18X18M200PCZ
Schneider Electric 200A Pulse CSED with Backup Control CC18X18M200PCZ
The Schneider Electric CC18X18M200PCZ is a fully integrated Pulse Energy Center with a built-in 200A backup control module, 46 available circuits, and 12-space QO breaker panel. Designed for solar and battery-ready installations, it simplifies whole-home backup with a pre-wired, scalable, and semi-flush mountable configuration for modern smart homes.
Key Benefits
All-in-One Energy Center: Combines backup control, metering, circuit breakers, surge protection, and monitoring in a single NEMA 3R enclosure.
Smart Home Integration: Includes Wiser Energy advanced kit and supports Schneider Home app for energy monitoring and optimization.
High Circuit Capacity: Supports up to 54 circuits (46 available) and 44 breaker spaces (36 available), ideal for large homes or retrofit applications.
Safe and Certified: UL 67 and CSA listed, with Type 2 SPD and SE monitoring hardware installed.
Special Technology
Plug-on Neutral Architecture: Simplifies wiring with modern breaker interface for cleaner installations.
Smart Breaker Support: Includes multiple pre-installed 2-pole breakers for critical load and backup management.
Environmentally Conscious Design: EU RoHS compliant, REACh declaration available, and designed under Schneider’s circularity program.
Warranty
Backed by Schneider Electric's standard product warranty. Refer to local distributor for warranty details.
Best Uses
Whole-Home Backup Systems: Central hub for homes with solar, batteries, and generator backup.
Smart Energy Homes: Ideal for homeowners wanting real-time energy use data and control via mobile app.
New Construction & Retrofits: Semi-flush mounting with overhead/underground service flexibility.
Specifications Table
| Specification | Data |
|---|---|
| Model | CC18X18M200PCZ |
| Product Type | All-in-One Energy Center |
| Service Rating | 200A |
| Voltage | 120/240V |
| Breaker Spaces | 44 total / 36 available |
| Circuits | 54 total / 46 available |
| Short-Circuit Current | 22 kA |
| Included Equipment | Backup Control Module, 2P 15A and 2P 125A breakers, SPD Type 2, SE Monitor, Wiser Energy kit |
| Mounting | Semi-flush, outdoor rated |
| Enclosure Rating | NEMA 3R |
| Bus Rating | 225A |
| Wire Range (Line Side) | AWG 4 to 300 kcmil (Al/Cu) |
| Wire Range (Ground) | AWG 12 to 2/0 (Al/Cu) |
| Service Feed Location | Overhead/Underground (3-wire) |
| Connection Type | Plug-on neutral |
| Color | Matte White |
| Dimensions (W × H × D) | 17.01 × 52.56 × 11.38 in |
| Weight | 120 lbs |
| Certifications | UL 67, CSA |
| GTIN | 047569100017 |
| RoHS Compliance | Yes (with exemptions) |
| Environmental Rating | California Prop 65 warning for lead |
