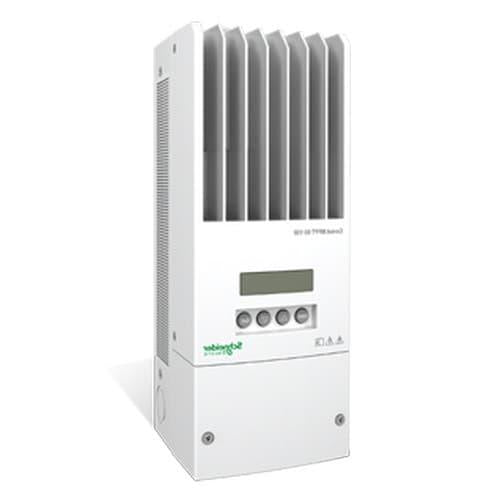

Schneider Conext XW-MPPT60-150 60A MPPT RNW86510301 Solar Charge Controller
Schneider Conext XW-MPPT60-150 60A MPPT RNW86510301 Solar Charge Controller
Schneider Conext XW-MPPT60-150 60A MPPT RNW86510301 Solar Charge Controller
Schneider Conext XW-MPPT60-150 60A MPPT RNW86510301 Solar Charge Controller
Delivery
Shipping disclaimer: US Solar Supplier works hard to offer the most competitive shipping rates possible. Shipping is auto calculated. If you have questions, let's work together directly! Please reach out to arrange case based logistics. Contact our team at sales@ussolarsupplier.com or by chat during business hours 9 am to 5 pm EST.
Payment
We offer multiple secure payment options for your convenience
Specifications
Schneider Electric Conext XW-MPPT60-150 60A Solar Charge Controller (RNW86510301)
The Schneider Conext™ XW-MPPT60-150 is a high-performance 60A solar charge controller designed to optimize the charging of battery banks from photovoltaic (PV) arrays. With advanced Maximum Power Point Tracking (MPPT) technology, it ensures maximum energy harvest in all weather conditions while seamlessly integrating with Conext XW and Conext SW inverter/chargers.
Engineered for off-grid, grid-tie with backup, and hybrid applications, the XW-MPPT60-150 offers flexible system design, easy monitoring, and reliable performance trusted worldwide.
Key Features & Technical Highlights
-
60A Output Current – Handles up to 60A of charge current for large PV arrays.
-
MPPT Technology – Actively tracks the optimal operating point of the PV array for maximum power harvest.
-
High PV Voltage Input – Supports up to 150VDC input, allowing long PV string lengths and reduced wiring costs.
-
Battery Bank Compatibility – Configurable for 12, 24, 36, 48, or 60V battery banks.
-
Flexible Applications – Works in off-grid, grid-tied, and backup power systems.
-
Conext System Integration – Seamless operation with Schneider Conext XW / SW inverter/chargers and monitoring systems.
-
Built-in Data Monitoring – Onboard LCD screen provides system status, configuration, and performance data.
-
Network Ready – Xanbus-enabled for advanced communication with other Conext devices.
-
High Efficiency – >97% peak efficiency reduces energy losses.
Product Applications
-
Off-grid solar power systems
-
Grid-tied with battery backup systems
-
Residential, commercial, and light industrial PV installations
-
Remote cabins, telecom, and agricultural solar projects
-
Hybrid renewable systems with wind, diesel, or other power sources
Warranty
-
5-Year Limited Warranty (standard)
-
Optional 10-Year Extended Warranty available through Schneider Electric
Product Specifications
| Category | Specification |
|---|---|
| Model | Schneider Conext XW-MPPT60-150 (RNW86510301) |
| Charge Controller Type | MPPT (Maximum Power Point Tracking) |
| Maximum Output Current | 60 Amps |
| Nominal Battery Voltage | 12 / 24 / 36 / 48 / 60 V (configurable) |
| Maximum PV Array Voltage | 150 VDC |
| PV Array Power (Max) | Up to 3.5 kW (at 60V battery), scalable with multiple controllers |
| Efficiency | Peak > 97% |
| Display | Integrated LCD screen for status, configuration, and monitoring |
| Communications | Xanbus-enabled (networking with Conext XW/SW systems, monitors, and accessories) |
| Dimensions (HxWxD) | 41 x 14 x 13 cm (16.2 x 5.5 x 5.1 in) |
| Weight | 5.5 kg (12 lbs) |
| Certifications | UL1741, CSA 107.1, FCC Part 15 Class B |
| Operating Temperature | –25 °C to +60 °C (–13 °F to +140 °F) |
| Warranty | 5 years (extendable to 10 years) |
Why Choose the Schneider Conext XW-MPPT60-150?
-
Proven reliability and global Schneider Electric support
-
Ideal for large residential or commercial systems
-
Scalable: multiple controllers can be networked for higher power output
-
Long PV string capability reduces installation costs
