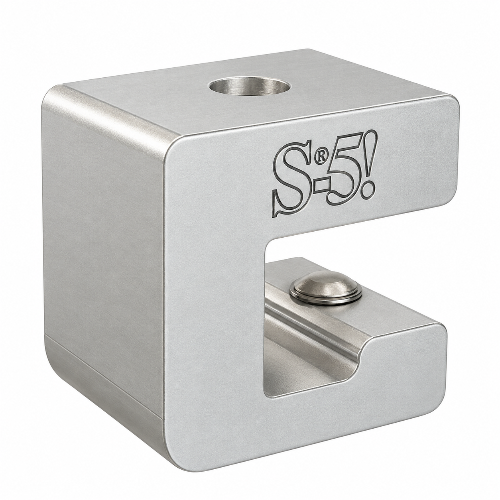

S-5! S-5-CP Solar Carport Attachment Clamp for Rail-Less PV Mounting S-5-CP

The S-5! S-5-CP is a specialized solar attachment clamp engineered for mounting photovoltaic modules to purlin-constructed carport canopies. The “CP” designation stands for carport, and the attachment is designed to pair with the S-5! PVKIT solar mounting solution to create a streamlined rail-less DirectAttach PV system.

Unlike conventional mounting systems that require rails to be added above an open-framed carport structure, the S-5-CP attaches directly to compatible structural purlins. This approach can reduce material requirements, installation labor, and additional structural weight while providing a purpose-built attachment point for PV modules.

The clamp installs from below the purlin using a bottom-oriented setscrew and features a non-penetrating attachment design, eliminating the need to drill holes through the structural member. An optional EPDM gasket can also be used between modules to help minimize water infiltration through the PV array.

Key Technology

• Purpose-Built for Solar Carports
  Designed specifically for mounting PV modules on purlin-constructed carport canopies.

• Rail-Less DirectAttach Design
  Pairs with the S-5! PVKIT to create a rail-less mounting solution, eliminating the need to add conventional mounting rails to compatible open-framed carport structures.

• Non-Penetrating Attachment
  Attaches to compatible structural members without drilling holes or perforating the purlin, helping maintain structural integrity while allowing installation adjustments.

• Bottom-Oriented Setscrew
  The S-5-CP installs from underneath the purlin using a bottom-oriented setscrew, simplifying access and helping improve wire-management flexibility.

• Compatible with S-5! PVKIT
  Designed to pair directly with the S-5! PVKIT rail-less solar mounting solution for securing PV modules to the attachment.

• Reduced Mounting Materials
  Eliminating traditional rails can reduce the amount of mounting material required, decrease added structural weight, and simplify installation.

• Aluminum Clamp Construction
  The S-5-CP attachment clamp is manufactured from aluminum and is designed for compatibility with many common metal structural shapes.

• 300 Series Stainless Steel Hardware
  All hardware included with the S-5-CP is manufactured from 300 series stainless steel for durable outdoor performance.

• Optional Water-Resistant EPDM Gasket
  An optional EPDM gasket can be installed between PV modules to help minimize water infiltration through the module gaps.

• Made in USA
  The manufacturer literature identifies the S-5-CP as Made in USA.

Best Uses

• Solar Carport Installations
  Ideal for adding photovoltaic modules to compatible purlin-constructed carport structures.

• Rail-Less PV Mounting
  Designed for projects seeking to eliminate conventional mounting rails and use an S-5! DirectAttach configuration.

• Open-Framed Carport Structures
  Well suited for compatible open-framed structures where PV modules can be attached directly to the structural purlins.

• Non-Penetrating Structural Attachment
  Useful where avoiding drilled holes or perforations in the structural members is an important design consideration.

• Projects Requiring Reduced Structural Weight
  Rail-less construction helps minimize additional mounting-system material and weight compared with conventional rail-based configurations.

Product Specifications

Purpose-Built Rail-Less Attachment for Solar Carports

The S-5! S-5-CP combines a non-penetrating purlin attachment, rail-less DirectAttach design, PVKIT compatibility, aluminum construction, 300 series stainless steel hardware, bottom-access installation, and optional EPDM water management in a purpose-built mounting solution for solar carport structures.
